Advanced Industrial Automation
17

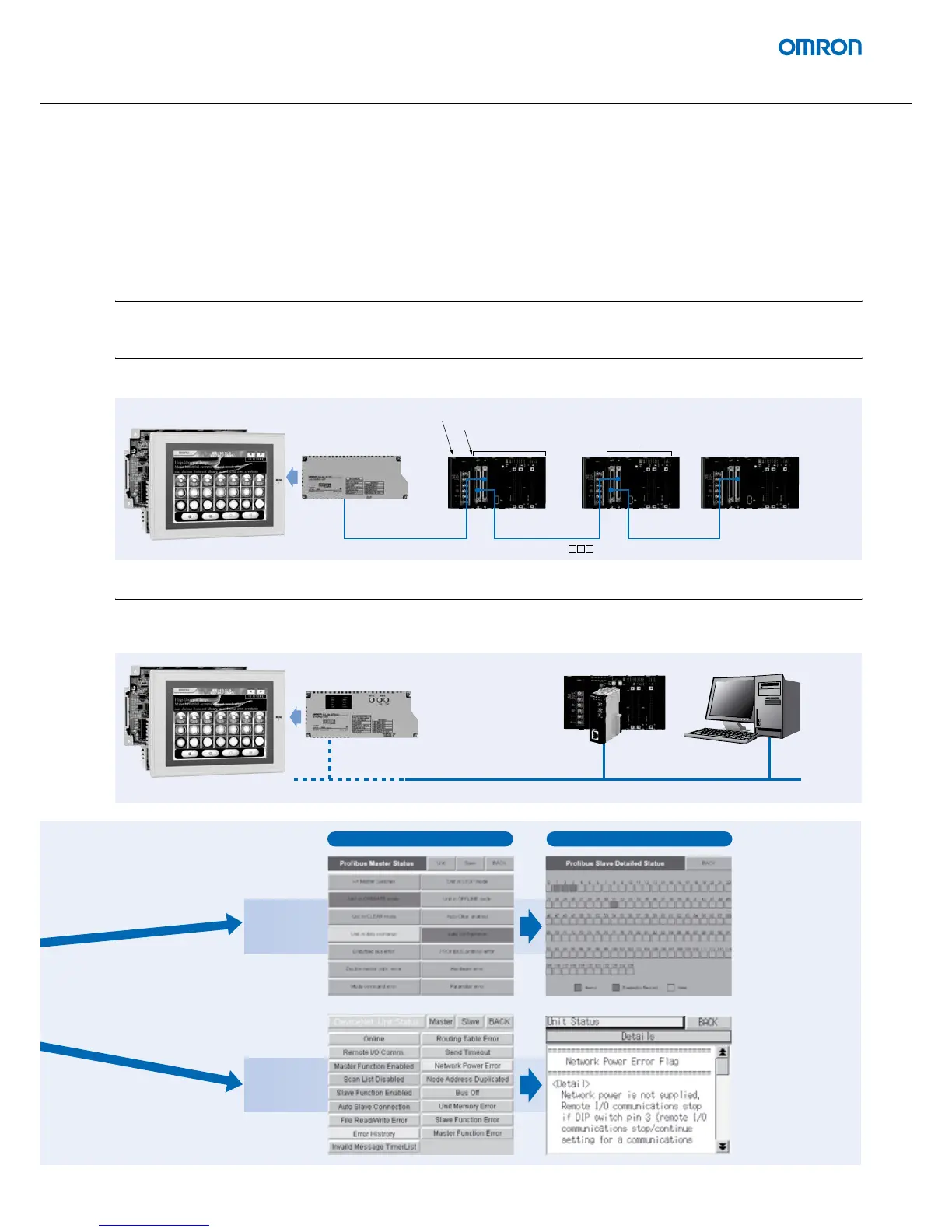

Expansion Units
For the Sysmac One series we have three different expansion units available. It is only possible to use one expansion unit on a single Sysmac
One model. Two expansion units are providing extra network possibilities on Controller Link and Ethernet. The third expansion unit allows you to
connect the standard CJ1 units to the Sysmac One model.
Controller Link Unit (NSJW-CLK21-V1)
High-speed, large-capacity data link
The PLC data link function can be used to provide a high-speed, large-capacity data link between Controllers over the Controller Link network.
I/O Control Unit (NSJW-IC101)
Easily connect Special I/O Units and CPU Bus Units
Used to mount Motion Control Units and other Special I/O Units or CPU Bus Units to the NSJ-series Controller, for excellent expandability.
Note: Used to mount Motion Control Units and other Special I/O Units or CPU Bus Units to the NSJ-series Controller, for excellent expandability.
Ethernet Unit (NSJW-ETN21)
Full use of versatile Ethernet functions
The Ethernet expansion unit provides extra Ethernet functions like sending/receiving messages, using CMND instruction and sending/receiving
E-mails.
I/O Interface Unit
CJ1W-II101
10 Units max.
CJ-series Basic I/O Unit
CJ-series Special I/O Unit
CJ-series CPU Bus Unit
I/O Control Unit
NSJW-IC101
3 Racks max. (3 x 10 Units max.)I/O Connection Cable (CS1W-CN1 )
Power Supply
Unit
Ethernet Unit
NSJW-ETN21
Ethernet 100BASE-TX
CS/CJ-series PLC
•FINS communications
•FTP server
•E-mail
•SMTP clients, etc.
Controller
Troubleshooter
Network
Troubleshooter
The error details are displayed.
The necessary counter measure is displayed.
To Next Page
