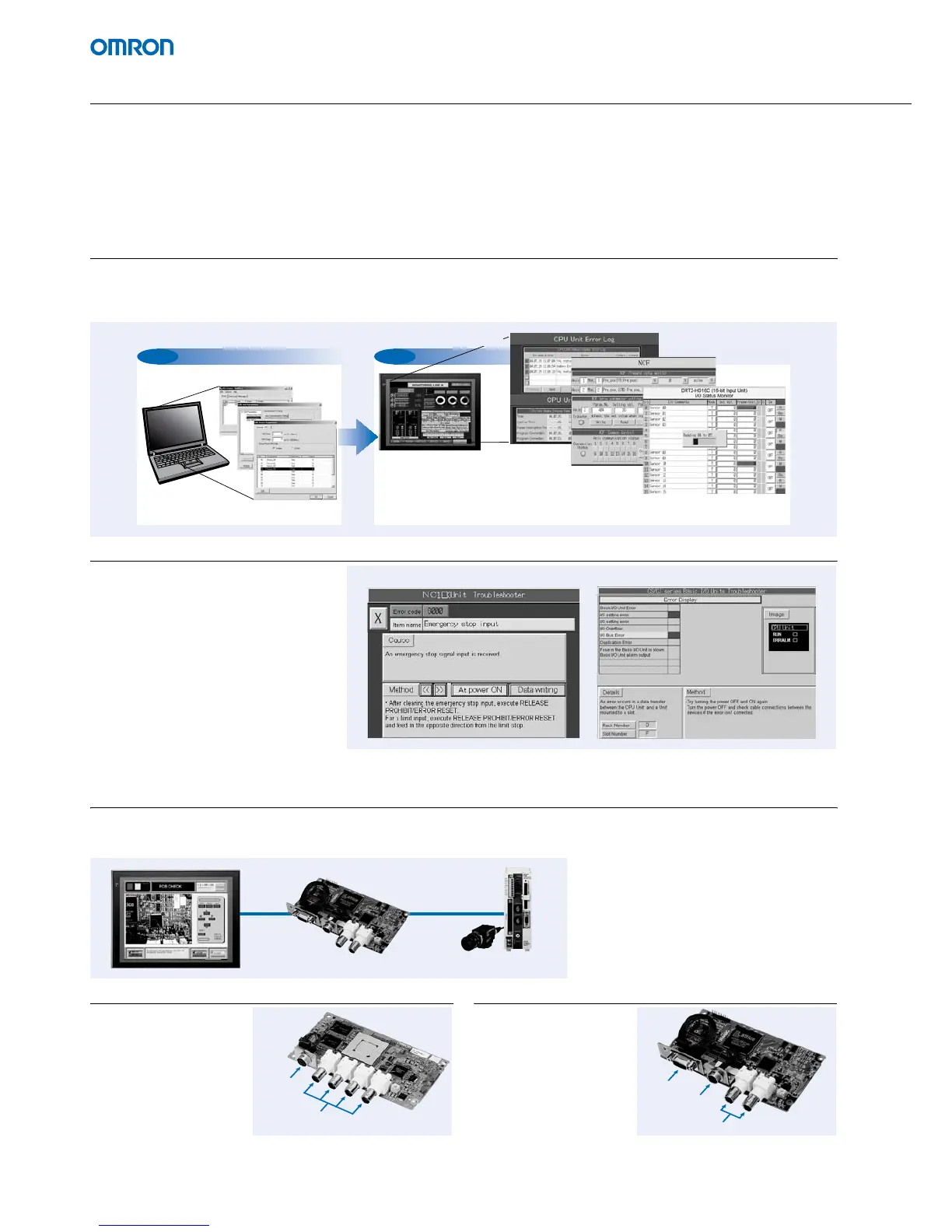

Using Smart Active Parts: just a few simple steps
Dramatically reduces the effort required to create ladder programming and screens.
A library with more than 2,000 Smart Active Parts is available, which can directly access OMRON PLCs and other devices. You can drag & drop
Smart Active Parts in an application in just 4 simple steps.
With Smart Active Parts you can for instance monitor device errors in understandable text, donwload parameters to devices and check Network
statuses without the need for a computer with software tools.
The SAP library also provides PLC I/O Unit Troubleshooter SAPs
Troubleshooter Smart Active Parts are available
to troubleshoot specific PLC units. When an er-
ror occurs in an unit, the Troubleshooter SAP
provides an easy-to-understand explanation of
the cause of the error as well as which counter
measures to take to resolve the error.
In this way you can quickly resolve errors on-
site even without using documentation.
260,000-colour Video Display
Display the production steps on the HMI via optional video inputs!
Two kinds of video interfaces are available to connect to various applications. Provides compatibility with OMRON Vision Sensors (F150, F160,
and F250) in addition to video and CCD camera connections. The NS-series HMI contain some useful functions like capturing and browsing images
and operating the Console functions in the vision sensor.
NS-CA001 Video Input Unit
Four video inputs or CCD
cameras can be connected
and up to four images can be
displayed simultaneously if
the image size is
320x240 pixels.
NS-CA002 RGB/Video Input Unit
There is an analog RGB input
terminal in addition to the two
video input terminals. Either
the video signals or the
analog RGB signal can be
displayed on the NS-series
HMI.
Computer support tools
PLC CPU Unit
monitoring
screen
From To
DeviceNet
monitoring screen
NCF Unit
setting screen
Example screens using support tool objects (Tool Function SAP Library)
Troubleshooter SAP for a Position Control Unit Troubleshooter SAP for Basic I/O Unit
NS
RGB/Video Input Unit Vision Sensor
Console
Camera
NS-CA001
Console
RGB
Camera
NS-CA002
