Connecting with
CPIE PLC
Designing Screens
Preparation
3
FA Integrated Tool Package
CX-One Ver.4.x (4.03 or higher)
The CX-One is a package that integrates the
Support Software for OMRON PLCs and
components.
CX-One Lite Ver.4.x (4.03 or higher)
The CX-One Lite is a subset of the complete CX-
One package that provides only the Support
Software required for micro PLC applications.
Select from two packages: Included in both packages of CX-One Lite Ver.4 and CX-
One Ver.4.
* It cannot be purchased individually.
NV-Designer Ver.1.1 or higher
Screen designing software for NV
Programming software for PLC
Included in a package of CX-One Lite Ver.4.
Micro PLC Edition CX-Programmer Ver.9.
Included in a package of CX-One Ver.4.
CX-Programmer Ver.9
Select from two types of software:

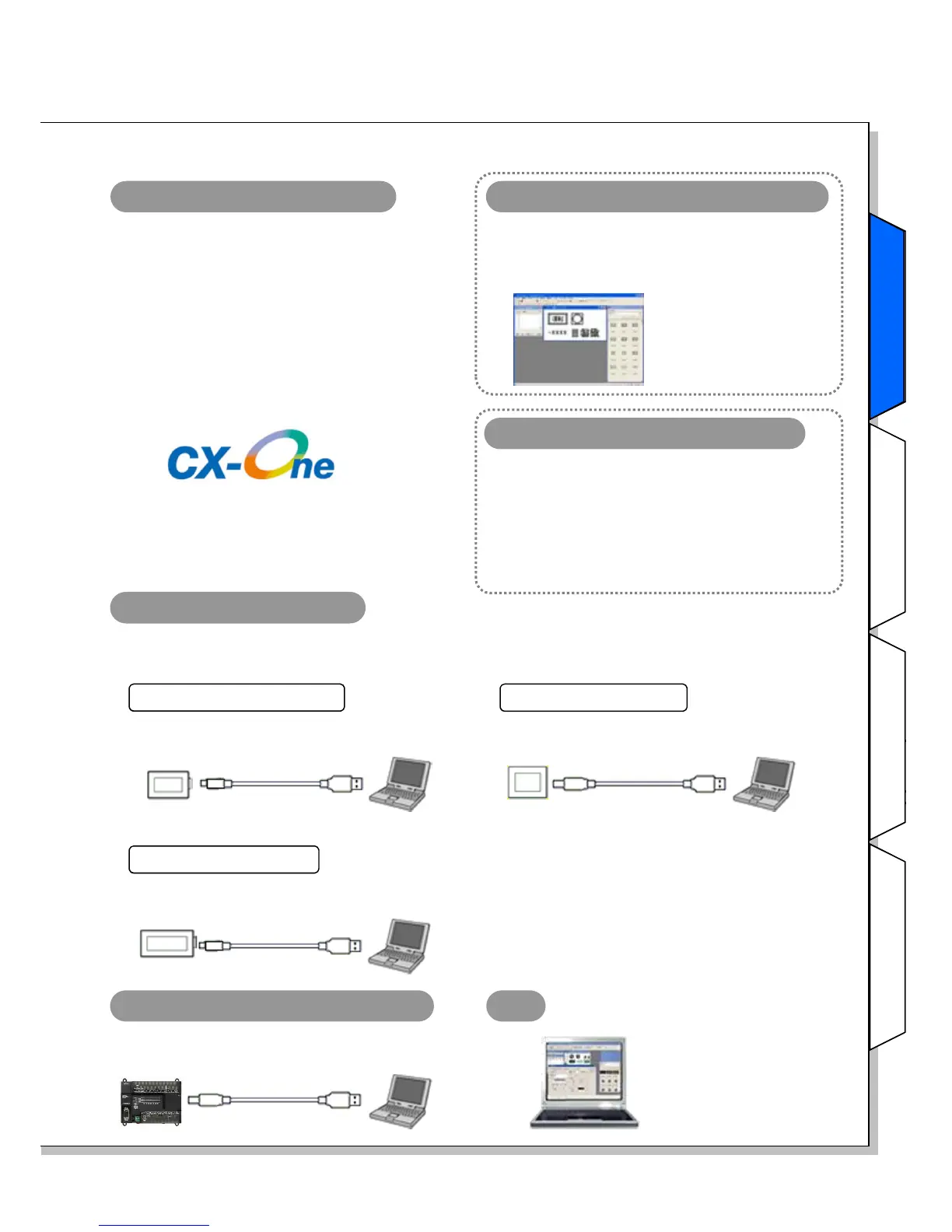

NV-PC connection cable
Use a commercially available USB cable (Mini-B) to connect the NV3W-V1 or NV4W to a PC.
Use a commercially available USB cable (Type B) to connect the NV3Q to a PC.
Preparation
PC
Use a commercially available USB cable.
CP1E PLC-PC connection cable
CP1E
Type B Type A
NV4W
Connecting an NV4W
Mini-B Type A
Use a commercially available USB cable (Mini-B).
* Supporting Windows 7
(32-bit version)!
NV3Q
Connecting an NV3Q
Use a commercially available USB cable (Type B).
Type B Type A
NV3W-V1
Connecting an NV3W-V1
Mini-B Type A
Use a commercially available USB cable (Mini-B).
Note: The NV-Designer
Ver.2.0 or higher is
required to use the
NV3W-V1.
To Next Page
