4 Installation and Wiring

4 - 12

NX-series Position Interface Units User’s Manual (W524)

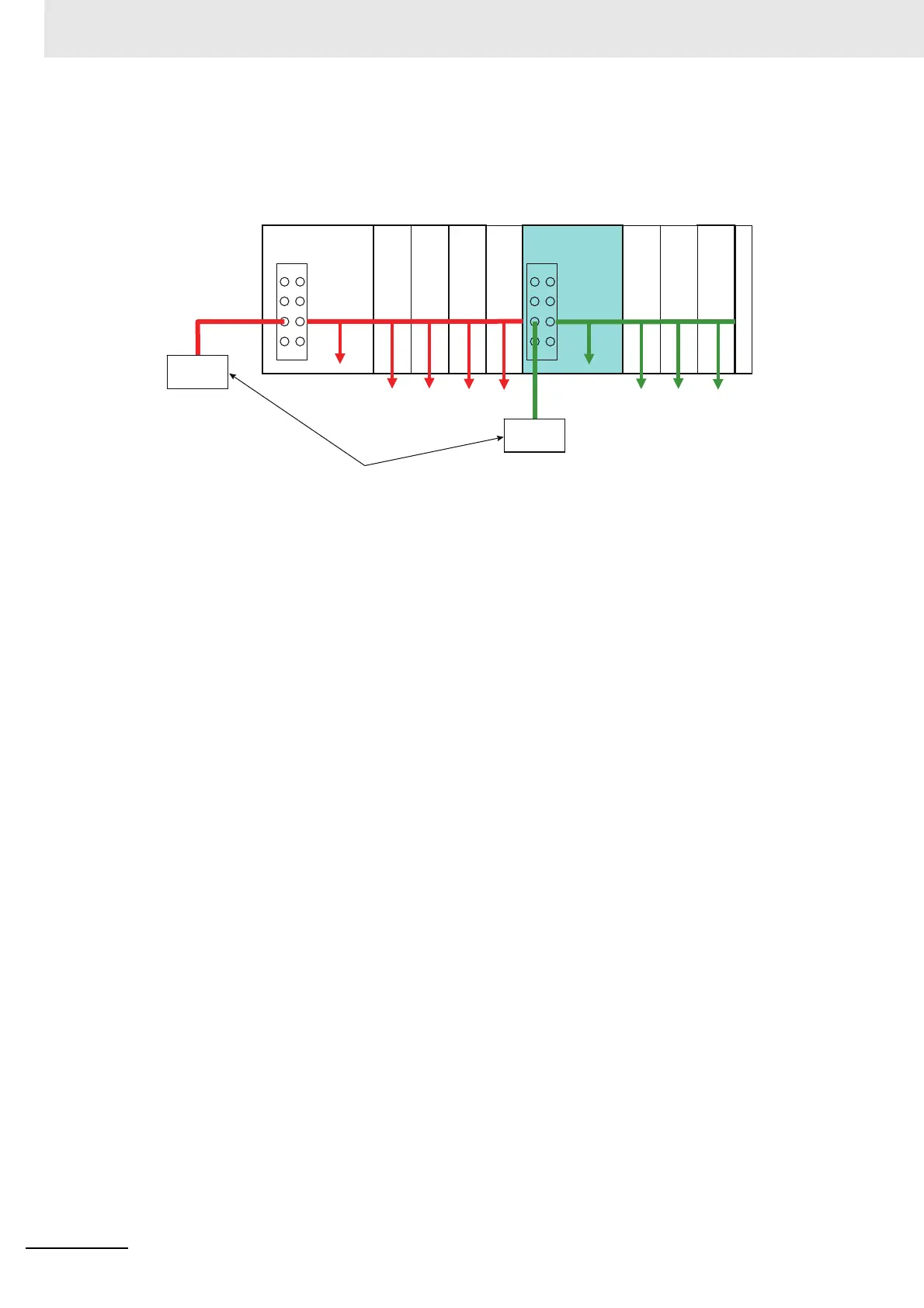

 Separating the I/O Power Supply

• The Additional I/O Power Supply Unit is used when the connected external devices have different

I/O power supply voltages.

• The Additional I/O Power Supply Unit is used to separate the power supply systems.

The NX Unit power supply of the Additional I/O Power Supply Unit is connected to the NX Unit on the

left through the NX bus connector.

I/O power

supply

I/O power

supply

• When different I/O power supply voltages are used.

• To separate the power supply systems.
