Omron NX-SID800 Network Connection Guide

5 Target Devices and Device
7

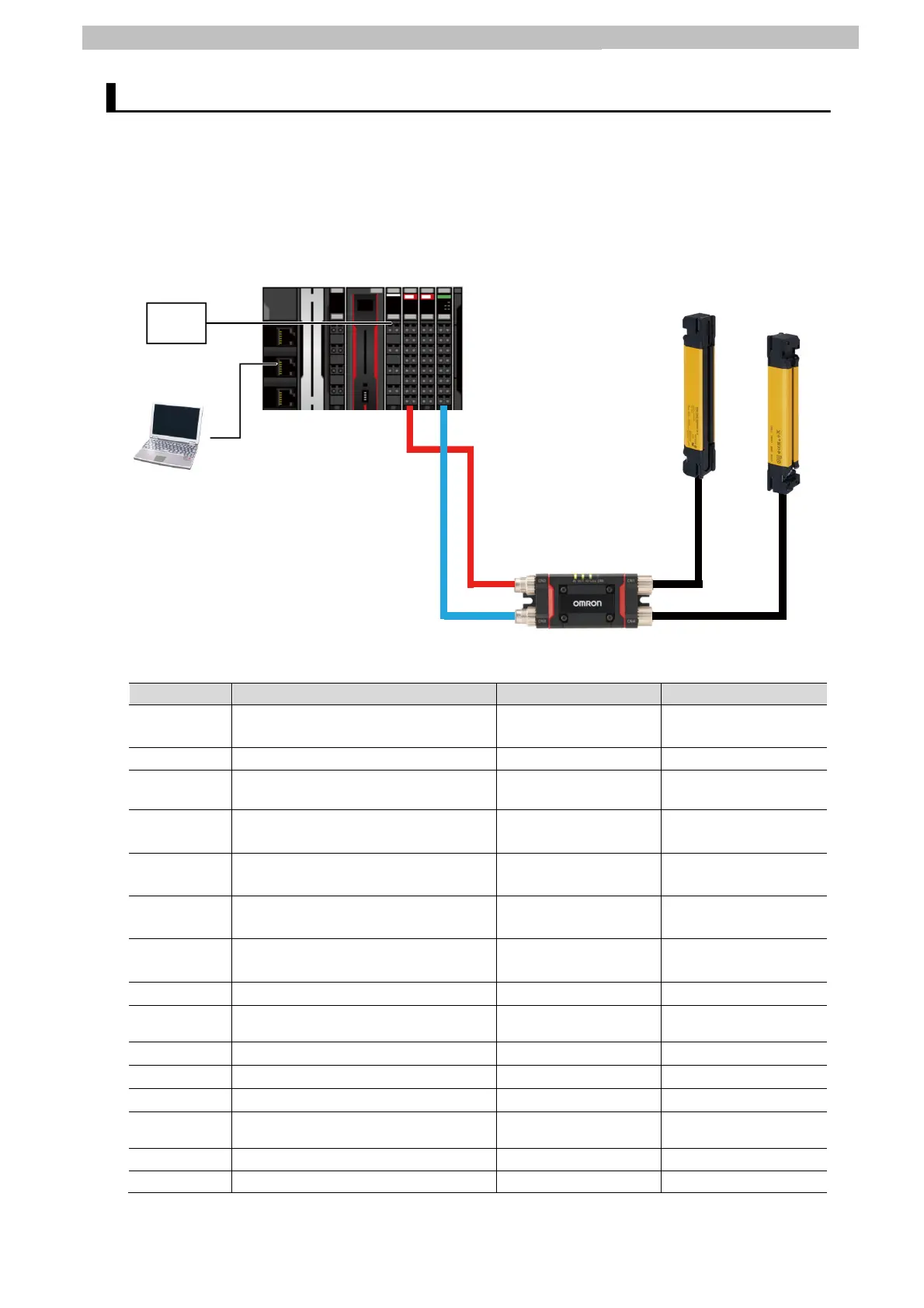

The following shows the device configuration for reproducing the connection procedure described
in this document.
Manufacturer Name Model Version
OMRON NX-series CPU Unit NX102-1000 Version 1.40 or later
--- Power supply for controller (24 VDC) ---
---
OMRON NX series
Safety CPU Unit
NX-SL5500 Version 1.3 or later
OMRON NX series
Additional I/O Power Supply Unit
NX-PF0730 Version 1.0 or later
OMRON NX series
IO-Link Master Unit
NX-ILM400 Version 1.1 or later
OMRON NX series
Safety Input Unit
NX-SIH400 Version 1.1 or later
OMRON NX series
Safety Output Unit
NX-SID800 Version 1.1 or later
OMRON Sysmac Studio SYSMAC-SE2 Version 1.29 or later
OMRON CX-ConfiguratorFDT (Bundled with Sysmac
Studio
)
Version 2.5 or later
--- Computer (OS: Windows 10) ---
---
--- Communications cables ---
---
--- I/O power supply (24 VDC) ---
---
OMRON Safety light curtain F3SG-SR
F3SG-PG
Version 1.00 or later
OMRON Intelligent Tap F39-SGIT-IL3 Version 1.00 or later
OMRON IO-Link Master Unit connecting cable X5F-D521-DJO-IL
---
Intelligent Tap
(F39-SGIT-IL3)
OSSD
IO-Link Master Unit
connecting cable
XS5F-D521-DJ0-IL
IO-Link System
Computer
OS : Windows 10
(Sysmac Studio,
CX-ConfiguratorFDT)
NX102-1000
NX-SL5500
NX-PF0730
NX-SIH400
NX-SID800
NX-ILM400
Safety Light Curtain
(F3SG-SR/PG series)
Power
supply
5.2 Examples of Device Configurations
