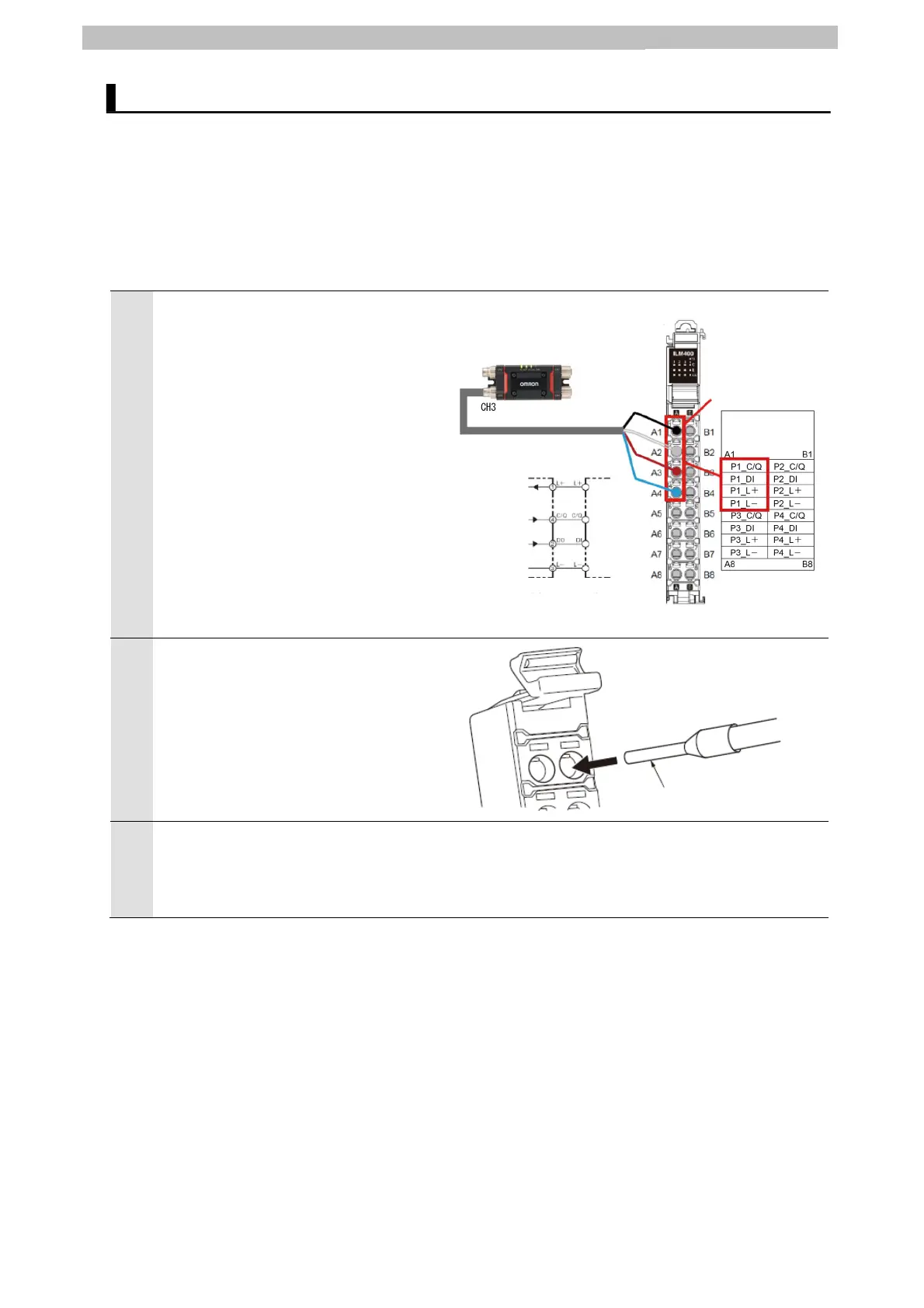

7 IO-Link Connection
Wire the Intelligent Tap to the IO-Link Master Unit.
The IO-Link Master Unit uses a screwless clamping terminal block. So, ferrules that are attached
to the twisted wires can be easily wired simply by inserting into the terminal holes of the terminal
block.
Refer to the NX-series IO-Link Master Unit User’s Manual for information on the wiring and
ferrules to connect to the screwless clamping terminal block.
1
Connect the Intelligent Tap to port 1 o
f
the IO-Link Master Unit.
Note: For details on connecting the
safety light curtain and the
Intelligent Tap, refer to 3-2.
Connection in the Safety Light
Curtain/Multi-Beam Safety
Sensor F3SG-
 SR  /F3SG-
 PG  User's Manual (Cat.
No. Z405).
2
Insert the ferrule straight into the
terminal hole.
It is not necessary to press a flat-
blade screwdriver into the release
hole.
3
After making the connection, make
sure that the ferrule is securely
connected to the terminal block.
IO-Link
Master Unit
IO-Link Master Unit
NX-ILM400
Port 1
Intelligent Tap
(F39-SGIT-IL3)
Black
White
Brown
Brown
Black
White
Blue
Photoelectric
sensor
IO-Link
Master Unit
Blue
When the IO-Link Master
Unit is connected
Ferrules
7.2 Wiring the Terminals
