8 IO-Link Master Unit Communications Setup
10

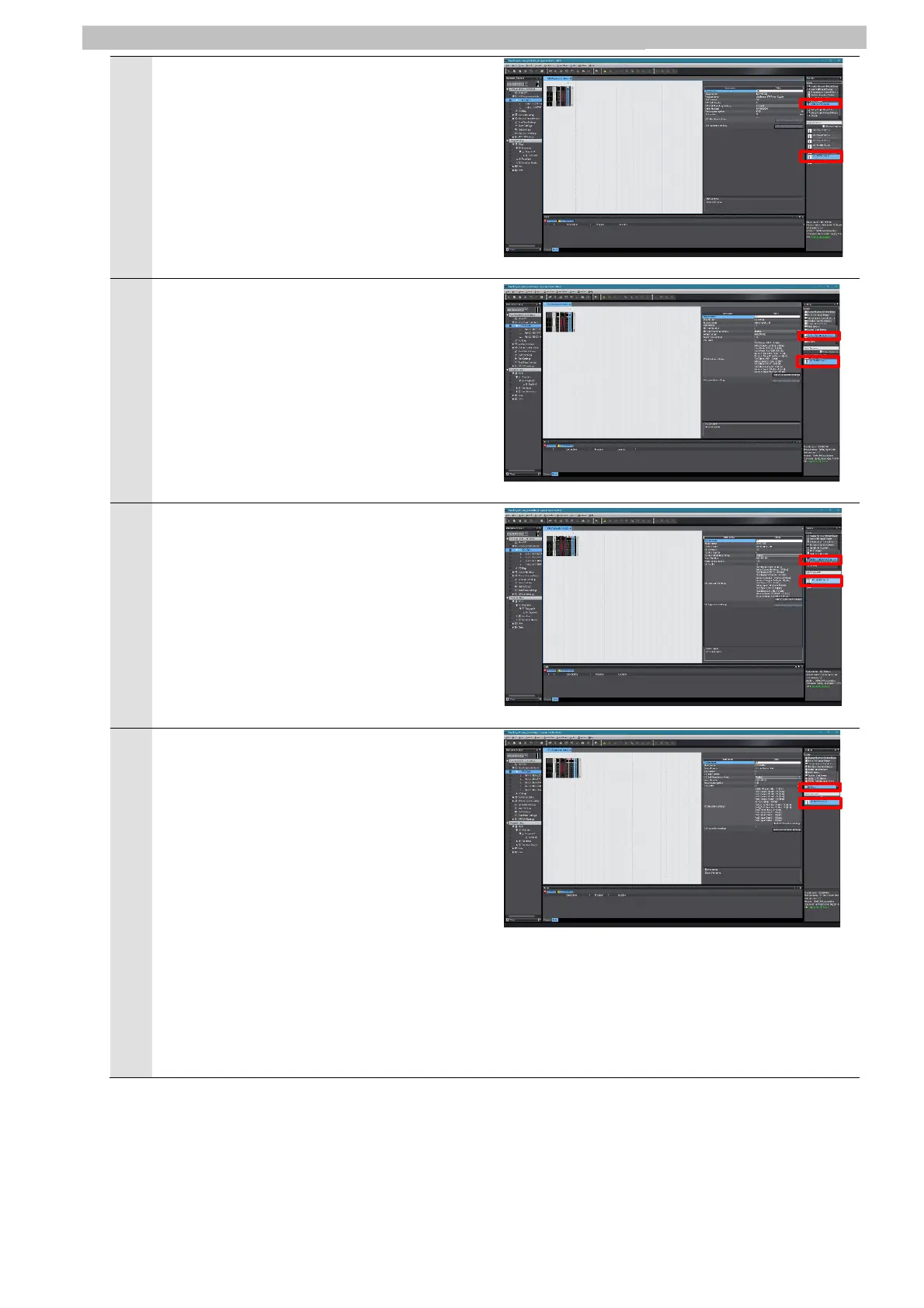

Select System Unit Device from the
Groups List in the Toolbox, and double-
click NX-PF0730 Ver1.0.
NX-PF0730 Ver1.0 is added to the CPU
and Expansion Racks tab page.
11
Select Safety Digital Input Device from the
Groups List in the Toolbox, and double-click
NX-SIH400 Ver1.1.
NX-SIH400 Ver1.1 is added to the CPU and
Expansion Racks tab page.
12
Select Safety Digital Input Device from the
Groups List in the Toolbox, and double-click
NX-SID800 Ver1.0.
NX-SID800 Ver1.0 is added to the CPU and
Expansion Racks tab page.
13
Select IO-Link from the Groups List in the
Toolbox, and double-click NX-ILM400
Ver1.1.
NX-ILM400 Ver1.1 is added to the CPU and
Expansion Racks tab page.
Make sure that the CPU/Expansion Racks
configuration is as follows.
Unit0 : NX102-1000
1 : NX-SL5500
2 : NX-PF0730
3 : NX-SIH400
4 : NX-SID800
5 : NX-ILM400
