10 Programming Using IO-Link

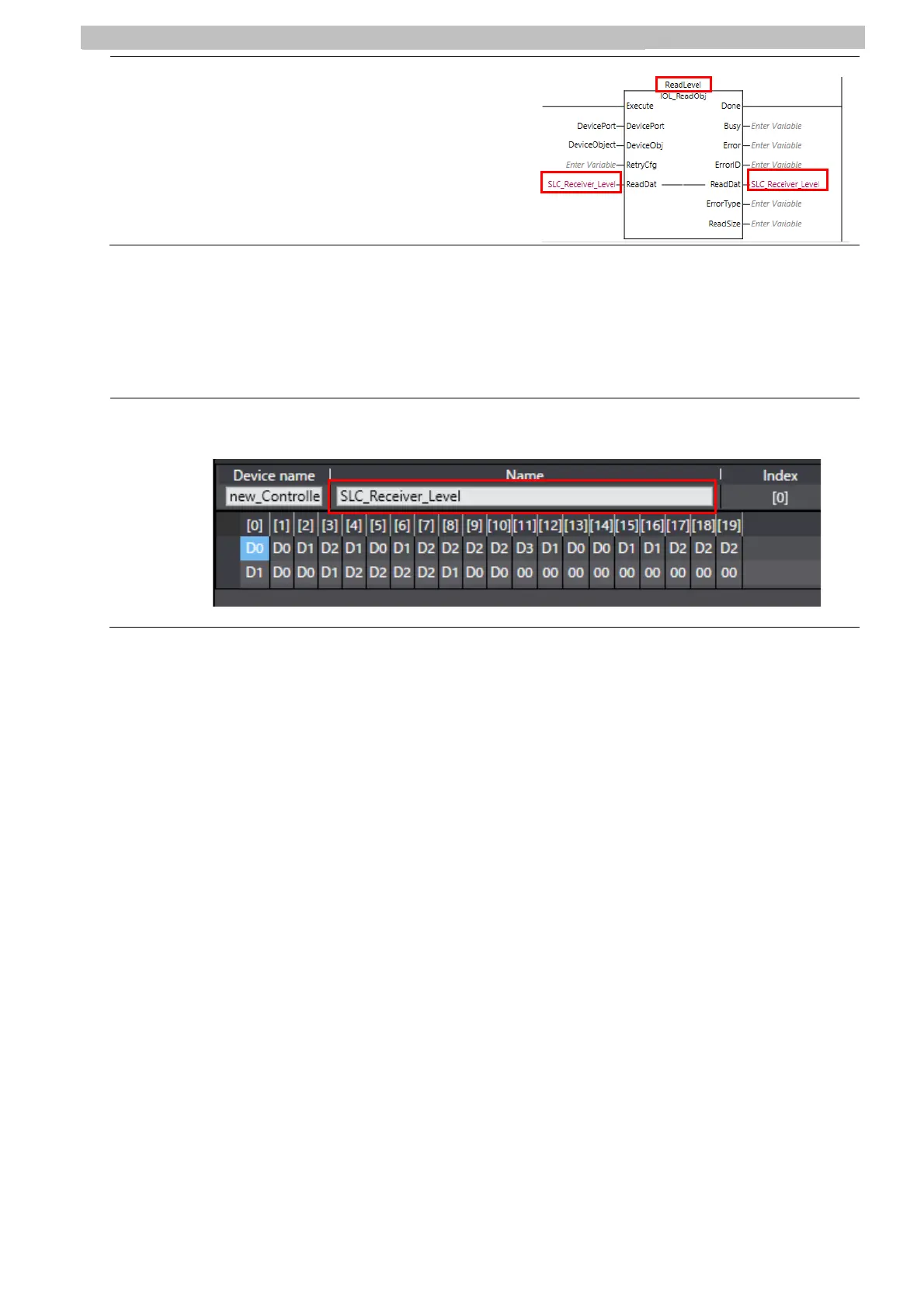

Step 30 Change the I/O of the IOL_ReadObj block
to be set as follows.
Click Enter Function Block, and enter the
following instance variable name:
Instance variable name: ReadLevel
DevicePort: DevicePort
DeviceObj: DeviceObject
ReadDat: SLC_Receiver_Level
10.3.3 Monitoring Service Data (Amount of Incident Light Level) Values
This section describes how to check service data after it has been output by the program created in
10.3.2 Programming.
The amount of incident light level can be monitored by changing the following point in the procedure
of 10.2.3 Monitoring Service Data (Error Codes) Values.
Step 2 Change Name to set to the Watch Tab Page as follows.
Variable name: SLC_Receiver_Level
For details on error codes, refer to Safety Light Curtain/Multi-Beam Safety Sensor F3SG-
 SR  /F3SG-  PG  User's Manual (Cat. No. Z405).
