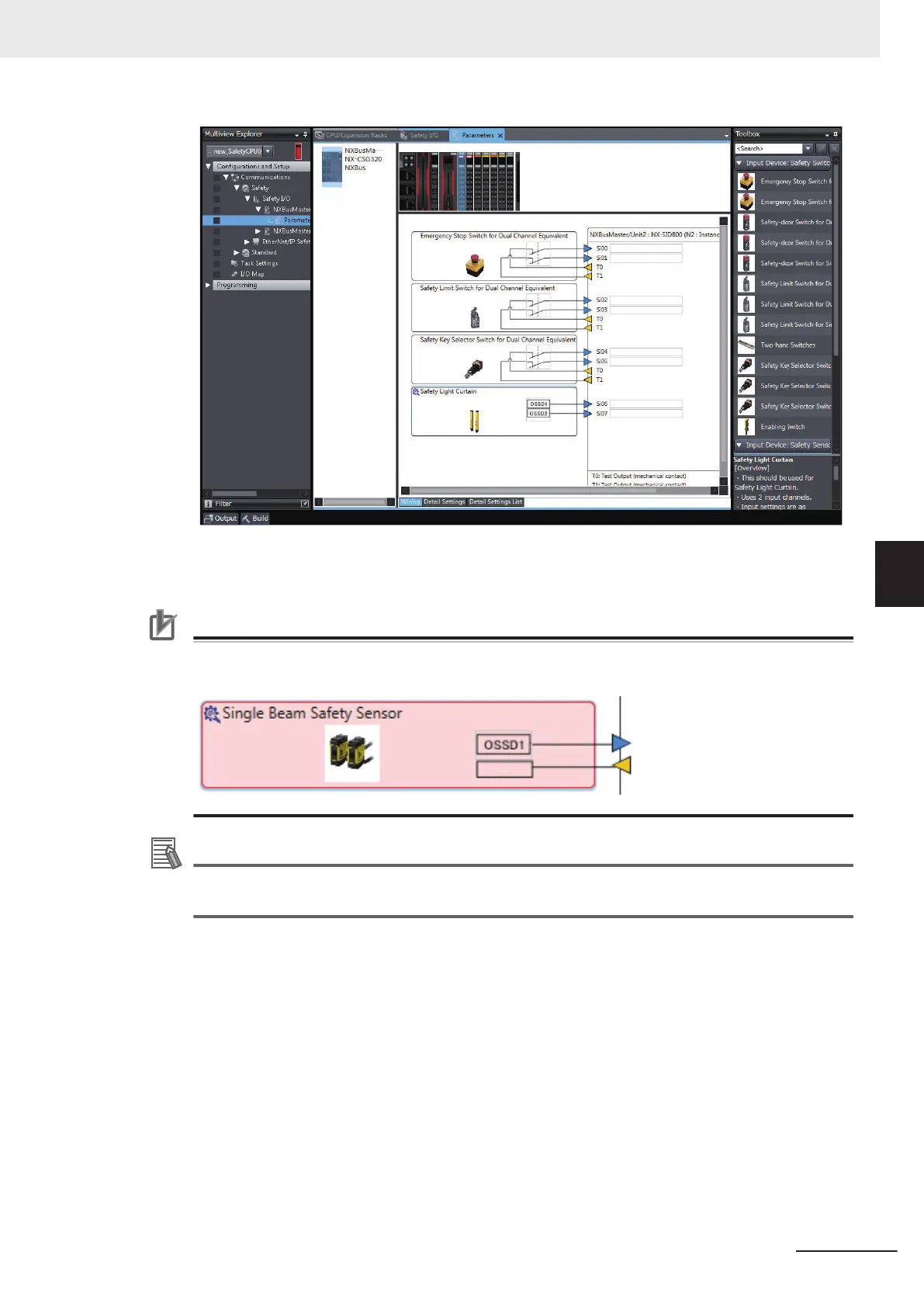

Refer to 4-3-1 Safety Input Function on page 4 - 10 and
4-3-2 Safety Output Function on page 4 - 32
for the I/O devices that you can connect and the settings for each I/O device.
Precautions for Correct Use
If you select an input device that cannot be set for a Safety Input Unit, an error will occur and
the frame around the input device will be displayed in red.
Additional Information
The I/O terminal comments on the Parameters Tab Page are linked to the device variable com-
ments and the global variable comments.
5 System Configuration and Setup
5 - 25
NX-series Safety Control Unit User's Manual (Z930)
5-5 Safety I/O Functions
