Omron NX-SL3300 - Troubleshooting the Main Errors in the Safety I;O Units

TS in-
dica-
tor
NS In-
dica-
tor
FS in-
dica-
tor
P ERR In-
dicator
Sev-
en-
seg-
ment
Indi-
cator
Cause Corrective action
--- --- --- --- [E1] --
> [05]
Safety Unit Restore Opera-
tion Failed to Start (Node
Name Mismatch)
Refer to Safety Unit Restore
Operation Failed to Start
(Node Name Mismatch)
( page 12 - 63).
---
--- --- --- [E1] --
> [06]
Safety Unit Restore Opera-
tion Failed to Start (Safety
Password Mismatch)
Refer to Safety Unit Restore
Operation Failed to Start
(Safety Password Mismatch)
( page 12 - 64).
---
--- --- --- [E1] --
> [10]
Safety Unit Restore Opera-
tion Failed
Refer to Safety Unit Restore
Operation Failed ( page
12 - 65).
---
--- --- --- [E8] Incorrect DIP Switch Setting Refer to Incorrect DIP Switch
Setting ( page 12 - 58).
12-2-2

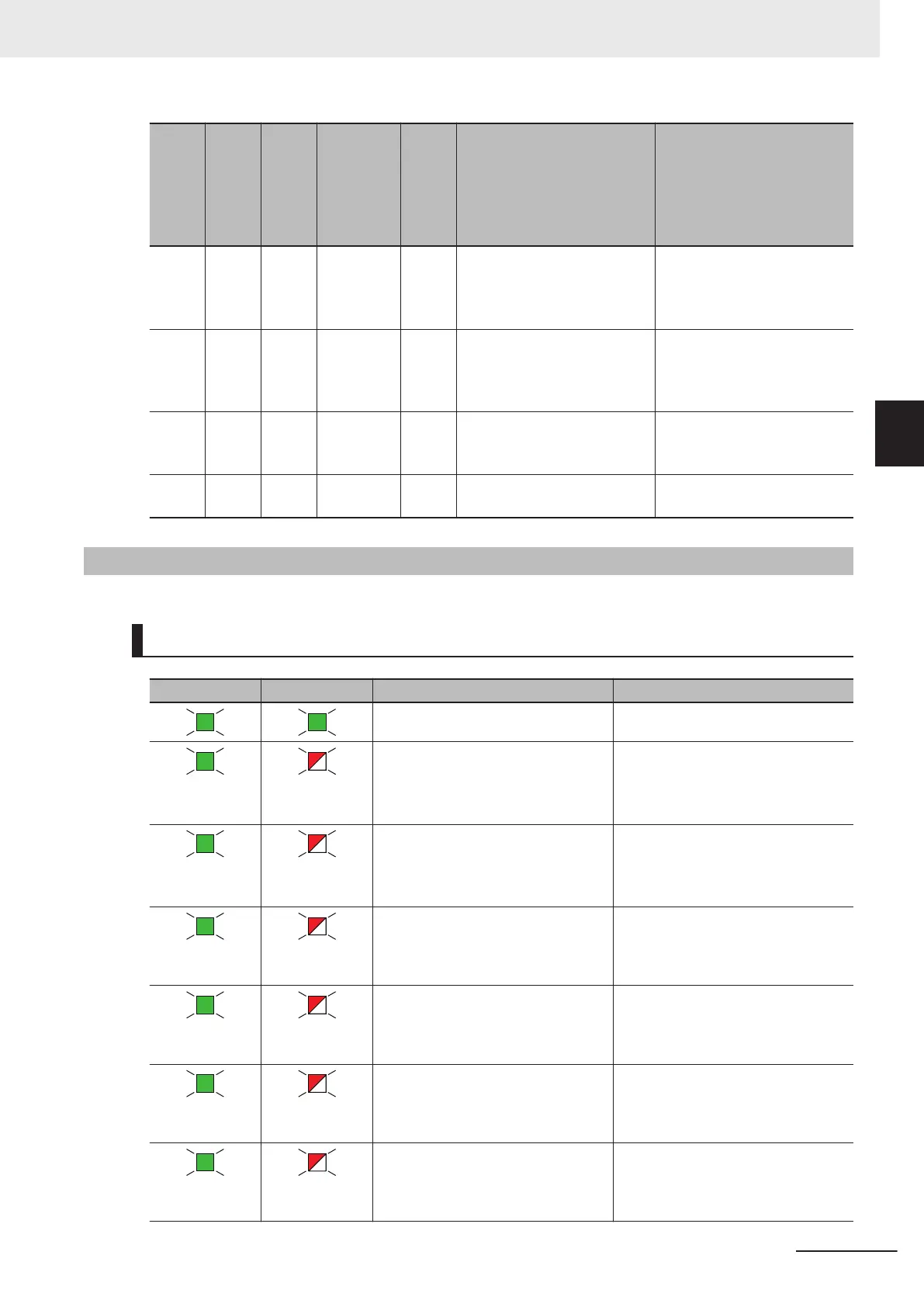

Troubleshooting the Main Errors in the Safety I/O Units
NX-SIH400/NX-SID800/NX-SOD400/NX-SOH200
TS indicator FS indicator Cause Corrective action
--- Status is normal.
1-second inter-
val
Safety Process Data Communica-
tions Not Established - Incorrect Unit
Parameter Error
Refer to Safety Process Data Com-
munications Not Established - Incor-
rect Unit Parameter Error ( page
12 - 70).
1-second inter-
val
Safety Process Data Communica-
tions Not Established, Incorrect
FSoE Slave Address Error
Refer to Safety Process Data Com-
munications Not Established, Incor-
rect FSoE Slave Address Error
( page 12 - 71
).
1-second inter-
val
Safety Process Data Communica-
tions Not Established, Incorrect
Frame Error
Refer to Safety Process Data Com-
munications Not Established, Incor-
rect Frame Error ( page 12 - 72).
1-second inter-
val
I/O Power Supply Voltage Error Refer to I/O Power Supply Voltage
Error ( page 12 - 80
).
1-second inter-
val
Output Power Interrupt Circuit Error Refer to Output Power Interrupt Cir-
cuit Error ( page 12 - 81
).
1-second inter-
val
External Test Signal Failure at Safe-
ty Input
Refer to External Test Signal Failure
at Safety Input (
page
12 - 82).
12 Troubleshooting
12 - 11
NX-series Safety Control Unit User's Manual (Z930)
12-2 Checking for Errors with the Indicators
12
12-2-2 Troubleshooting the Main Errors in the Safety I/O Units
