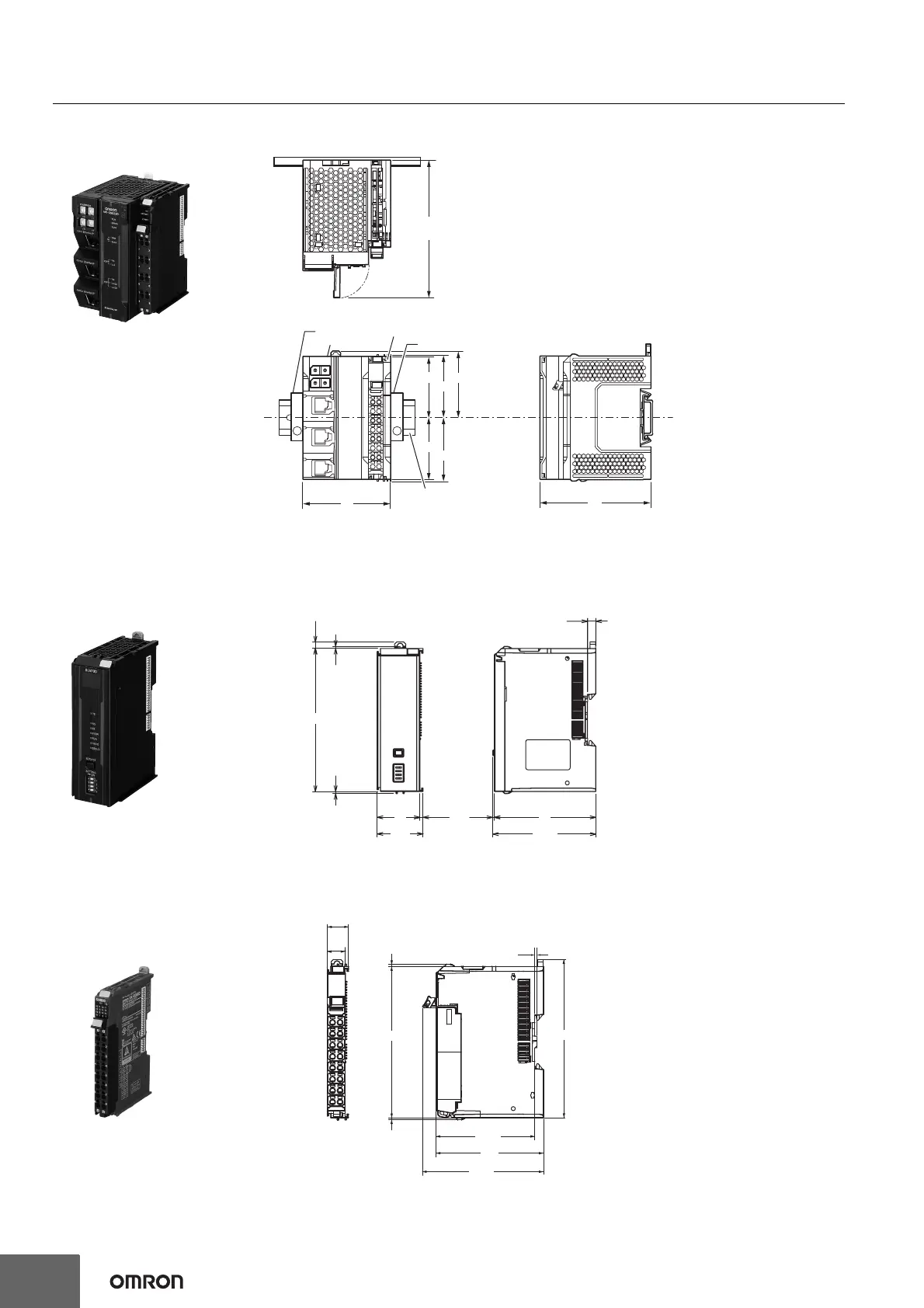

Dimensions (Unit: mm)
Communication Control Unit
NX-CSG320
Note: For dimensions with the communications cable connected, refer to NX-series User's Manual Safety Control Unit/Communication Control
Unit (Cat. No.
P129-101)
* The dimension from the attachment surface of the DIN Track to the front surface of the Communication Control Unit.
Safety Control Units
Safety CPU Units NX-SL5500/SL5700
* The dimension from the attachment surface of the DIN Track to the front surface of the Safety CPU Unit.
Safety Input Units NX-SIH400/SID800
Safety Output Units NX-SOH200/SOD400
*1. The dimension is 1.35 mm for Units with lot numbers through December 2014.
*2. The dimension from the attachment surface of the DIN Track to the front surface of the Safety I/O Unit.
DIN Track
End Plate
Communication
Control Unit
72
50
51.5
50
51.5
54.5
90
End Plate
Center line of
DIN Track
End Cover
Approx. 113
(Memory Card cover maximum range of motion)
100
(2.1) 1.1
71
5.8
(72.1)
30
32.1
4.5
1.5
1.5
14.1
12.0
71
65.2
80.1
100
1.5
1.5
104.5
0.55

Omron NX-SL5500 Specifications

General

Brand	Omron
Model	NX-SL5500
Category	Controller
Language	English
