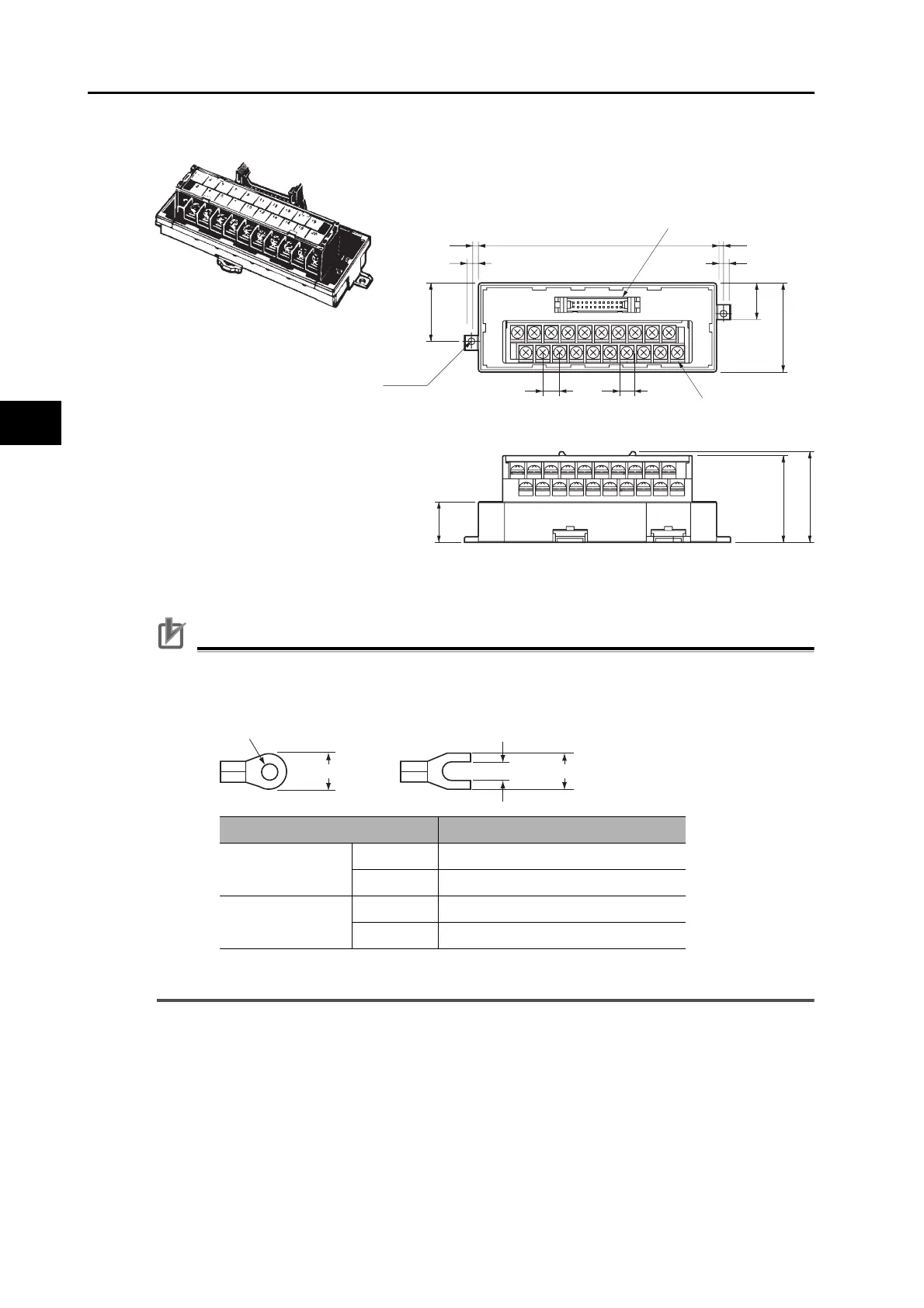

3-4 Cable and Connector Specifications
OMNUC G5-series AC Servomotors and Servo Drives User’s Manual (with Built-in EtherCAT Communications)
3
Specifications
XW2B-20G5
Note: The pitch of terminals is 8.5 mm.
Precautions for Correct Use
 When using crimp terminals, use crimp terminals with the following dimensions.
 When connecting wires and crimp terminals to a terminal block, tighten them to a tightening torque
of 0.59 N·m.
2
1
1
2
20
19
19
20
(45.3)
43.5
29.5
7
8.5 7.3
3.5
7
3.5112.5
15.5
45
2-
φ
3.5
20.5
Dimensions
Flat cable connector
(MIL type plug)
Terminal block
φ3.7 mm
3.7 mm6.8mm max. 6.8mm max.
Round terminal
Fork terminal
Applicable crimp terminals Applicable wires
Round terminals
1.25 to 3 AWG22 to 16 (0.30 to 1.25 mm
2
)
2 to 3.5 AWG16 to 14 (1.25 to 2.0 mm
2
)
Fork terminals
1.25Y to 3 AWG22 to 16 (0.30 to 1.25 mm
2
)
2 to 3.5 AWG16 to 14 (1.25 to 2.0 mm
2
)
