2 - 13
2 Models and External Dimensions
G5-series Linear Motors/Servo Drives With Built-in EtherCAT Communications
2-4 External and Mounting Dimensions
2
2-4-1 Servo Drive Dimensions

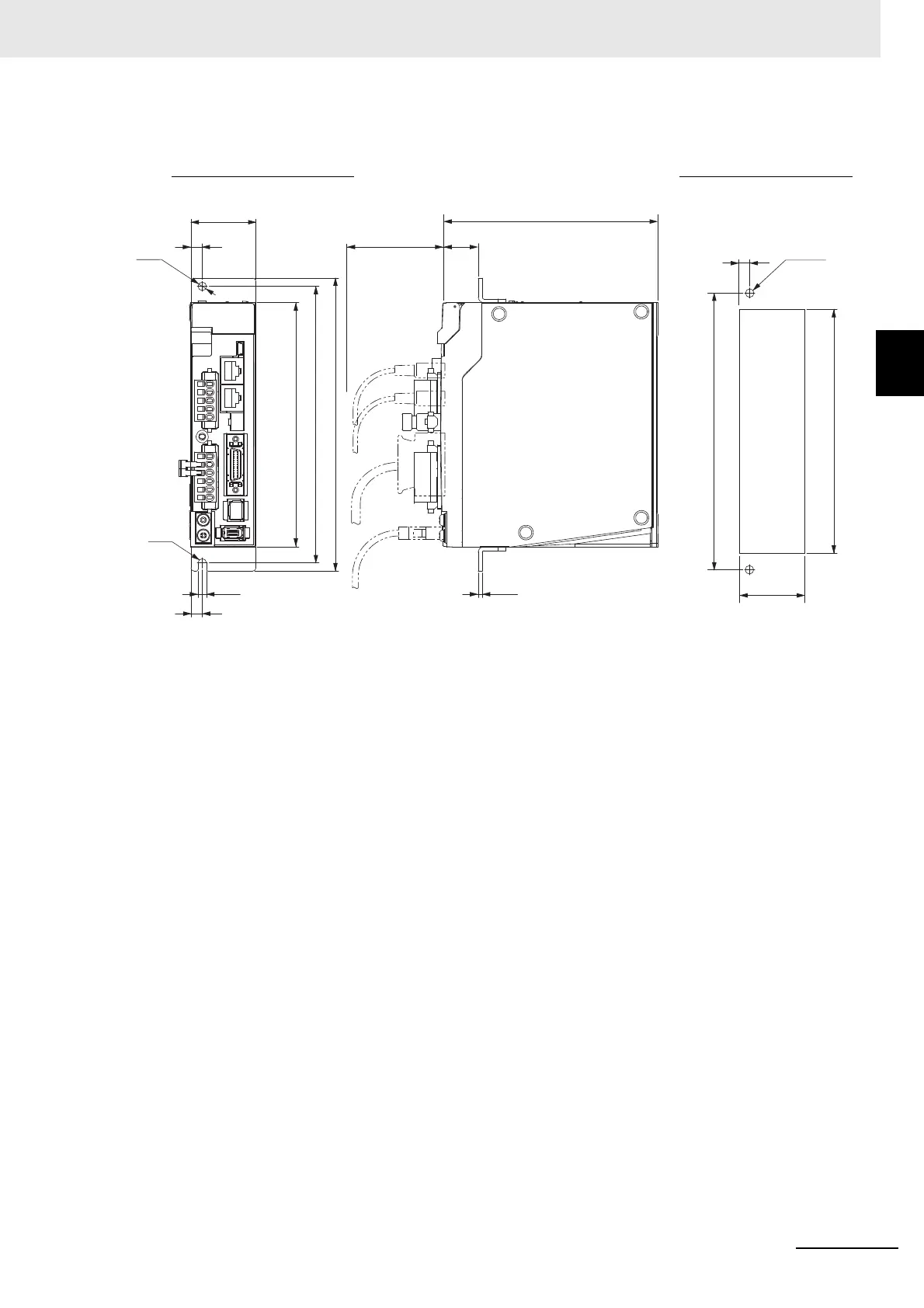

z Front Mounting (Using Front Mounting Brackets)
External dimensions
Mounting dimensions
40
7
180
170
150
5.2
R26
7
Ø5.2
2.5
132
19.5
7
2-M4
70
170
(42)*
(158)*
Rectangular
hole
* Rectangular hole dimensions are reference values.
