2 - 29
2 Models and External Dimensions
G5-series Linear Motors/Servo Drives With Built-in EtherCAT Communications
2-4 External and Mounting Dimensions
2

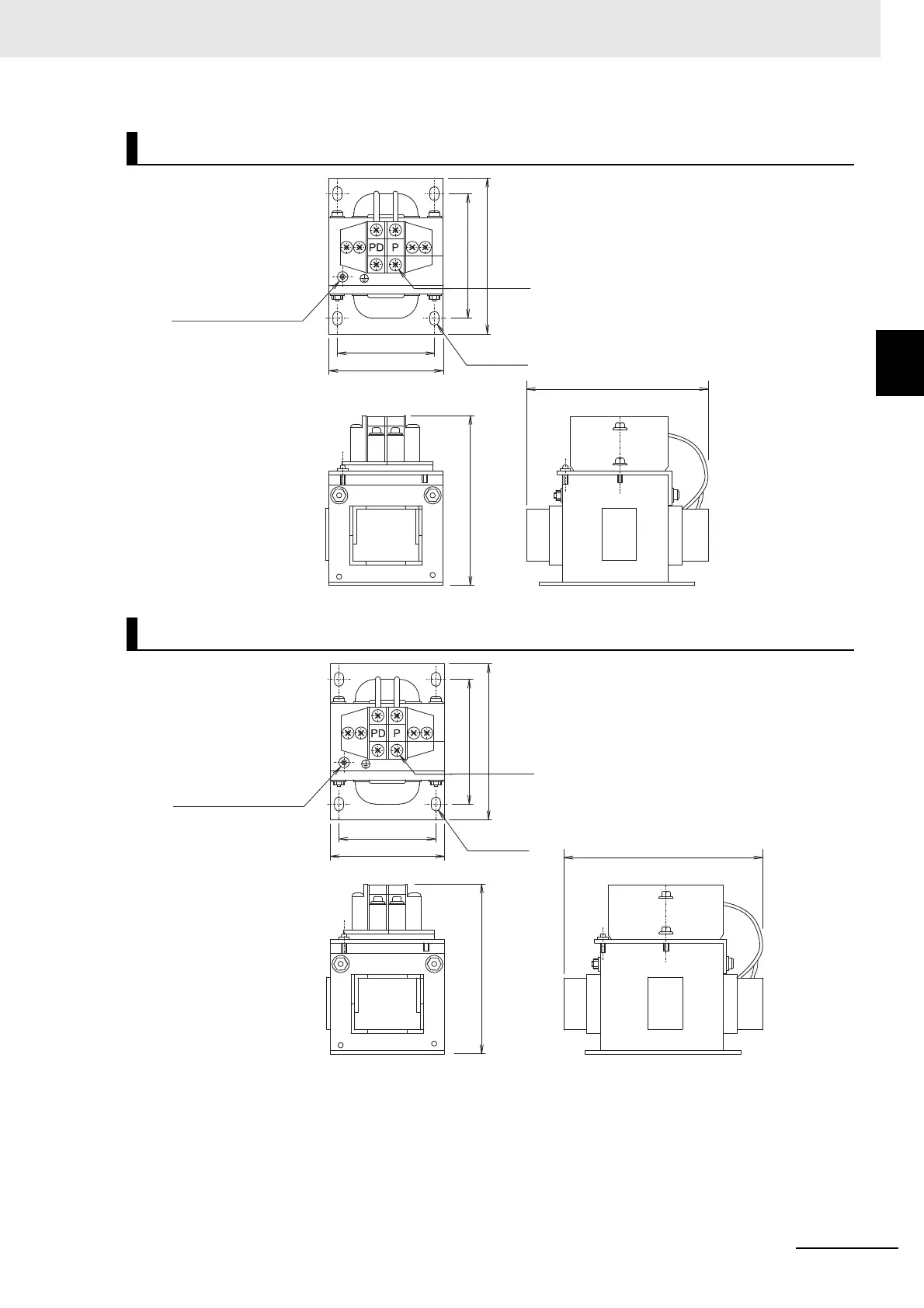

2-4-4 Reactor Dimensions
3G3AX-DL2007
3G3AX-DL2015
66
56
72
90
4-5.2 × 8
2-M4
98
105
Ground terminal (M4)
66
56
72
90
4-5.2 × 8
2-M4
98
115
Ground terminal (M4)
