3-29
3-1 Servo Drive Specifications
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
3
Specifications

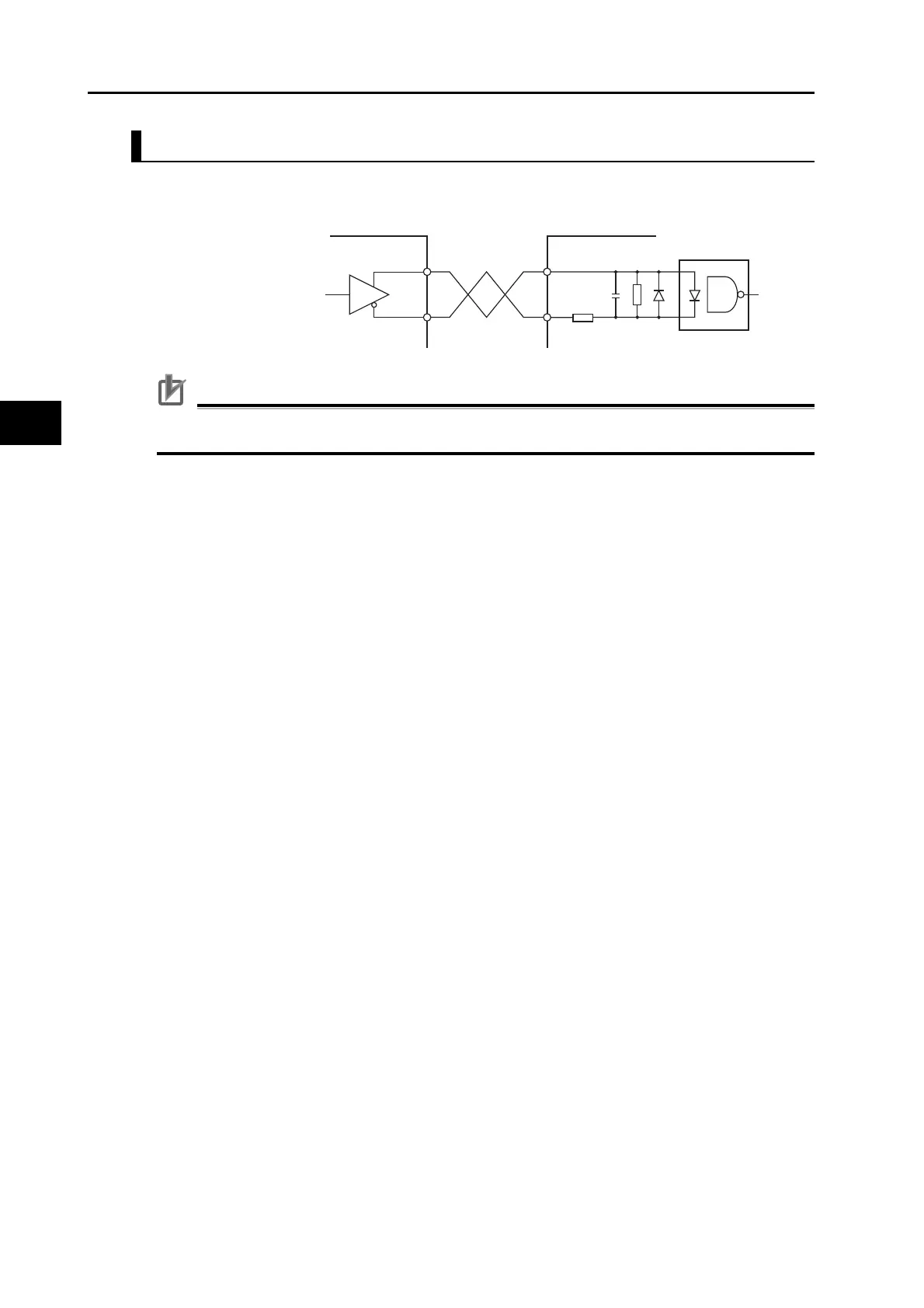

Position Command Pulse (Photocoupler Input)
When connecting with a line driver and a photocoupler, the maximum speed will be 500 kpps.
(+CW: 3, CW: 4, +CCW: 5, CCW: 6)
Precautions for Correct Use
The shielded twisted-pair cable should not exceed 10 m in length.
1000 pF
Controller
Applicable line driver
AM26LS31A or equivalent
Drive
+
+
220 Ω
2.2 kΩ
3,5
4,6
