Omron R88D-KT Series User Manual

4-35

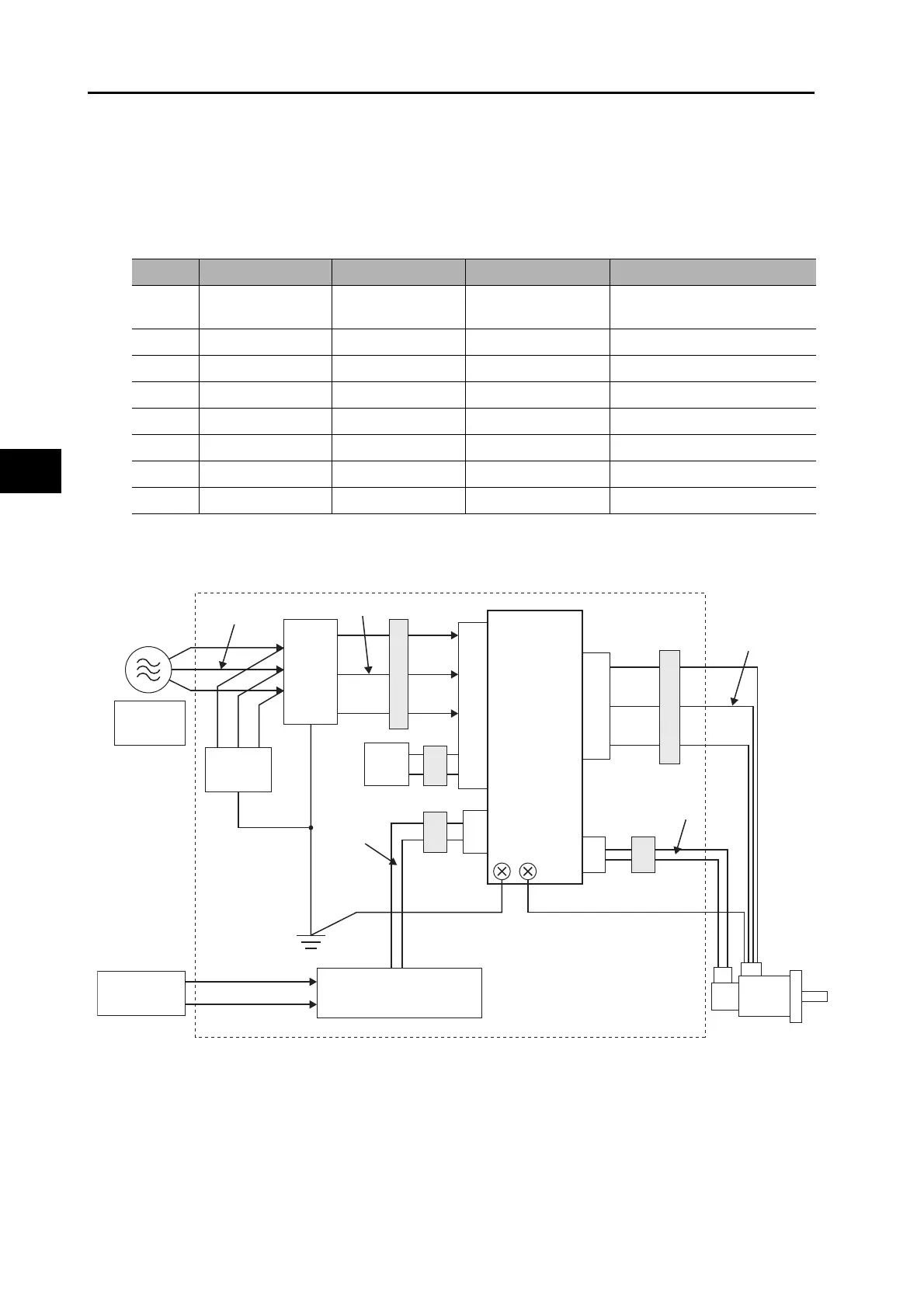

4-3 Wiring Conforming to EMC Directives
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
4
System Design
 Use ground lines with a minimum thickness of 3.5 mm
2
, and arrange the wiring so that the
ground lines are as short as possible.
 A no-fuse breaker, surge absorber, and noise filter should be positioned near the input
terminal block (ground plate), and I/O lines should be separated and wired at the shortest
distance.
Unit Details
*1. A specified combination of Servo Drive and Servomotor must be used.
R88D-KT06F/-KT10F/-KT15F/-KT20F/-KT30F/-KT50F/-KT75F/-KT150F
Symbol Name Manufacturer Model Comment
SG Surge absorber
Okaya Electric
Industries Co., Ltd.
R·A·V-781BXZ-4 3-phase 200 VAC
NF Noise filter Schaffner EMC Inc. FN258-42-07 3-phase 200 VAC (42 A)
SD Servo Drive OMRON − *1
SM Servomotor OMRON − *1
FC1 Clamp core TDK ZCAT3035-1330 −
FC2 Clamp core Konno Industry RJ8095 −
FC3 Clamp core MICROMETALS T400-61D −
− Controller −− −
L1
L2
L3
L1C
L2C
24 V
DC
SG
NF
FC2
FC3
SD
FC1
FC1
CNA
CN1
CNB
CN2
U
V
W
SM
FC1
3-phase:
400 VAC
Single-phase
:
100 VAC
Controller
(3)
(1)
(6)
(5)
(7)
(8)
(2)
(4)
