2-50
2-4 External and Mounting Dimensions
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
2

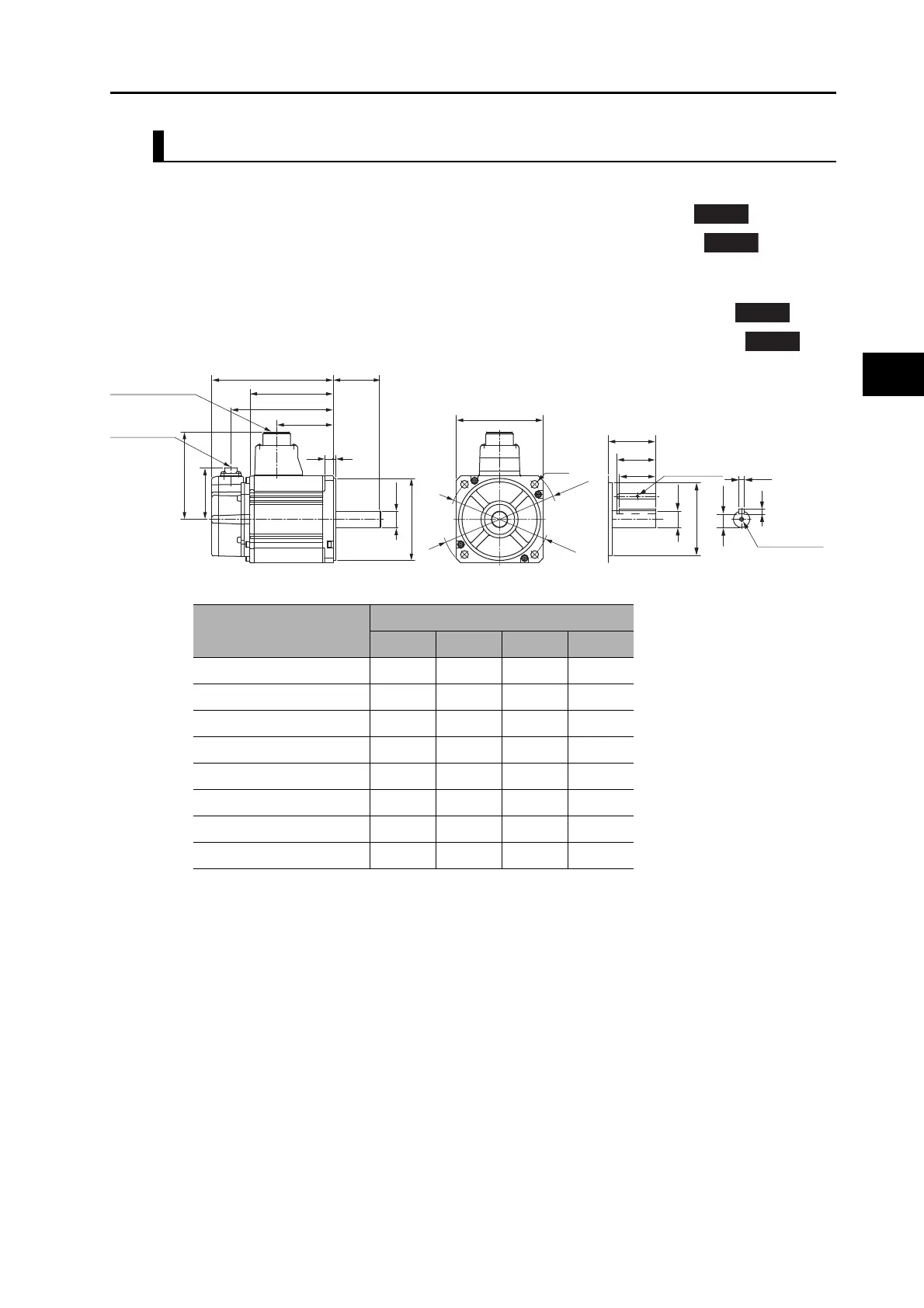

Standard Models and External Dimensions
3,000-r/min Servomotors (400 V)
750 W/1 kW/1.5 kW/2 kW (without Brake)
R88M-K75030F (-S2)/-K1K030F (-S2)/-K1K530F (-S2)/-K2K030F (-S2)
R88M-K75030C (-S2)/-K1K030C (-S2)/-K1K530C (-S2)/-K2K030C (-S2)
750 W/1 kW/1.5 kW/2 kW (with Brake)
R88M-K75030F-B (S2)/-K1K030F-B (S2)/-K1K530F-B (S2)/-K2K030F-B (S2)
R88M-K75030C-B (S2)/-K1K030C-B (S2)/-K1K530C-B (S2)/-K2K030C-B (S2)
Note. The standard models have a straight shaft. Models with a key and tap are indicated with S2 at the
end of the model number.
Models with an oil seal are indicated with O at the end of the model number. The motor dimensions
do not change.
INC
ABS
INC
ABS
100×100
4−φ9
φ115
φ135
42
45
55
M3, through
M5 (depth 12)
φ19h6
φ95h7
6h9
6
15.5
(Shaft end specifications with key and tap)
Encoder
connector
Motor and brake
connector
101 (without brake) 103 (with brake)
LM
KB2
KB1
55LL
60
310
φ
19h6
φ95h7
Model
Dimensions (mm)
LL LM KB1 KB2
R88M-K75030@ 131.5 87.5 56.5 109.5
R88M-K1K030@ 1419766119
R88M-K1K530@ 159.5 115.5 84.5 137.5
R88M-K2K030@ 178.5 134.5 103.5 156.5
R88M-K75030@-B@ 158.5 114.5 53.5 136.5
R88M-K1K030@-B@ 168 124 63 146
R88M-K1K530@-B@ 186.5 142.5 81.5 164.5
R88M-K2K030@-B@ 205.5 161.5 100.5 183.5
