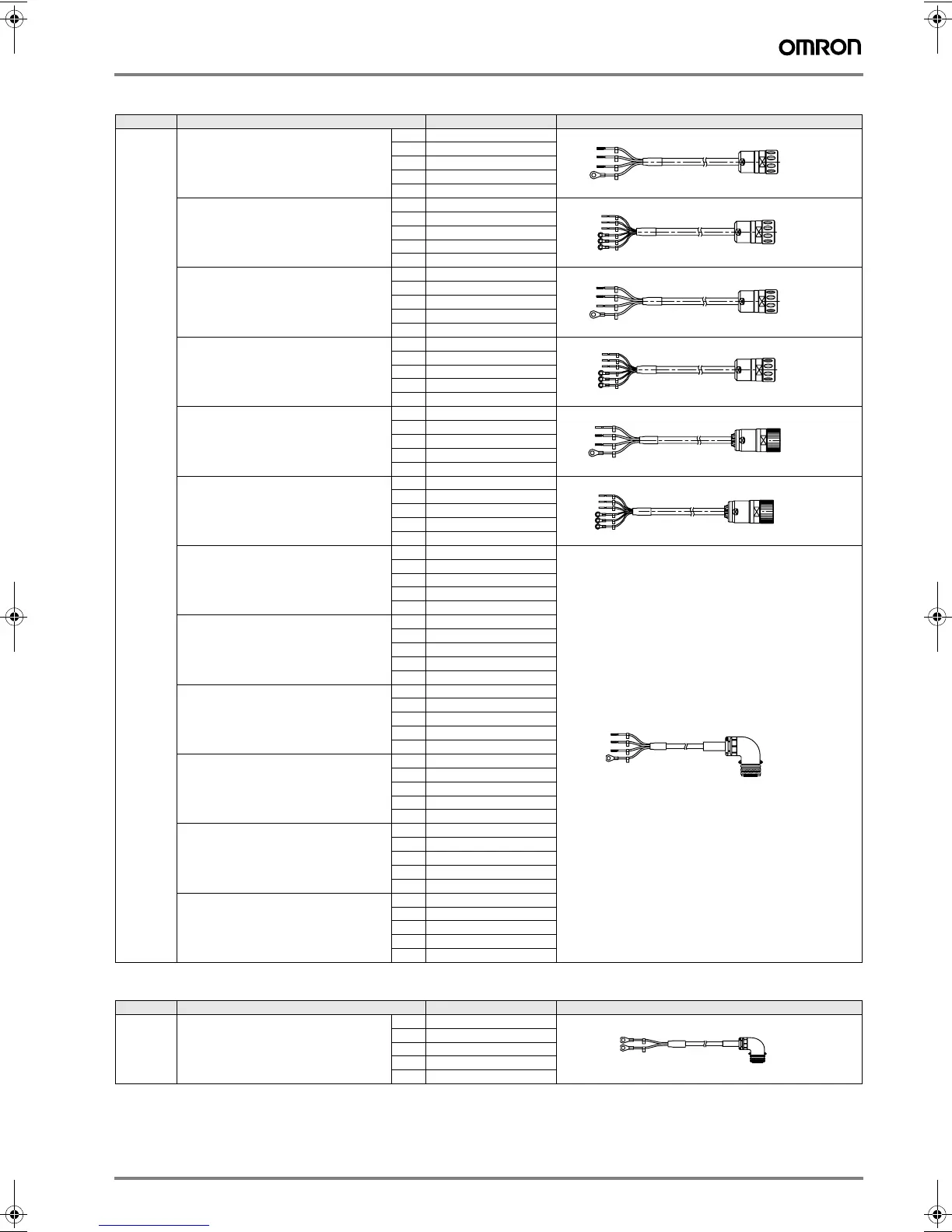

Sigma-II rotary servo motors 179
Power cables
Brake cable (for SGMGH/SH/UH Motors)
Symbol Specifications Model Appearance
D
For 200 V servo motors without brake
SGMAH-@@A@@@1D-OY
SGMPH-(01/02/04/08)A@@41D-OY
3 m R88A-CAWA003S-DE
5 m R88A-CAWA005S-DE
10 m R88A-CAWA010S-DE
15 m R88A-CAWA015S-DE
20 m R88A-CAWA020S-DE
For 200 V servo motors with brake
SGMAH-@@A@@@CD-OY
SGMPH-(01/02/04/08)A@@4CD-OY
3 m R88A-CAWA003B-DE
5 m R88A-CAWA005B-DE
10 m R88A-CAWA010B-DE
15 m R88A-CAWA015B-DE
20 m R88A-CAWA020B-DE
For 200 V servo motors without brake
SGMPH-15A@@@1D-OY
3 m R88A-CAWB003S-DE
5 m R88A-CAWB005S-DE
10 m R88A-CAWB010S-DE
15 m R88A-CAWB015S-DE
20 m R88A-CAWB020S-DE
For 200 V servo motors with brake
SGMPH-15A@@@CD-OY
3 m R88A-CAWB003B-DE
5 m R88A-CAWB005B-DE
10 m R88A-CAWB010B-DE
15 m R88A-CAWB015B-DE
20 m R88A-CAWB020B-DE
For 400 V servo motors without brake
SGMAH-@@D@@@1D-OY
SGMPH-@@D@@@1D-OY
3 m R88A-CAWK003S-DE
5 m R88A-CAWK005S-DE
10 m R88A-CAWK010S-DE
15 m R88A-CAWK015S-DE
20 m R88A-CAWK020S-DE
For 400 V servo motors with brake
SGMAH-@@D@@@CD-OY
SGMPH-@@D@@@CD-OY
3 m R88A-CAWK003B-DE
5 m R88A-CAWK005B-DE
10 m R88A-CAWK010B-DE
15 m R88A-CAWK015B-DE
20 m R88A-CAWK020B-DE
For 400 V servo motors
SGMGH-(05/09/13)D@
SGMSH-(10/15/20)D@
SGMUH-(10/15)D@
For servomortors with brake, a separate cable
(R88A-CAWC0@@B-E) is needed
3 m R88A-CAWC003S-E
5 m R88A-CAWC005S-E
10 m R88A-CAWC010S-E
15 m R88A-CAWC015S-E
20 m R88A-CAWC020S-E
For 400 V servo motors
SGMGH-(20/30)D@
SGMSH-(30/40/50)D@
SGMUH-(30/40)D@
For servomortors with brake, a separate cable
(R88A-CAWC0@@B-E) is needed
3 m R88A-CAWD003S-E
5 m R88A-CAWD005S-E
10 m R88A-CAWD010S-E
15 m R88A-CAWD015S-E
20 m R88A-CAWD020S-E
For 400 V servo motors
SGMGH-44D@
For servomortors with brake, a separate cable
(R88A-CAWC0@@B-E) is needed
3 m R88A-CAWG003S-E
5 m R88A-CAWG005S-E
10 m R88A-CAWG010S-E
15 m R88A-CAWG015S-E
20 m R88A-CAWG020S-E
For 400 V servo motors
SGMGH-55D@
For servomortors with brake, a separate cable
(R88A-CAWC0@@B-E) is needed
3 m R88A-CAWF003S-E
5 m R88A-CAWF005S-E
10 m R88A-CAWF010S-E
15 m R88A-CAWF015S-E
20 m R88A-CAWF020S-E
For 400 V servo motors
SGMGH-(75/1A)D@
For servomortors with brake, a separate cable
(R88A-CAWC0@@B-E) is needed
3 m R88A-CAWH003S-E
5 m R88A-CAWH005S-E
10 m R88A-CAWH010S-E
15 m R88A-CAWH015S-E
20 m R88A-CAWH020S-E
For 400 V servo motors
SGMGH-1ED@
For servomortors with brake, a separate cable
(R88A-CAWC0@@B-E) is needed
3 m R88A-CAWJ003S-E
5 m R88A-CAWJ005S-E
10 m R88A-CAWJ010S-E
15 m R88A-CAWJ015S-E
20 m R88A-CAWJ020S-E
Symbol Specifications Model Appearance
E
Brake cable only.
For 400 V servo motors with brake
SGMGH-@@D@
SGMSH-@@D@
SGMUH-@@D@
3 m R88A-CAWC003B-E
5 m R88A-CAWC005B-E
10 m R88A-CAWC010B-E
15 m R88A-CAWC015B-E
20 m R88A-CAWC020B-E
