Sigma-II rotary servo motors 175

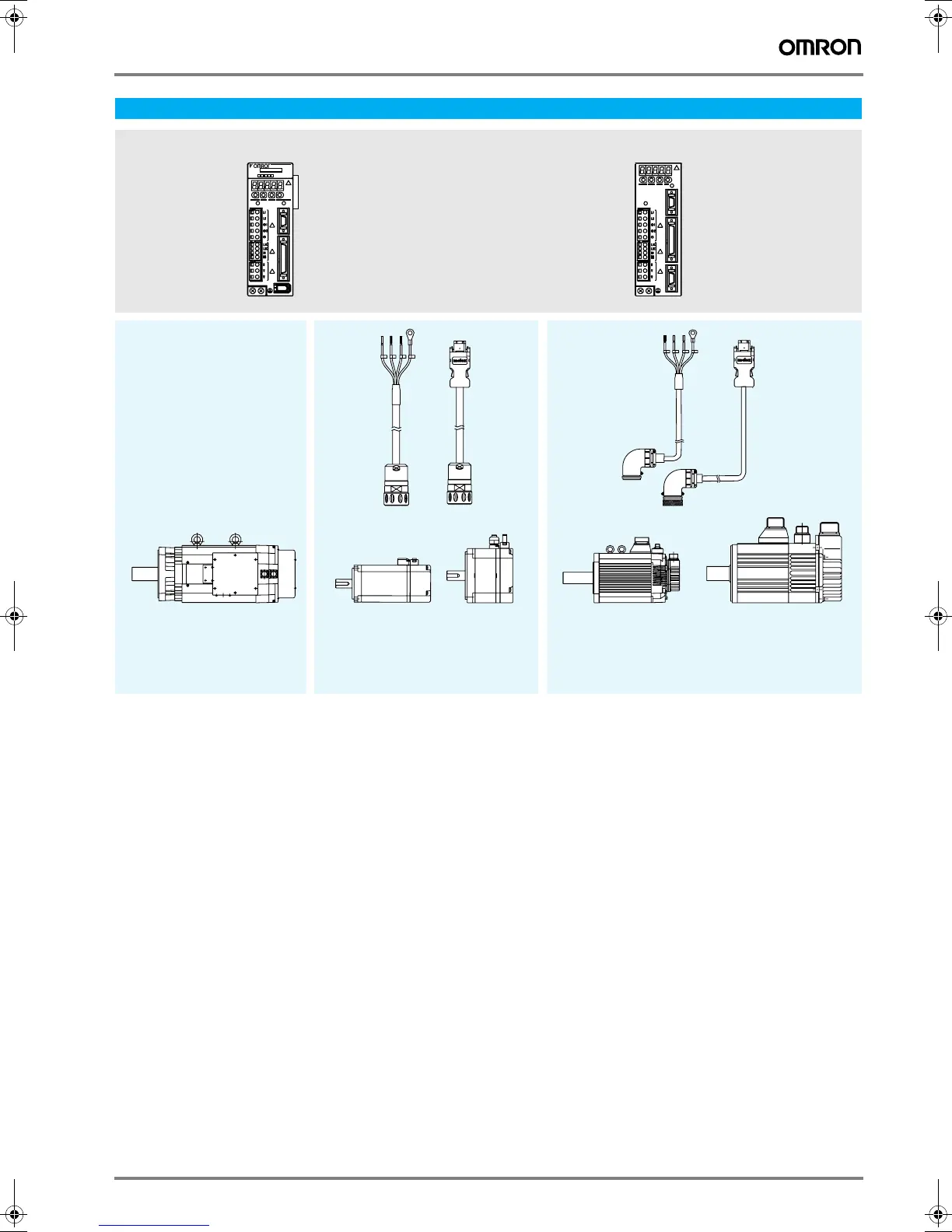

Ordering information
Note: The symbols ABC... show the recommended sequence to select the servo motor and cables
Servo motor
A Select motor from families SGMAH, SGMPH, SGMGH, SGMUH, SGMSH, SGMBH using motor tables in next pages.
Servo drive
Note: Choosing Sigma-II drive or XtraDrive affects to the encoder cable needed.
B Refer to Sigma-II servo drive or XtraDrive chapter for detailed drive specifications and selection of drive accessories.
B
B
CHARGE POWER
SERVOPACK
SGDH-
200VVer.
CN3
CN1
CN2
CHARGE
POWER
CN3
CN1
CN2
C
C
D
D
E
AAAAAA
Intelligent
servo drive
XtraDrive
Servo drive with option
boards for flexible
system configuration
Sigma-II
Servo Drive
Drive options
(Refer to servo drive chapter)
SGMAH
Servo Motor
3000 rpm
(30-750 W)
SGMPH
Servo Motor
3000 rpm
(100-1500 W)
SGMGH
Servo Motor
1500 rpm
(450W-15 kW)
SGMBH
Servo Motor
1500 rpm
(22 kW-55 kW)
SGMUH
Servo Motor
3000 rpm
(1-5 kW)
SGMSH
Servo Motor
6000 rpm
(1-4 kW)
Encoder cable Power cable Power cable Encoder cable Brake cable
Power and
encoder cables
