92 AC servo systems

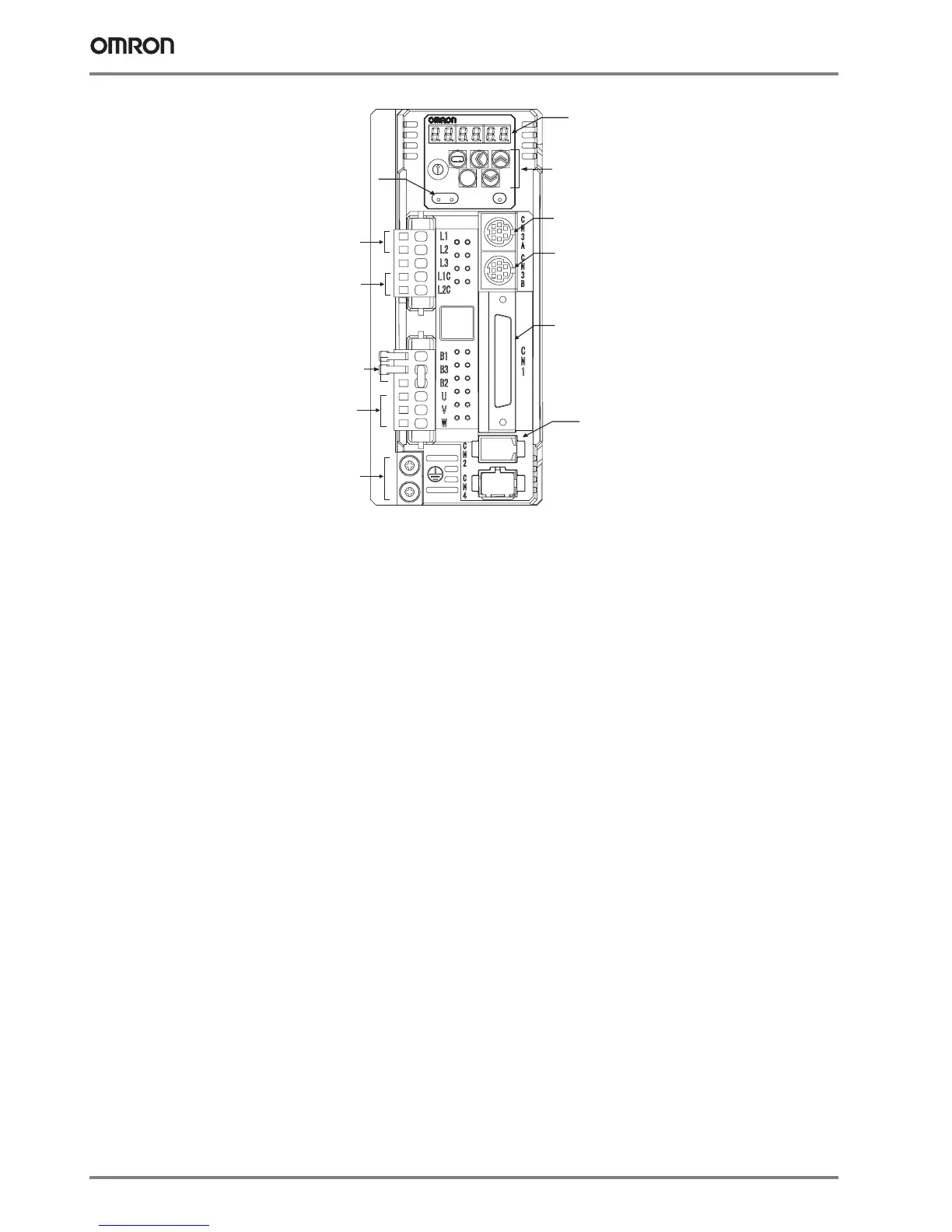

SmartStep2 Servo Drive (750 W model)
UNIT No.
AC SERVO DRIVER
DATA
RS-485
Communications connector
(CN3A)
RS-232
Communications connector/
Parameter unit connector
(CN3B)
External regeneration resistor
connection terminals
Display area
Settings area
Encoder connector (CN2)
Control I/O connector
(CN1)
Servomotor connection terminals
Protective ground terminals
Main-circuit power terminals
Control-circuit power terminals
Analog monitor outputs
