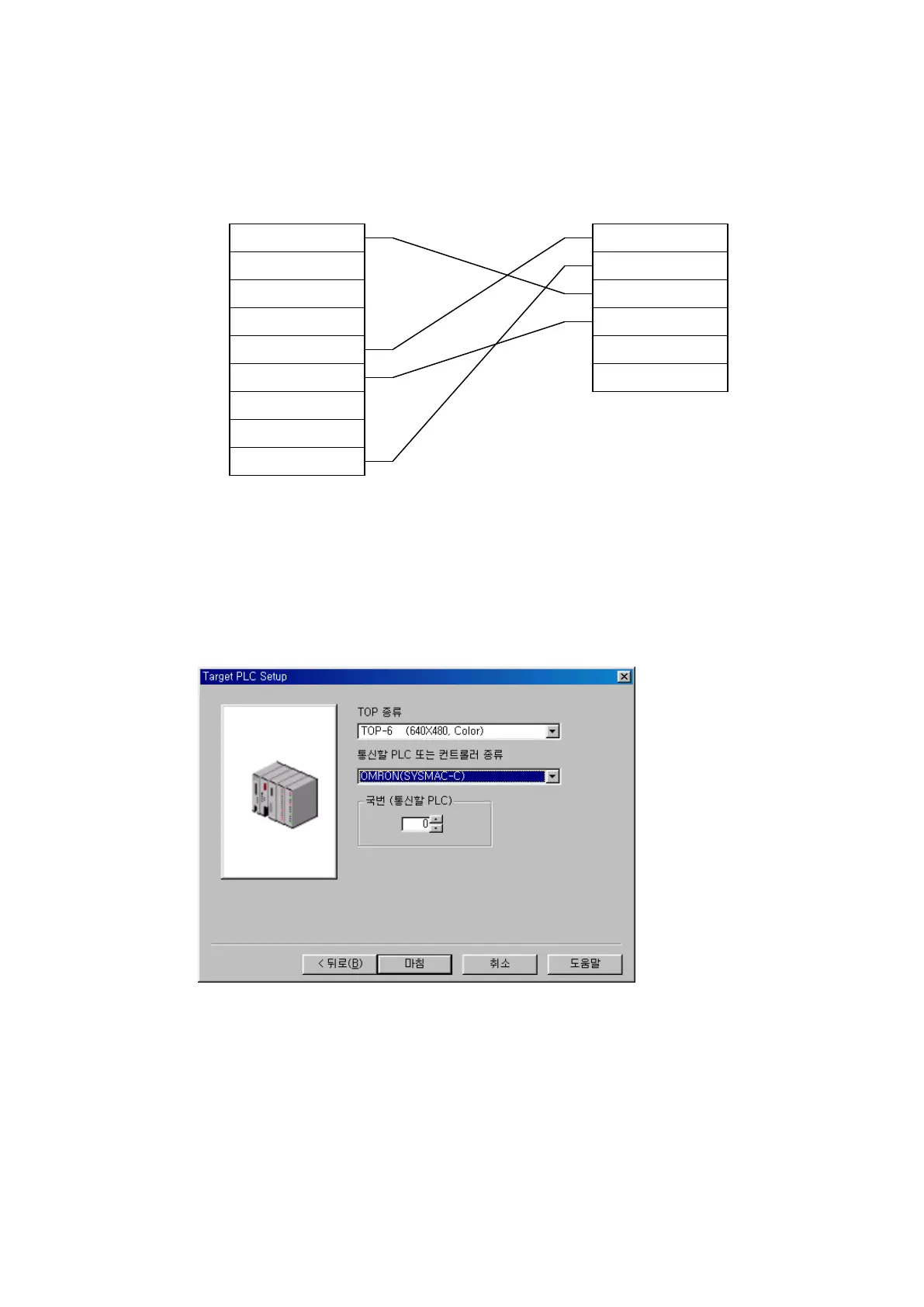

(2) RS-422 ( CPM1A/2A ↔ TOP)
CPM1A/2A/2C(9Pin) TOP(5Pin Terminal/15Pin)
< TOP Setup >
(1) TOP Designer Setup
Select “OMRON(SYSMAC-C)”of “OMRON Series” in PLC Type.
1/11 RDA
2/12 RDB
3/13 SDA
4/14 SDB
5/15 SG
1 RDB(RD+)
2
3 SG
4
5 SDB(SD+)
6 RDA(RD-)
7 FG
8
9 SDA(SD-)
