Omron SYSMAC Series User Manual

4

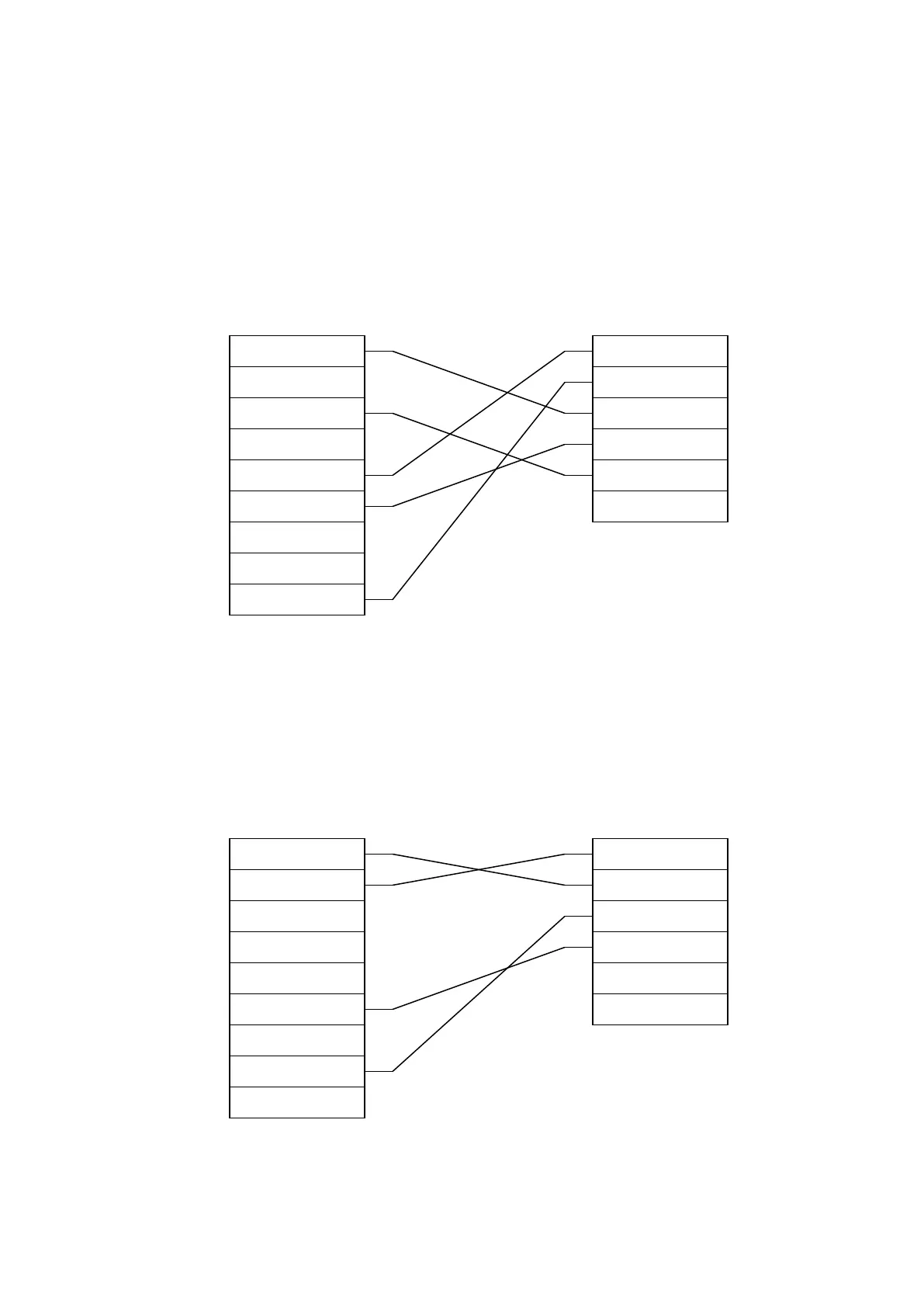

(3) RS-422 (SYSMAC-C ↔ TOP (for 5Pin Terminal Block or 15Pin Connector )
This is connection diagram for SYSMAC-C PLCs except C200.
Comm. Link Module(9Pin) TOP
(5Pin Terminal Block/15pin)
(4) RS-422 (SYSMAC-C200 ↔ TOP (for 5Pin Terminal Block or 15Pin
Connector) )
This is connection diagram for SYSMAC-C PLC C200.
Comm. Link Module(9Pin) TOP
(5Pin Terminal Block/15Pin)
1/11 RDA
2/12 RDB
3/13 SDA
4/14 SDB
5/15 SG
1 SDB
2 SDA
3 SG
4
5
6 RDB
7
8 RDA
9
1/11 RDA
2/12 RDB
3/13 SDA
4/14 SDB
5/15 SG
1 RDA
2
3 SG
4
5 SDA
6 RDB
7 FG
8
9 SDB
