Installation Instruction
Parts Needed: Base + Pump + 4
Locking Nuts + Wrench
Sep 1. Insert threaded bolts on bottom
of pump into holes on top of Base.
Tighten 4 locking nuts onto threaded
bolts (Easiest when set on side,
supported by a sturdy object.)
Parts Needed: Foot Bar + Assembled
Base & Pump + Allen Wrench
Step 1. Place assembled base & pump
on floor.Use Allen wrench to loosen set
screws in the crossbar. This prevents
set screws from obstructing entry of
foot bar. Insert foot bar into the holes
of crossbar. (May require slightly
squeezing ends of foot bar towards
each other, and some maneuvering for
the bar ends to go into place.)
Step 2.
Tighten the set screws to firmly
hold the foot bar in place.

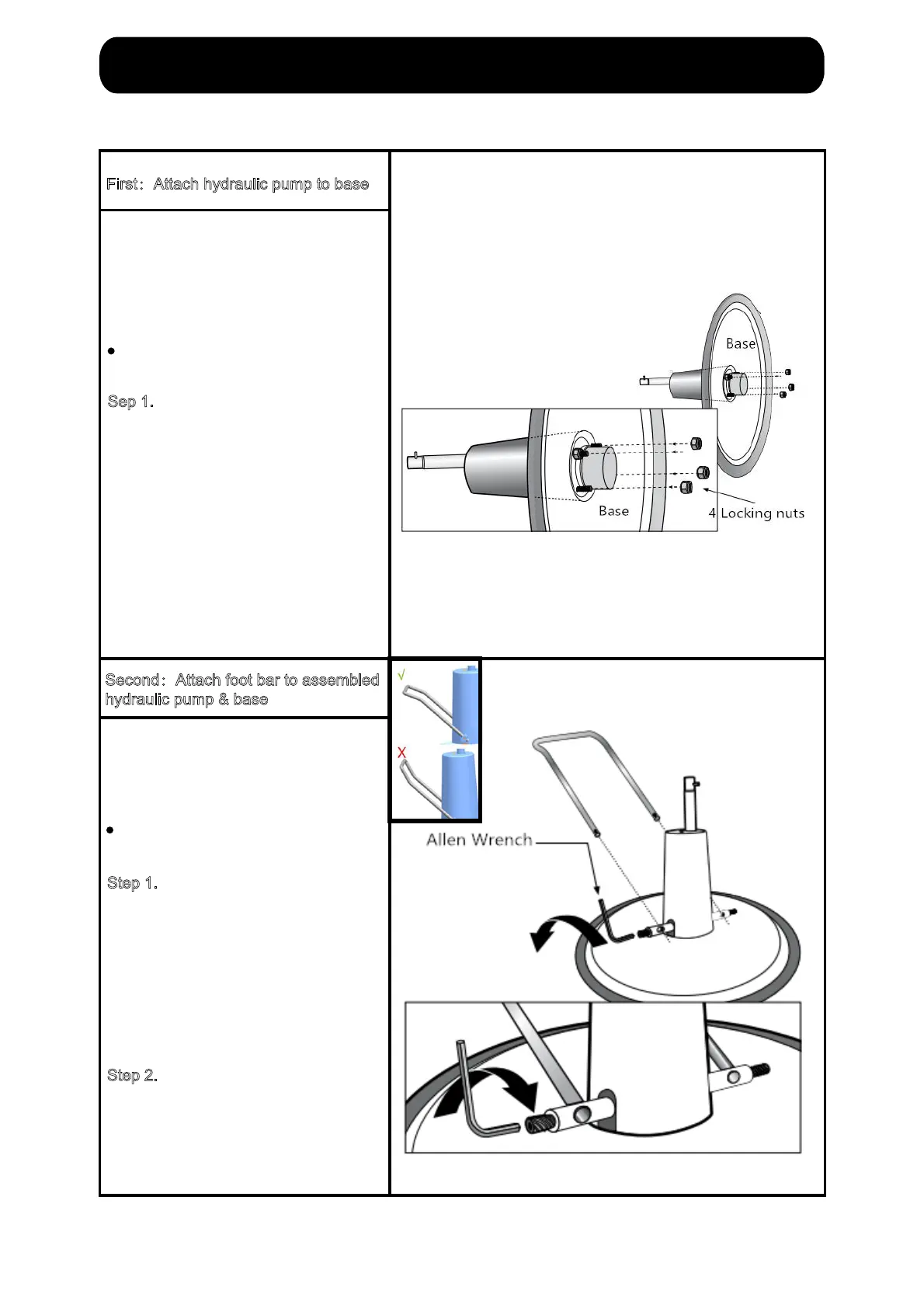

First
：Attach hydraulic pump to base
Second：Attach foot bar to assembled
hydraulic pump & base
Pump
Pump
