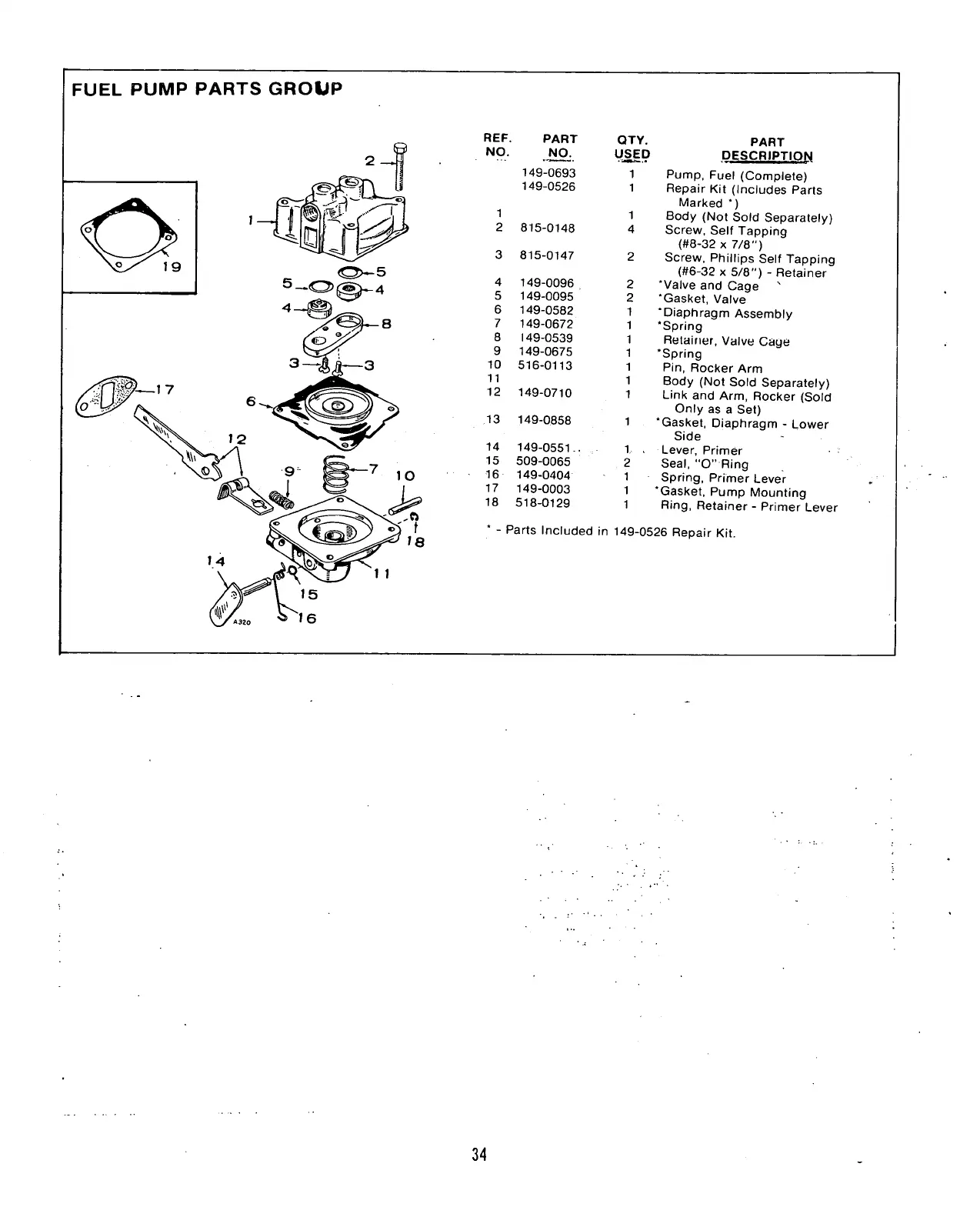

FUEL
PUMP
PARTS
GROUP
REF.
PART
QTY.
Np.
NO.
USED
149-0693
1
149-0526
1
1
1
2
815-0148
4
3
815-0147
2
4
149-0096
2
5
149-0095
2
6
149-0582
1
7
149-0672
1
8
149-0539
1
9
149-0675
1
10
516-0113
1
11
1
12
149-0710
1
13
149-0858
1
14
149-0551..
1 .
15
509-0065
2
16
149-0404
1
17
149-0003
1
18
518-0129
1
PART
DESCRIPTION
Pump, Fuel (Complete)
Repair Kit (Includes Parts
Marked *)
Body (Not Sold Separately)
Screw, Self Tapping
(#8-32 x 7/8")
Screw, Phillips Self Tapping
(#6-32 x 5/8") - Retainer
"Valve and Cage
"Gasket, Valve
"Diaphragm Assembly
'Spring
Retainer, Valve Cage
'Spring
Pin,
Rocker Arm
Body (Not Sold Separately)
Link and Arm, Rocker (Sold
Only as a Set)
'Gasket, Diaphragm - Lower
Side
Lever,
Primer
Seal,
"O" Ring
Spring,
Primer Lever
'Gasket, Pump Mounting
Ring,
Retainer - Primer Lever
- Parts Included in 149-0526 Repair Kit.
