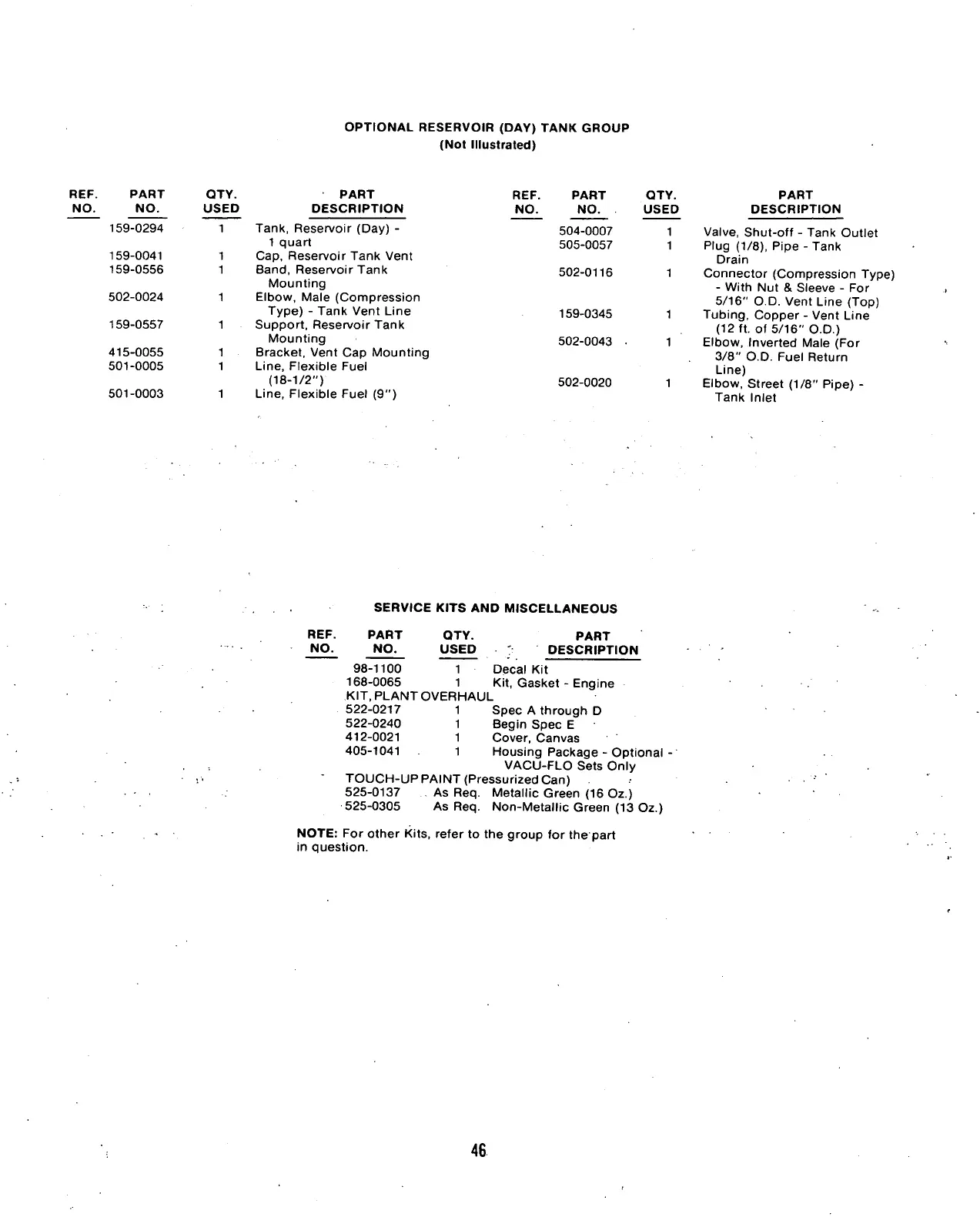

OPTIONAL RESERVOIR (DAY) TANK GROUP
(Not Illustrated)
NO.
PART
QTY.
PART
REF.
PART
QTY.
NO.
USED
DESCRIPTION
NO. NO.
USED
159-0294 1 Tank, Reservoir (Day) -
1 quart
504-
0007
505-
0057
1
1
159-0041 1
Cap,
Reservoir Tank Vent
159-0556 1
Band,
Reservoir Tank
502-0116
1
Mounting
502-0116
1
502-0024
1
Elbow, Male (Compression
Type) - Tank Vent Line
159-0345
1
159-0557
1
Support, Reservoir Tank
Mounting
502-0043
1
415-0055 1 Bracket, Vent Cap Mounting
501-0005
1
Line,
Flexible Fuel
(18-1/2")
502-0020
1
501-0003 1
Line,
Flexible Fuel (9")
PART
DESCRIPTION
Valve,
Shut-off - Tank Outlet
Plug (1/8), Pipe - Tank
Drain
Connector (Compression Type)
- With Nut & Sleeve - For
5/16" O.D. Vent Line (Top)
Tubing,
Copper - Vent Line
(12 ft. of 5/16" O.D.)
Elbow, Inverted Male (For
3/8" O.D. Fuel Return
Line)
Elbow, Street (1/8" Pipe) -
Tank Inlet
SERVICE
KITS
AND
MISCELLANEOUS
REF.
NO.
PART
NO.
QTY.
USED
PART
DESCRIPTION
98-1100 1 Decal Kit
168-0065 1 Kit, Gasket - Engine
KIT, PLANT OVERHAUL
522-0217 1 Spec A through D
522-0240 1 Begin Spec E
412-0021 1 Cover, Canvas
405-1041 1 Housing Package - Optional
VACU-FLO Sets Only
" TOUCH-UP PAINT (Pressurized Can)
525-0137 As Req. Metallic Green (16 Oz.)
525-0305 As Req. Non-Metallic Green (13 Oz.)
NOTE:
For other Kits, refer to the group for the part
in question.
