DECOMPRESS1
ON
RELEASE
ARM
EXHAUST VALVE
LOCK NUT
'
P
I
A705
pw.
DECOM
P
RE
SI
ON
RELEASE ARM
ltJ
RUNNING
POSIT10
OKEN
LINE
INDICATES
OVEMEMWHEN

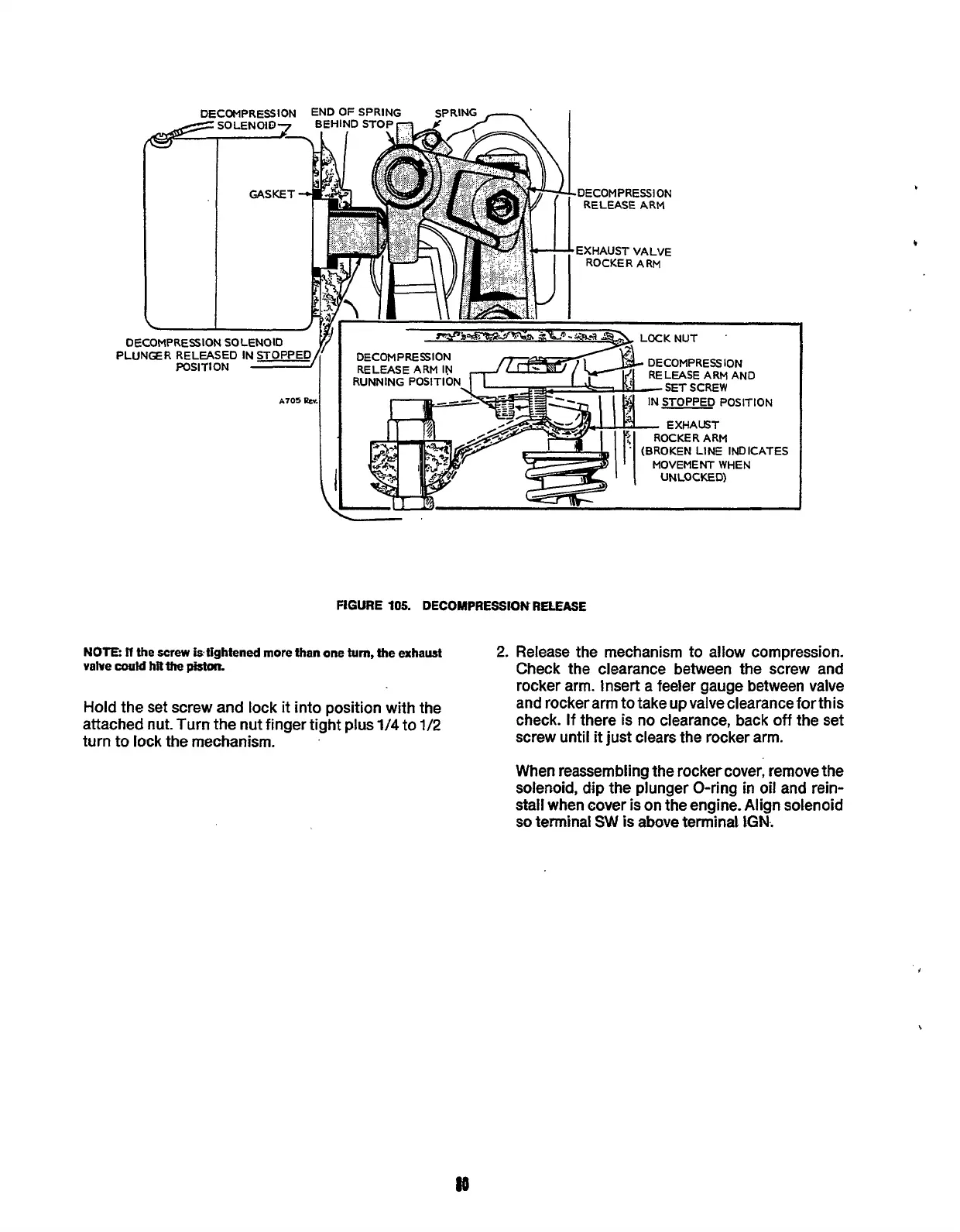

FIGURE
105.
DECOMPRESSION
RELEASE
NOTE:
If
the
screw
is
lightened
more
than
one
turn,
the
exhaust
vahre
could
hitthe
pistar.
Hold the set screw
and
lock it into position with the
attached nut. Turn the nut finger tight plus
1/4
to
1/2
turn to lock the mechanism.
2.
Release the mechanism to allow compression.
Check the clearance between the screw and
rocker arm. Insert a feeler gauge between valve
and rocker arm to take up valve clearance forthis
check.
If
there is no clearance, back
off
the set
screw until
it
just clears the rocker arm.
When reassembling the rockercover, remove the
solenoid,
dip
the plunger O-ring
in
oil
and rein-
stall when cover
is
on the engine. Align solenoid
so
terminal
SW
is
above terminal
1GN.
