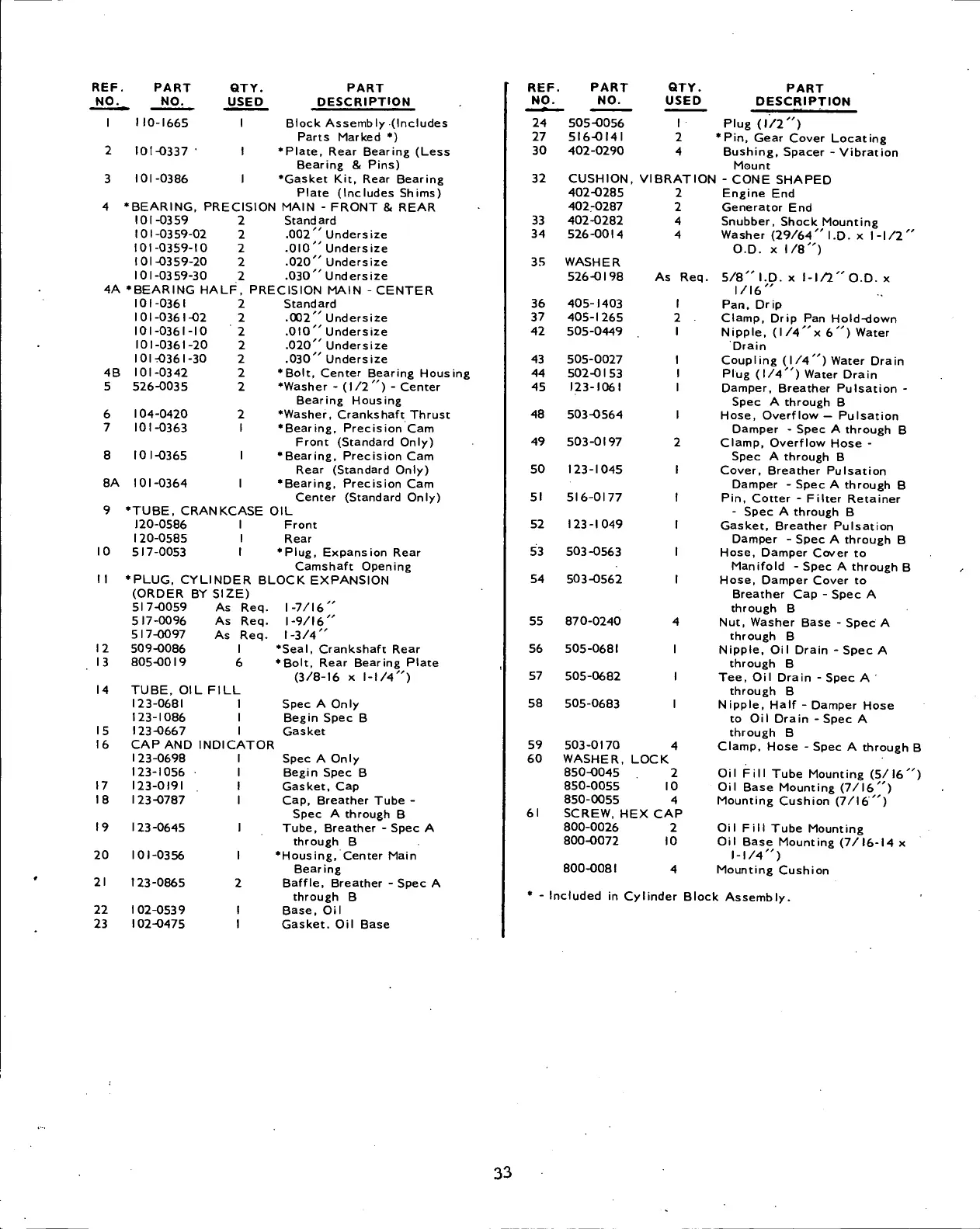

REF.
NO.
PART
NO.
I 10-1665
QTY.
PART
USED
DESCRIPTION
I Block Assembly (Includes
Parts Marked *)
2
101-0337 ' 1
•Plate,
Rear Bearing (Less
Bearing & Pins)
3 101-0386 1 •Gasket Kit, Rear Bearing
Plate (Includes Shims)
4
•BEARING, PRECISION MAIN - FRONT & REAR
101-0359 2
Standard
101-0359-02 2
.002"
Undersize
101-0359-10 2
.010"
Undersize
101-0359-20 2
.020"
Undersize
101-0359-30 2
.030"
Undersize
4A
•BEARING HALF, PRECISION MAIN - CENTER
101-0361 2 Standard
101-0361-02 2
.002"
Undersize
101-0361-10 2
.010"
Undersize
101-0361-20 2
.020"
Undersize
101^)361-30 2
.030"
Undersize
4B 101-0342 2 •Bolt, Center Bearing Housing
5
526-0035 2 •Washer - (1/2") - Center
Bearing Housing
6
104-0420 2
•Washer, Crankshaft Thrust
7
101-0363 1
•Bearing,
Precision Cam
Front (Standard Only)
8
101-0365 1
•Bearing,
Precision Cam
Rear (Standard Only)
8A
101-0364 1
•Bearing,
Precision Cam
Center (Standard Only)
9
•TUBE,
CRANKCASE OIL
120-0586 1
Front
120-0585 1 Rear
10
517-0053 1
•Plug,
Expansion Rear
Camshaft Opening
1 1
•PLUG,
CYLINDER BLOCK EXPANSION
(ORDER BY SIZE)
517-0059 As Req.
1-7/16"
517-0096 As Req.
1-9/16"
517-0097 As Req.
1-3/4"
12
509-0086 1
•Seal,
Crankshaft Rear
13
805-0019 6
•Bolt, Rear Bearing Plate
(3/8-16 x
1-1/4")
14
TUBE,
OIL FILL
123-0681 1 Spec A Only
123-1086 1 Begin Spec B
15 123-0667 1 Gasket
16
CAP AND INDICATOR
123-0698 1
Spec A Only
123-1056 1
Begin Spec B
17
123-0191 1
Gasket, Cap
18
123-0787 1
Cap,
Breather Tube -
Spec A through B
19
123-0645 1
Tube,
Breather - Spec A
through B
20
101-0356 1
•Housing,
Center Main
Bearing
21
123-0865 2
Baffle,
Breather - Spec A
through B
22
102-0539 1
Base,
Oil
23
102-0475 1 Gasket. Oil Base
REF.
NO.
PART
NO.
QTY.
USED
PART
DESCRIPTION
24
27
30
32
33
34
35
36
37
42
43
44
45
505-0056 I Plug (1/2")
516-0141 2
*Pin,
Gear Cover Locating
402-0290 4 Bushing, Spacer - Vibration
Mount
CUSHION,
VIBRATION - CONE SHAPED
Engine End
Generator End
Snubber, Shock Mounting
Washer (29/64" I.D. x
1-1/2'
O.D. x 1/8")
402-0285
402-0287
402-0282
526-0014
2
2
4
4
WASHER
526-0198
405-1403
405-1265
505-0449
505-0027
502-0153
123-1061
48 503-0564
49 503-0197
50 123-1045
51 516-0177
52 123-1049
53 503-0563
54 503-0562
55 870-0240
56 505-0681
57 505-0682
58 505-0683
59 503-0170 4
60 WASHER, LOCK
850-0045 2
850-0055 10
850-0055 4
61 SCREW, HEX CAP
800-0026 2
800-0072 10
800-0081 4
As Req. 5/8" I.D. x
1-1/2"
O.D. x
1/16"
1 Pan. Drip
2 Clamp, Drip Pan Hold-down
I Nipple, (l/4"x 6") Water
Drain
I Coupling (1/4") Water Drain
I Plug (1/4") Water Drain
I Damper, Breather Pulsation -
Spec A through B
1 Hose, Overflow — Pulsation
Damper - Spec A through B
2 Clamp, Overflow Hose -
Spec A through B
I Cover, Breather Pulsation
Damper - Spec A through B
I Pin, Cotter - Filter Retainer
- Spec A through B
I Gasket, Breather Pulsation
Damper - Spec A through B
I Hose, Damper Cover to
Manifold - Spec A through B
I Hose, Damper Cover to
Breather Cap - Spec A
through B
4 Nut, Washer Base - Spec A
through B
I Nipple, Oil Drain - Spec A
through B
I Tee, Oil Drain - Spec A
through B
I N ipple, Half - Damper Hose
to Oi I Drain - Spec A
through B
Clamp, Hose - Spec A through B
Oil Fill Tube Mounting (5/16")
Oil Base Mounting (7/16")
Mounting Cushion (7/16")
Oil Fill Tube Mounting
Oil Base Mounting (7/16-14 x
1-1/4")
Mounting Cushion
- Included in Cylinder Block Assembly.
33
