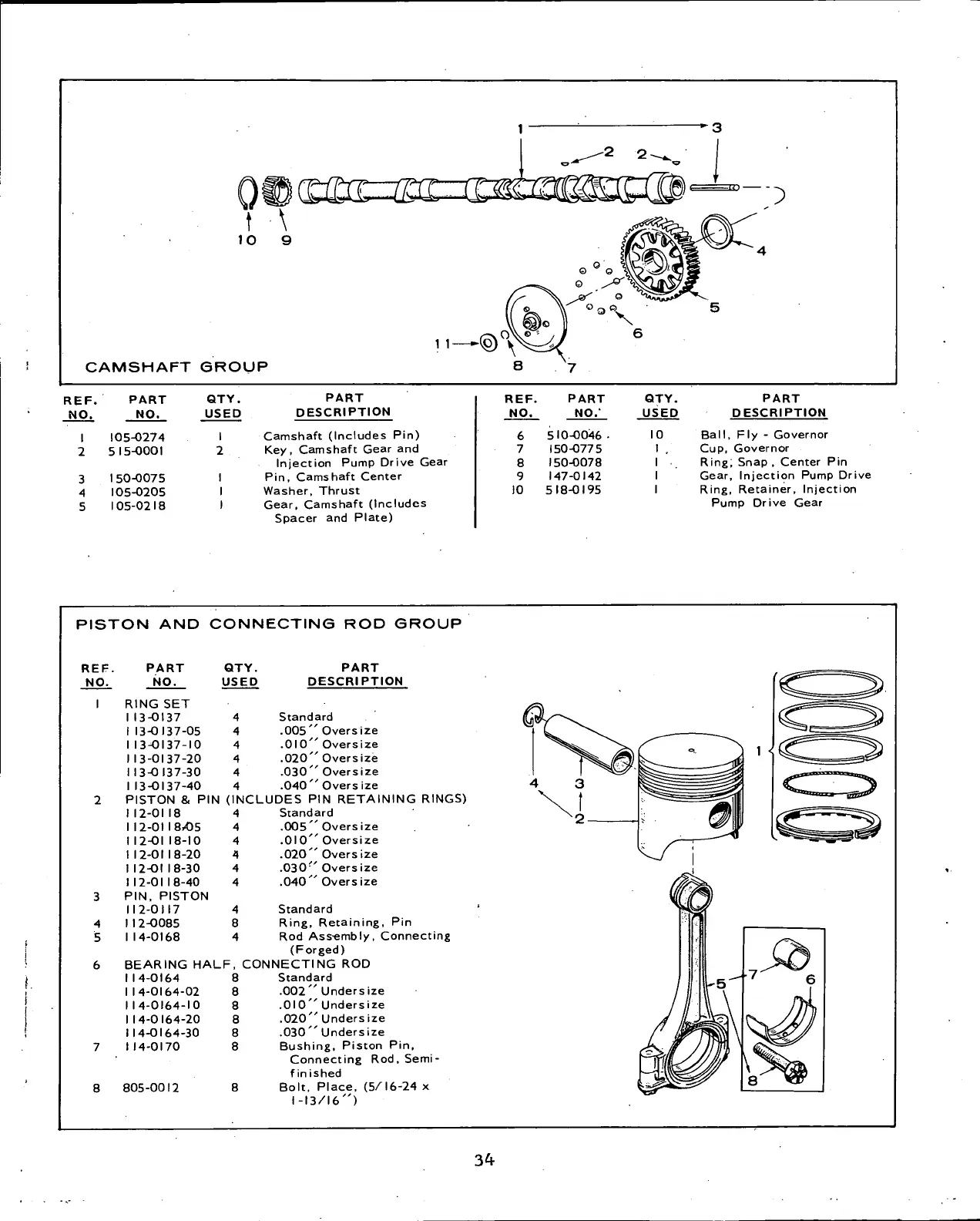

I
2
3
4
5
105-0274
515-0001
I 50-0075
105-0205
105-0218
Camshaft (Includes Pin)
Key, Camshaft Gear and
Injection Pump Drive Gear
Pin, Camshaft Center
Washer, Thrust
Gear, Camshaft (Includes
Spacer and Plate)
REF.
PART QTY.
NO. NO.' USED
6
510-0046 •
10
7
150-0775
1 ,
8
150-0078
1
9 147-0142
1
10 518-0195
1
PART
DESCRIPTION
Ball, Fly - Governor
Cup, Governor
Ring, Snap, Center Pin
Gear, Injection Pump Drive
Ring, Retainer, Injection
Pump Drive Gear
PISTON AND CONNECTING ROD GROUP
REF.
NO.
PART
NO.
QTY.
USED
PART
DESCRIPTION
RING SET
I 13-0137
I 13-0 137-05
I 13-0137-10
I 13-0137-20
I 13-0137-30
I 13-0137-40
PISTON & PIN (
I 12-0118
I 12-01 18,05
I 12-01 18-10
112-01 18-20
I 12-01 18-30
112-0118-40
PIN, PISTON
112-0117
I 12-0085
I 14-0168
BEARING HALF,
Standard
.005" Oversize
.010" Oversize
.020" Oversize
.030" Oversize
.040 "Overs ize
4
4
4
4
4
4
INCLUDES PIN RETAINING RINGS)
4 Standard
4 .005" Oversize
4 .010" Oversize
4 . 020" Oversize
4 .030" Oversize
4 .040" Oversize
4 Standard
8 Ring, Retaining, Pin
4 Rod Ass-embly, Connecting
(Forged)
CONNECTING ROD
1 14-0164 8
Standard
114-0164-02 8
.002" Undersize
1 14-0164-10
8
.010" Undersize
1 14-0164-20
8
.020" Undersize
1 14-0164-30
8
.030" Undersize
114-0170 8
Bushing, Piston Pin
8 805-0012
Connecting Rod, Semi-
fin ished
Bolt, Place, (5/16-24 x
1-13/16")
34
