Onan NH Series User Manual

2
3
4
5
6
7
8
9
10
11
12
13
110-1835
123-0954
123-0645
123-0865
110-1624
110-1720
517-0048
520-0736
110-1731
110-1905
110-1906

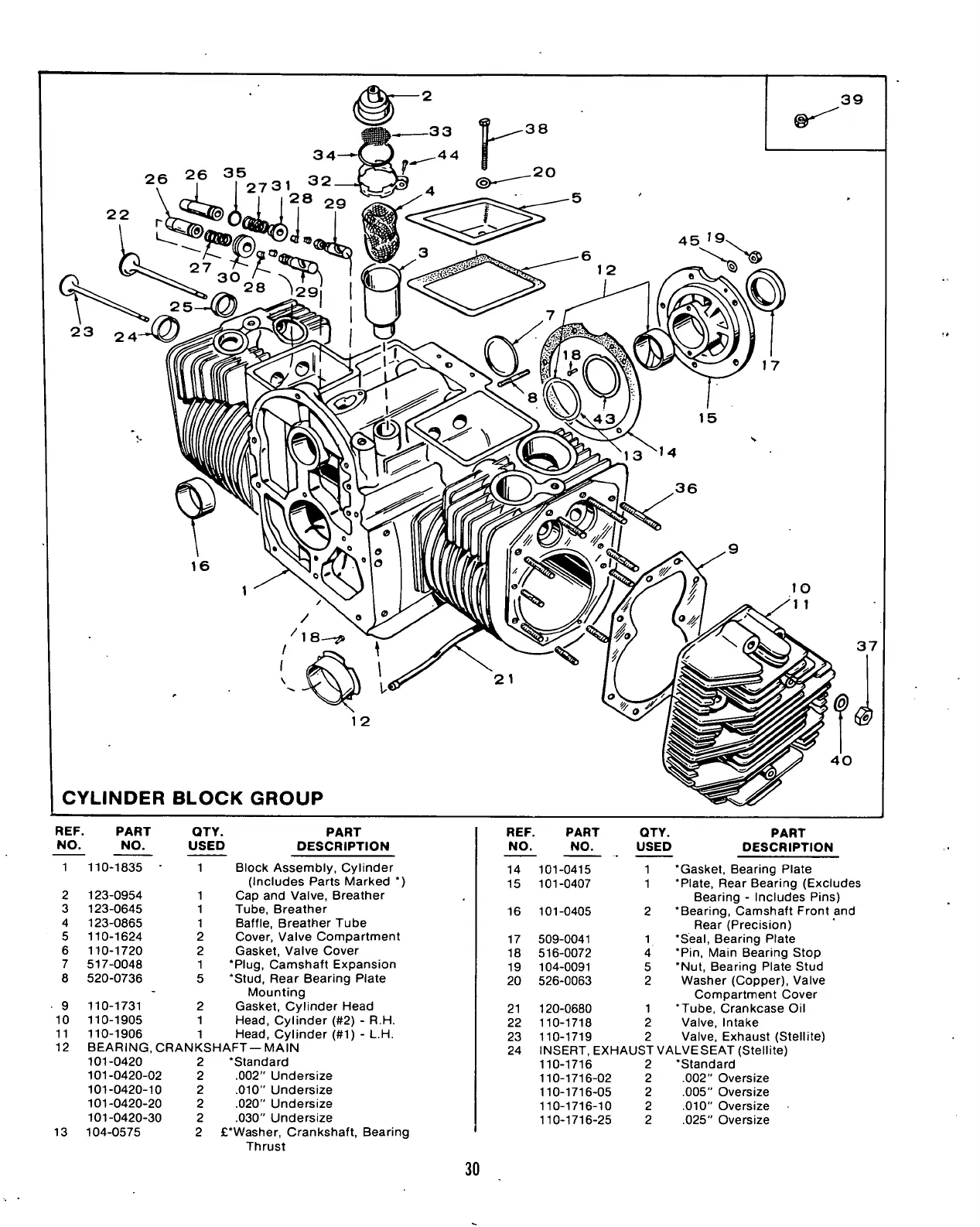

BEARING, CRANKSHAFT— MAIN
101-0420 2 "Standard
101-0420-02 2 .002" Undersize
101-0420-10 2 .010" Undersize
101-0420-20 2 .020" Undersize
101-0420-30 2 .030" Undersize
104-0575 2 £*Washer, Crankshaft, Bearing
Thrust
Block Assembly, Cylinder
(Includes Parts Marked *)
1 Cap and Valve, Breather
1 Tube, Breather
1 Baffle, Breather Tube
2 Cover, Valve Compartment
2 Gasket, Valve Cover
1 "Plug, Camshaft Expansion
5 *Stud, Rear Bearing Plate
Mounting
2 Gasket, Cylinder Head
1 Head, Cylinder (#2) - R.H.
1 Head, Cylinder (#1) - L.H.
14 101-0415
15 101-0407
16 101-0405
17 509-0041
18 516-0072
19 104-0091
20 526-0063
21 120-0680
22 110-1718
23 110-1719
24 INSERT, EXHAUST
110-1716
110-1716-02
110-1716-05
110-1716-10
110-1716-25
"Gasket, Bearing Plate
"Plate, Rear Bearing (Excludes
Bearing - Includes Pins)
"Bearing, Camshaft Front and
Rear (Precision)
"Seal, Bearing Plate
"Pin, Main Bearing Stop
"Nut, Bearing Plate Stud
Washer (Copper), Valve
Compartment Cover
"Tube, Crankcase Oil
Valve, Intake
Valve, Exhaust (Stellite)
VALVESEAT (Stellite)
"Standard
.002" Oversize
.005" Oversize
.010" Oversize
.025" Oversize
30

Onan NH Series Specifications

General

Frequency	60 Hz
Engine Type	4-Cycle
Fuel Type	Gasoline
Starting System	Electric
Voltage	120/240V
Noise Level	72 dB(A) at 7 meters
Fuel Consumption	0.5-1.0 gal/hr (gasoline)
