Onan NH Series User Manual

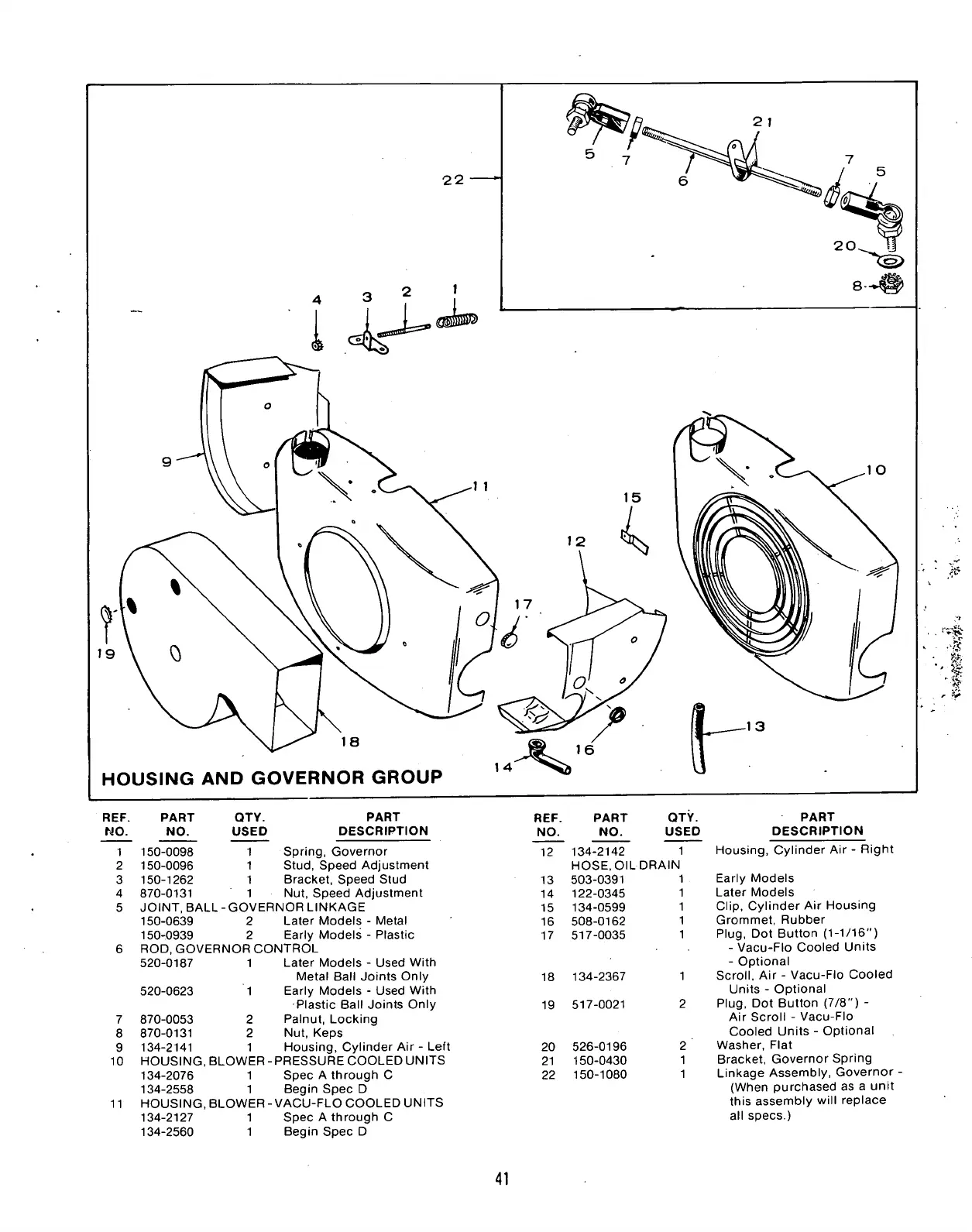

REF. PART QTY.
PART
REF. PART
QTY.
PART
NO. NO.
USED
DESCRIPTION
NO. NO.
USED
DESCRIPTION
1
150-0098
1
Spring, Governor
12
134-2142
1
Housing, Cylinder Air - Right
2
150-0096
1 Stud, Speed Adjustment HOSE, OIL DRAIN
3 150-1262
1 Bracket, Speed Stud
13
503-0391
1 Early Models
4 870-0131 1 Nut, Speed Adjustment
14
122-0345 1 Later Models
5 JOINT, BALL
GOVERNOR LINKAGE
15
134-0599
1 Clip, Cylinder Air Housing
150-0639 2
Later Models - Metal
16
508-0162
1 Grommet, Rubber
150-0939
2
Early Models - Plastic
17 517-0035
1 Plug, Dot Button (1-1/16")
6
ROD, GOVERNOR CONTROL
- Vacu-Flo Cooled Units
520-0187
1 Later Models - Used With
- Optional
Metal Ball Joints Only
18
134-2367
1 Scroll, Air - Vacu-Flo Cooled
520-0623
1 Early Models - Used With
Units - Optional
•Plastic Ball Joints Only
19
517-0021
2 Plug, Dot Button (7/8") -
7 870-0053 2
Palnut, Locking
Air Scroll - Vacu-Flo
8
870-0131 2 Nut, Keps
Cooled Units - Optional
9
134-2141 1
Housing, Cylinder Air - Left
20
526-0196 2 Washer, Flat
10
HOUSING, BLOWER-
PRESSURE COOLED UNITS
21
150-0430 1 Bracket, Governor Spring
134-2076 1
Spec A through C 22
150-1080
1
Linkage Assembly, Governor
134-2558
1 Begin Spec D
(When purchased as a unit
11
HOUSING, BLOWER-
VACU-FLO COOLED UNITS
this assembly will replace
134-2127
1 Spec A through C
all specs.)
134-2560
1 Begin Spec D
