Onan NH Series User Manual

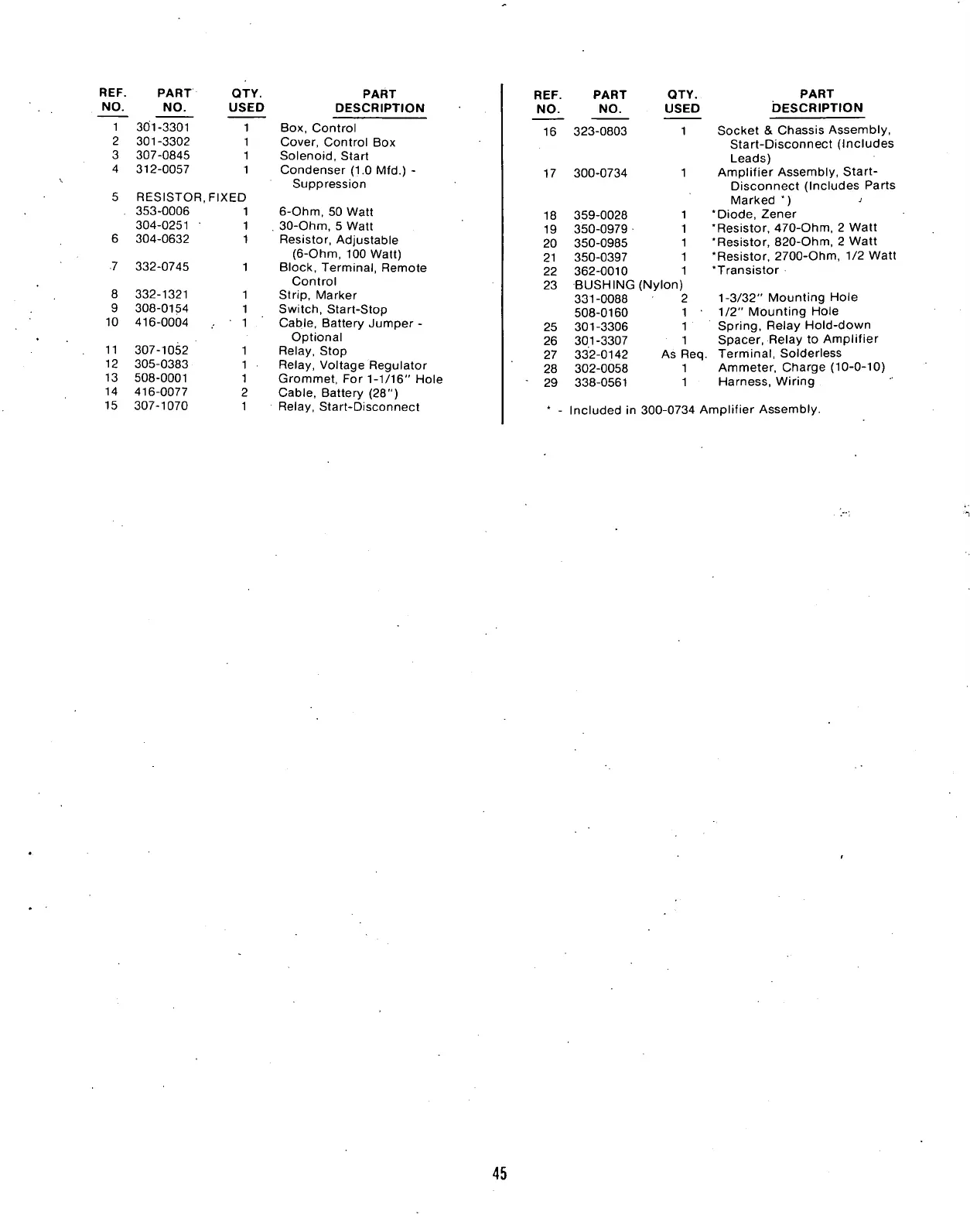

REF.
PART QTY.
PART
NO.
NO. USED
DESCRIPTION
1
301-3301
1
Box, Control
2
301-3302
1
Cover, Control Box
3
307-0845
1
Solenoid, Start
4
312-0057
1
Condenser (1.0 Mfd.) -
Suppression
5
RESISTOR, FIXED
353-0006
1
6-Ohm, 50 Watt
304-0251 •
1
. 30-Ohm, 5 Watt
6
304-0632
1
Resistor, Adjustable
(6-Ohm, 100 Watt)
7
332-0745
1
Block, Terminal, Remote
Control
8
332-1321
1
Strip, Marker
9
308-0154
1
Switch, Start-Stop
10
416-0004
' '
1
'
Cable, Battery Jumper -
Optional
11
307-1052
1
Relay, Stop
12
305-0383
1
Relay, Voltage Regulator
13
508-0001
1
Grommet, For 1-1/16" Hole
14
416-0077
2
Cable, Battery (28")
15
307-1070
1
Relay, Start-Disconnect
REF.
PART
QTY.
PART
NO.
NO.
USED
DESCRIPTION
16
323-0803
1
Socket & Chassis Assembly,
Start-Disconnect (Includes
Leads)
17
300-0734 1
Amplifier Assembly, Start-
Disconnect (Includes Parts
Marked *) J
18
359-0028
1
'Diode, Zener
19
350-0979
1
•Resistor, 470-Ohm, 2 Watt
20
350-0985
1
"Resistor, 820-Ohm, 2 Watt
21
350-0397
1
•Resistor, 2700-Ohm, 1/2 Watt
22
362-0010
1
"Transistor
23
BUSHING (Nylon)
331-0088
2
1-3/32" Mounting Hole
508-0160 1 '
1/2" Mounting Hole
25
301-3306
1
Spring, Relay Hold-down
26
301-3307
1
Spacer, Relay to Amplifier
27
332-0142
As Req.
Terminal, Solderless
28
302-0058
1
Ammeter, Charge (10-0-10)
29 338-0561
1
Harness, Wiring
Included in 300-0734 Amplifier Assembly.
45

Onan NH Series Specifications

General

Frequency	60 Hz
Engine Type	4-Cycle
Fuel Type	Gasoline
Starting System	Electric
Voltage	120/240V
Noise Level	72 dB(A) at 7 meters
Fuel Consumption	0.5-1.0 gal/hr (gasoline)
