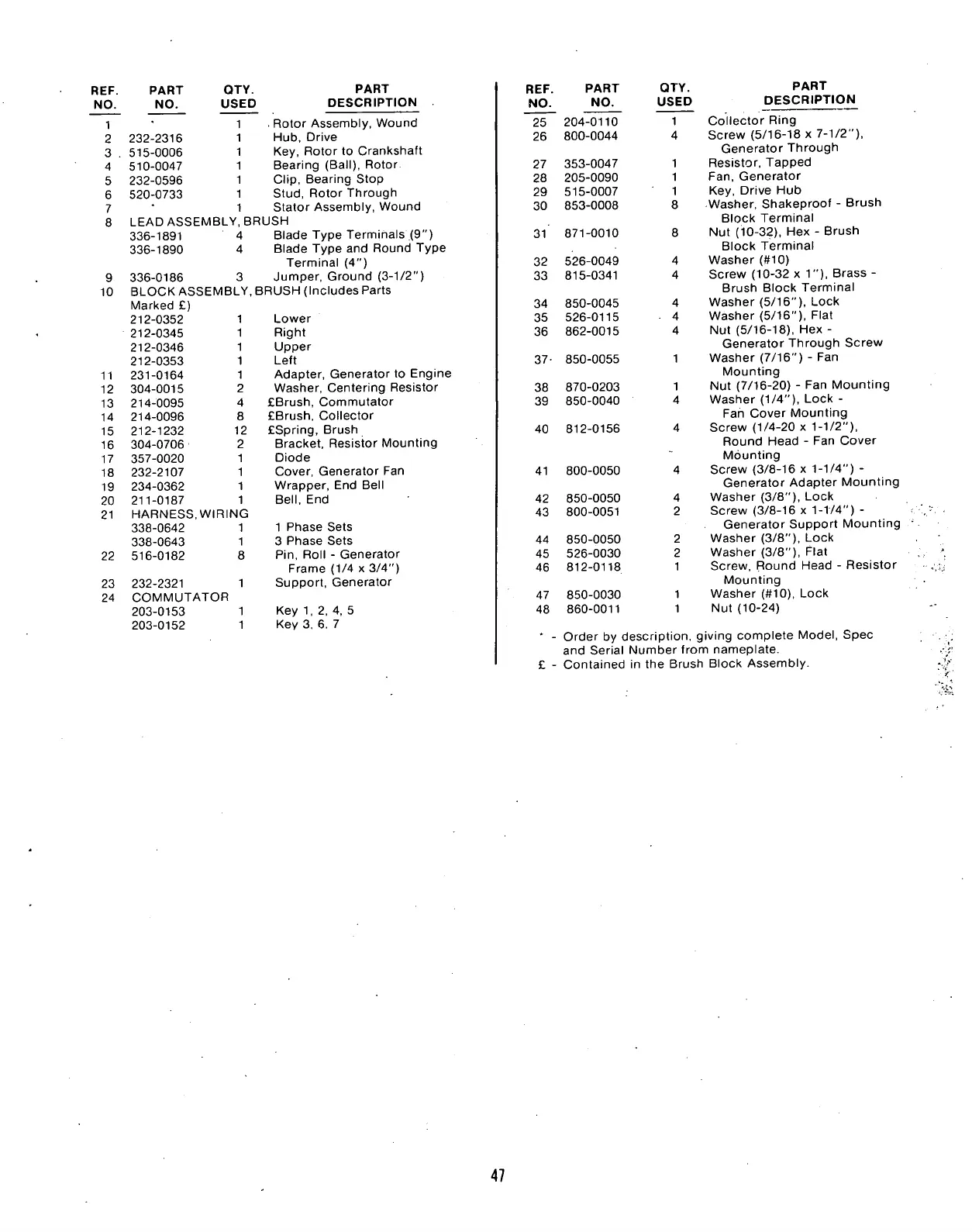

REF.
NO.
1
2
3
4
5
6
7
PART
NO.
QTY.
USED
PART
DESCRIPTION
23
24
1 . Rotor Assembly, Wound
232-2316 1 Hub, Drive
515-0006 1 Key, Rotor to Crankshaft
510-0047 1 Bearing (Ball), Rotor
232-0596 1 Clip, Bearing Stop
520-0733 1 Stud, Rotor Through
1 Stator Assembly, Wound
8 LEAD ASSEMBLY, BRUSH
336-1891 4 Blade Type Terminals (9")
336-1890 4 Blade Type and Round Type
Terminal (4")
9 336-0186 3 Jumper, Ground (3-1/2")
10 BLOCK ASSEMBLY, BRUSH (Includes Parts
Marked £)
212-0352 1 Lower
212-0345 1 Right
212-0346 1 Upper
212-0353 1 Left
11 231-0164 1 Adapter, Generator to Engine
12 304-0015 2 Washer, Centering Resistor
13 214-0095 4 £Brush, Commutator
14 214-0096 8 £Brush, Collector
15 212-1232 12 £Spring, Brush
16 304-0706 2 Bracket, Resistor Mounting
17 357-0020 1 Diode
18 232-2107 1 Cover, Generator Fan
19 234-0362 1 Wrapper, End Bell
20 211-0187 1
Bell,
End
21 HARNESS,WIRING
338-0642 1
338-0643 1
22
516-0182
8
232-2321
COMMUTATOR
203-0153
203-0152
1 Phase Sets
3 Phase Sets
Pin,
Roll - Generator
Frame (1/4 x 3/4")
Support, Generator
Key 1, 2, 4, 5
Key 3. 6. 7
REF.
PART
QTY.
PART
NO.
NO.
USED
DESCRIPTION
25
204-0110
1
Collector Ring
26
800-0044
4 Screw (5/16-18 x 7-1/2"),
Generator Through
27
353-0047 1
Resistor, Tapped
28
205-0090
1
Fan,
Generator
29
515-0007
1
Key, Drive Hub
30
853-0008
8
Washer, Shakeproof - Brush
Block Terminal
31
871-0010
8
Nut (10-32), Hex - Brush
Block Terminal
32
526-0049
4
Washer (#10)
33
815-0341
4
Screw (10-32 x 1"), Brass -
Brush Block Terminal
34
850-0045
4
Washer (5/16"), Lock
35
526-0115
. 4
Washer (5/16"), Flat
36
862-0015
4 Nut (5/16-18), Hex -
Generator Through Screw
37-
850-0055
1
Washer (7/16") - Fan
Mounting
38
870-0203
1 Nut (7/16-20) - Fan Mounting
39
850-0040
4
Washer (1/4"), Lock -
Fan Cover Mounting
40
812-0156
4
Screw (1/4-20 x
1-1/2"),
Round Head - Fan Cover
Mounting
41
800-0050
4 Screw (3/8-16 x
1-1/4")
-
Generator Adapter Mountin
42
850-0050
4
Washer (3/8"), Lock
43
800-0051
2
Screw (3/8-16 x
1-1/4")
-
Generator Support Mountin
44 850-0050
2
Washer (3/8"), Lock
45
526-0030
2
Washer (3/8"), Flat
46
812-0118
1
Screw, Round Head - Resisto
Mounting
47 850-0030
1 Washer (#10), Lock
48
860-0011
1 Nut (10-24)
' - Order by description, giving complete Model, Spec
and Serial Number from nameplate.
£ - Contained in the Brush Block Assembly.
47
