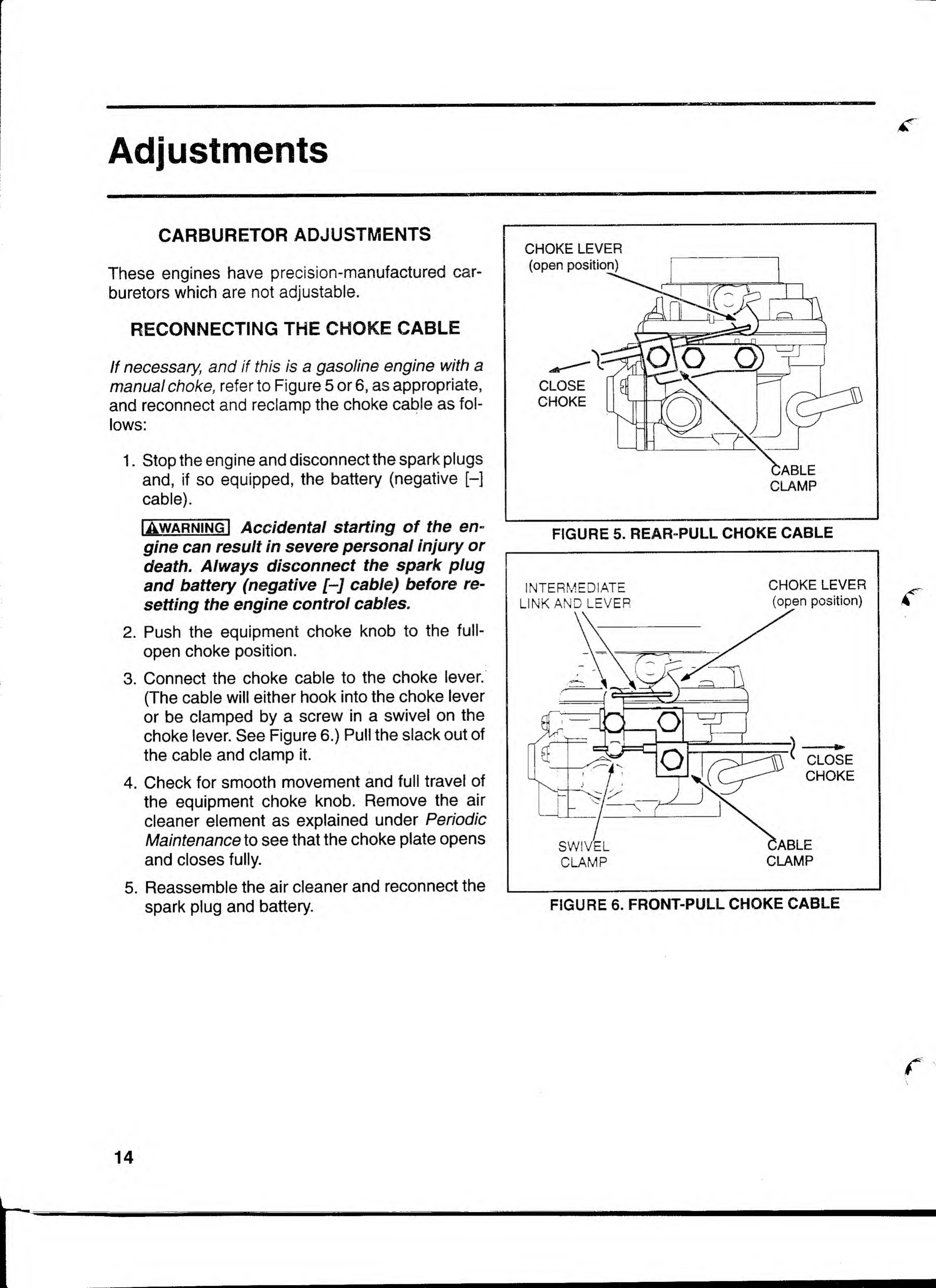

CARBURETOR
ADJUSTMENTS
These
engines
have
precision-manufactured
car¬
buretors
which
are
not
adjustable.
RECONNECTING
THE
CHOKE
CABLE
If
necessary,
and
if
this
is
a
gasoline
engine
with
a
manual
choke,
refer
to
Figure
5
or
6,
as
appropriate,
and
reconnect
and
reclamp
the
choke
cable
as
fol¬
lows:
1
.
Stop
the
engine
and
disconnect
the
spark
plugs
and,
if
so
equipped,
the
battery
(negative
[-]
cable).
IAwarningI
Accidental
starting
of
the
en¬
gine
can
result
in
severe
personal
injury
or
death.
Always
disconnect
the
spark
plug
and
battery
(negative
[-]
cable)
before
re¬
setting
the
engine
control
cables.
2.
Push
the
equipment
choke
knob
to
the
full-
open
choke
position.
3.
Connect
the
choke
cable
to
the
choke
lever.
(The
cable
will
either
hook
into
the
choke
lever
or
be
clamped
by
a
screw
in
a
swivel
on
the
choke
lever.
See
Figure
6.)
Pull
the
slack
out
of
the
cable
and
clamp
it.
4.
Check
for
smooth
movement
and
full
travel
of
the
equipment
choke
knob.
Remove
the
air
cleaner
element
as
explained
under
Periodic
Maintenance
to
see
that
the
choke
plate
opens
and
closes
fully.
5.
Reassemble
the
air
cleaner
and
reconnect
the
spark
plug
and
battery.
CHOKE
LEVER
(open
position)
\'
ovo
CLOSE
CHOKE
CABLE
CLAMP
FIGURE
5.
REAR-PULL
CHOKE
CABLE
INTERMEDIATE
LINK
AND
LEVER
CHOKE
LEVER
(open
position)
p
o
CLOSE
CHOKE
SWIVEL
CLAMP
CABLE
CLAMP
FIGURE
6.
FRONT-PULL
CHOKE
CABLE
\
14
