OIL DRAIN EXTENSION
For service convenience, install a short (less than
10
inches [254 mm]) oil drain extension made from
standard pipe and fittings in the 1/2-inch (12.70
mm)
pipe-tapped oil drain hole in the base.
FUEL FILTER
FllEL PUMP
BALL JOINT
BREATHER
\%
HOSE
CAP AND VALVE
BREATHER TUBE
RDJE BREATHER TUBE
AMP'
OIL FILTER CHANGE
Place pan under old filter and remove by turning
counterclockwise. Clean filter mounting area.
Lubricate gasket on new filter with oil and screw filter
on clockwise until gasket touches mounting base,
then tighten
1/2
turn.
Never remove
011
level Indicator cap with the
engine running, because oil will blow out
of
the tube causing possible Injury.
OIL LEVEL INDICATOR
INLET OUTLET
ONDARY
FILTER
FILTER
DUAL
FUEL
FILTER SYSTEM
TO BREATHERJ TUBE
L.2.
RDJEA BREATHER PiPE

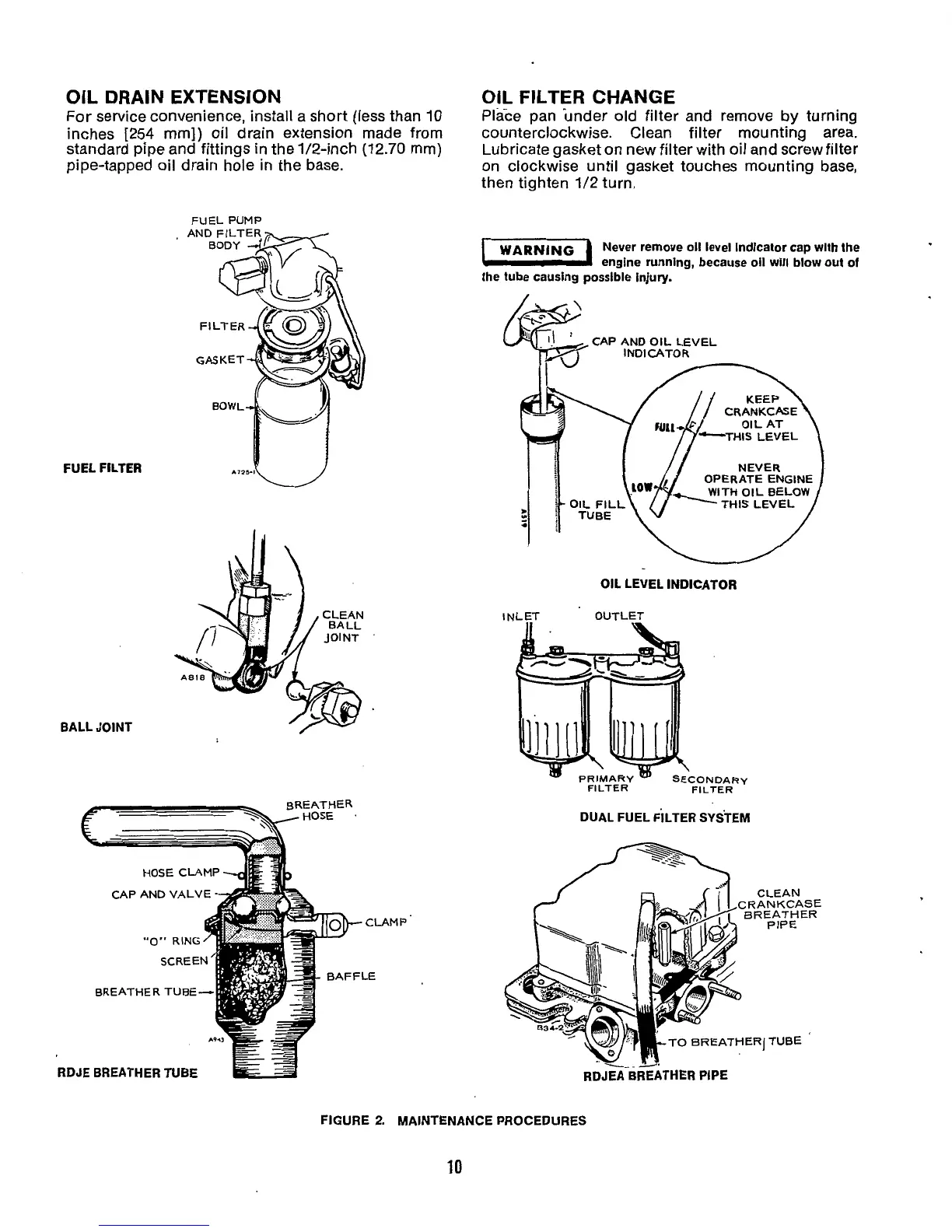

FIGURE
2.
MAINTENANCE PROCEDURES
