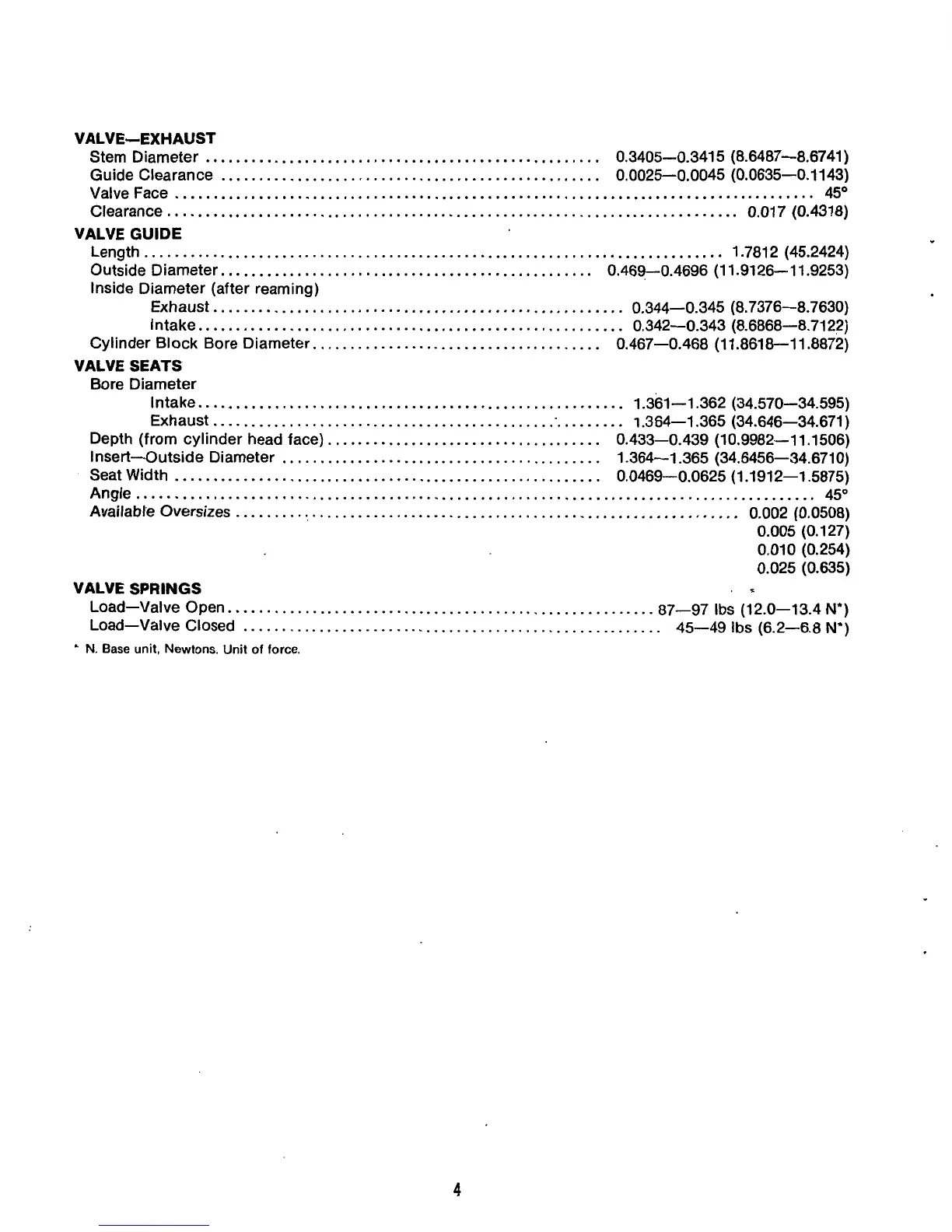

VALVE-EXHAUST
Stem Diameter
.................................................... 0.3405-0.3415 (8.6487-8.6741)
Guide Clearance .................................................. 0.0025-0.0045 (0.0635-0.1143)
Valve Face .................................................................................... 45'
Clearance ........................................................................... 0.017 (0.4318)
Length ............................................................................ 1.7812 (45.2424)
Outside Diameter ................................................. 0.469-0.4696 (11.9126-11.9253)
Exhaust ...................................................... 0,344-0.345 (8.7376-8.7630)
Intake ........................................................ 0.342-0.343 (8.6868-8.7122)
Cylinder Block Bore Diameter ...................................... 0.467-0.468 (11.8618-11.8872)
Bore Diameter
intake
........................................................ 1.361-1.362 (34.570-34.595)
Exhaust ....................................................... 1.364-1.365 (34.646-34.671)
Depth (from cylinder head face) .................................... 0.433-0.439 (10.9982-1 1.1506)
I nsert-Outside Diameter .......................................... 1.364-1.365 (34.6456-34.671 0)
Seat Width ........................................................ 0.0469-0.0625 (1.1912-1.5875)
Angle ......................................................................................... 45'
Available Oversizes .................................................................. 0.002 (0.0508)
VALVE GUIDE
Inside Diameter (after reaming)
VALVE SEATS
0.005 (0.127)
0.010 (0.254)
0.025
(0.635)
VALVE SPRINGS . *
Load-Valve Open ....................................................... -87-97 Ibs (12.0-13.4 N*)
Load-Valve Closed ....................................................... 45-49 ibs (6.2-6.8 N')
N . Base unit . Newtons . Unit of force .
