Clean the board with fresh water after every use. Introduce grease into the
stator bearings through the greasing screw periodically. Keep the battery
power connectors dry and clean.
Always manipulate the impeller with extreme caution as its sharp edges could
cause injuries.
Do never activate the board while replacing the impeller as it could cause
damage to the JetPack.

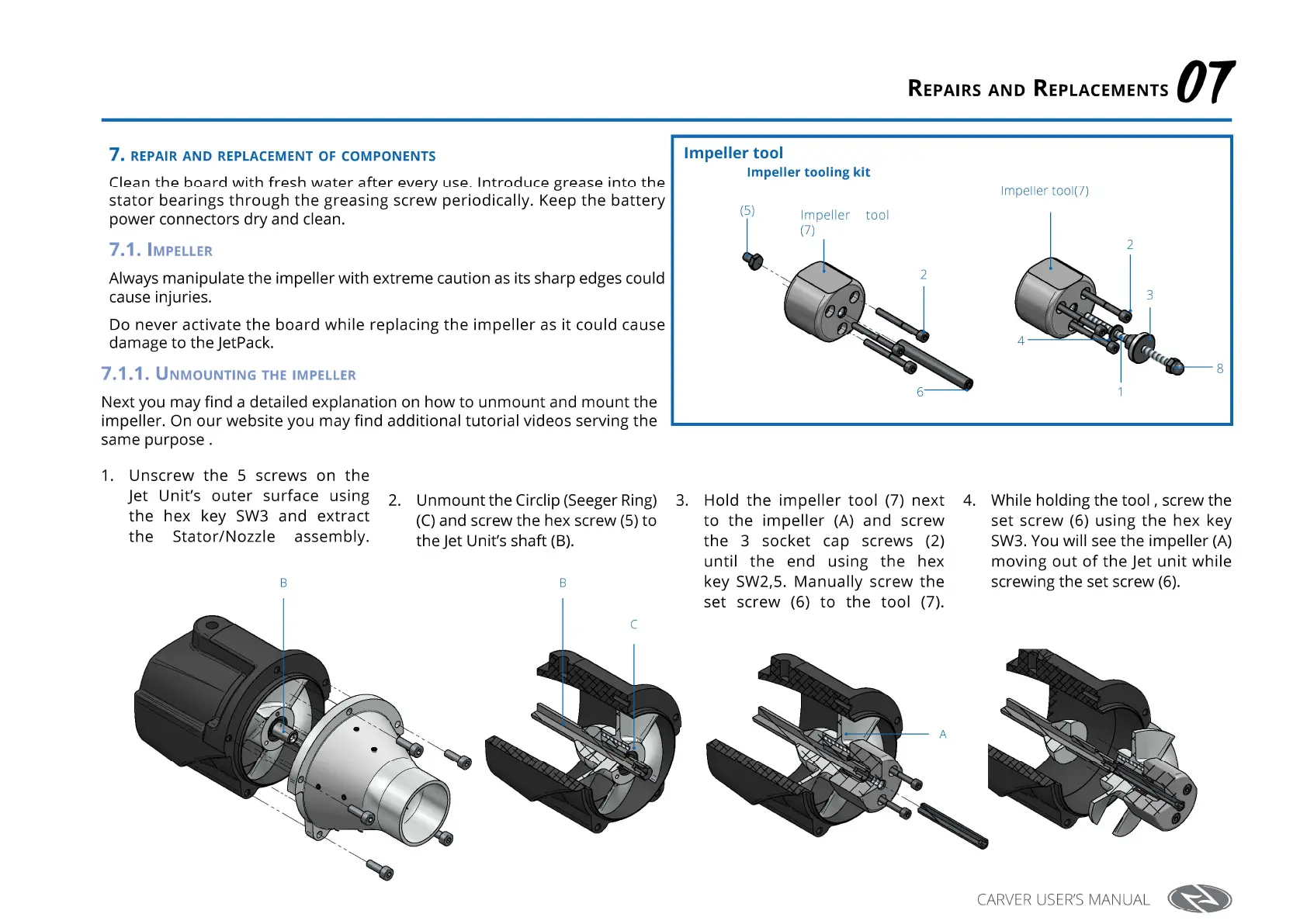

Impeller tool
1. Unscrew the 5 screws on the
Jet Unit’s outer surface using
the hex key SW3 and extract
the Stator/Nozzle assembly.
2. Unmount the Circlip (Seeger Ring)
(C) and screw the hex screw (5) to
the Jet Unit’s shaft (B).
3. Hold the impeller tool (7) next
to the impeller (A) and screw
the 3 socket cap screws (2)
until the end using the hex
key SW2,5. Manually screw the
set screw (6) to the tool (7).
4. While holding the tool , screw the
set screw (6) using the hex key
SW3. You will see the impeller (A)
moving out of the Jet unit while
screwing the set screw (6).
Next you may fi nd a detailed explanation on how to unmount and mount the
impeller. On our website you may fi nd additional tutorial videos serving the
same purpose .
(5)
Impeller tool
(7)
Impeller tool(7)
2
4
6
2
3
8
1
B B
C
A
Impeller tooling kit
