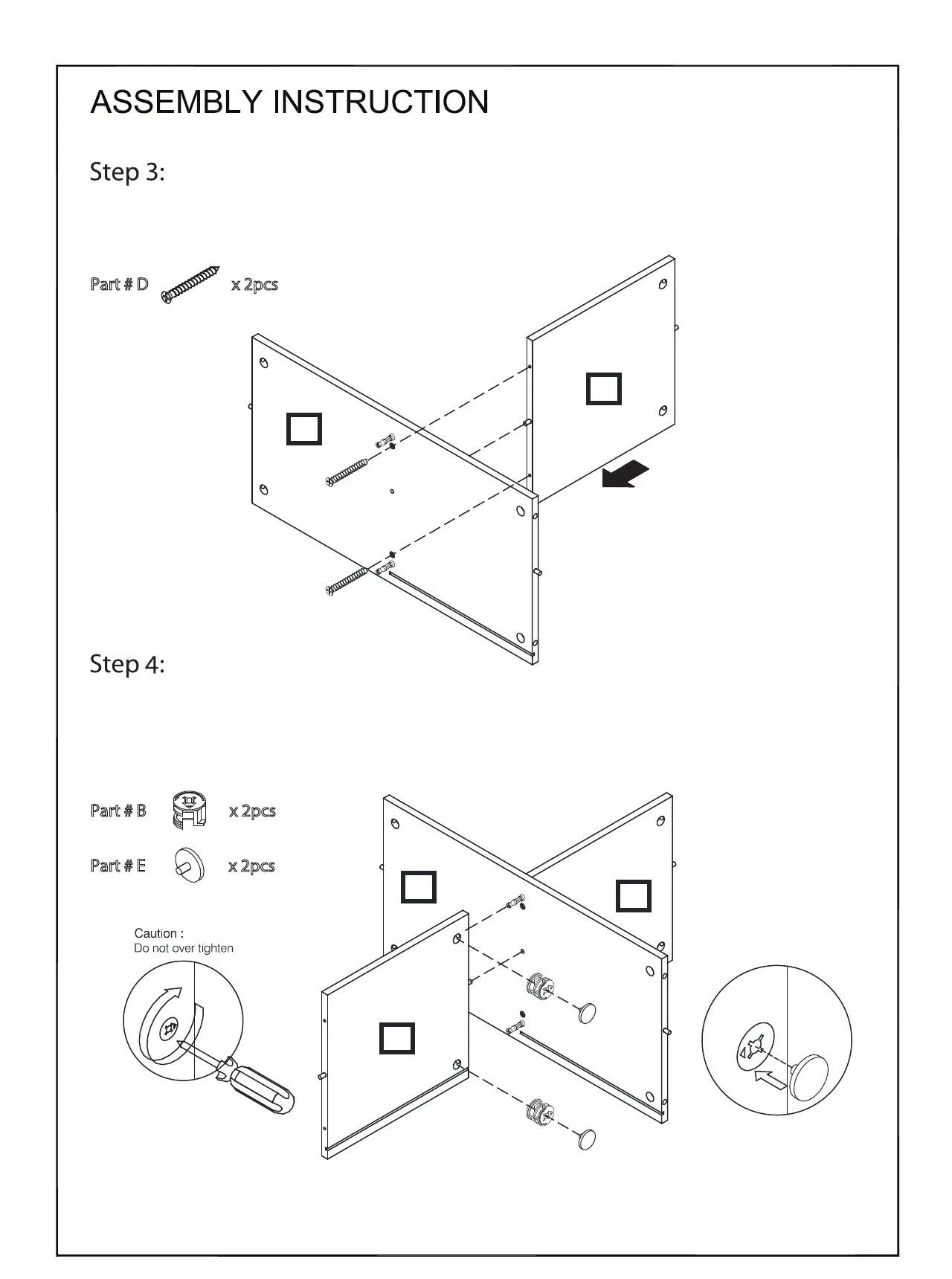

Use two CSK Screws (D) to attach the Shelf Panel (5) and Center Panel Top (6). Make sure that the grooves
for the Back Panel are aligned. (These grooves are on the sides not shown in the drawing below).
Insert the Minix Cams (B) into the Center Panel Bottom (7). Attach the Center Panel Bottom (7)
to the Shelf Panel (5). While doing this make sure that the grooves for the Back Panel are aligned.
Tighten the two Minix Cams (B) clockwise and then cover them with Cam Caps (E).
6
5
Part # D x 2pcs
Part # B x 2pcs
6
5
7
Part # E x 2pcs
5 OF 10
