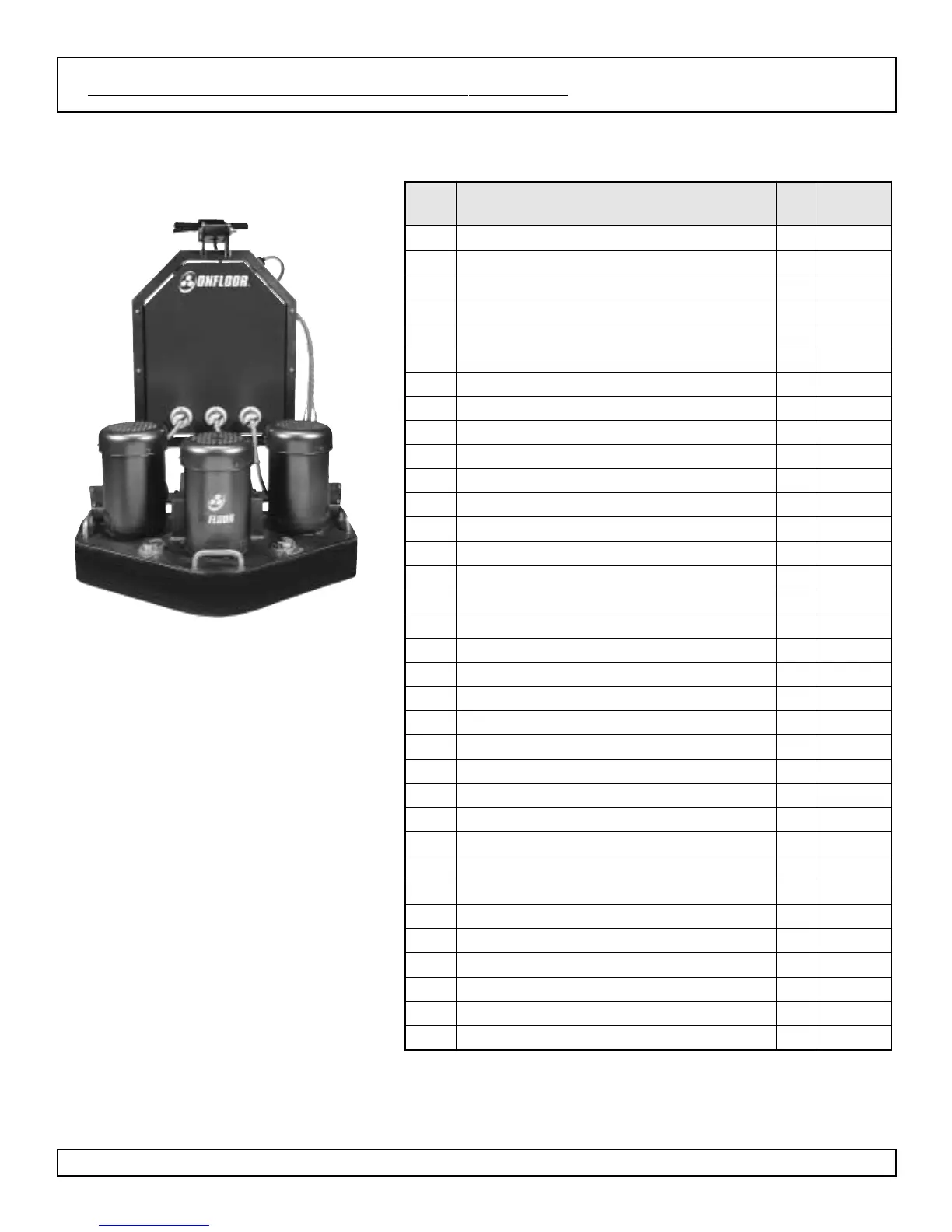

PAGE 8
ELECTRICAL & HANDLE PARTS LIST
Ref
No
Part Description Qty
Part
No
1 Speed Pin Assembly 1 217468
2
1
/
2
” - 12 X 4
3
/
4
” Hex Bolt 1 215198
3
1
/
2
” Flat Steel Washer 2 215201
4
1
/
2
” - 13 Nylok Nut 1 215228
5 30” Rear Frame 1 221597
6
1
/
4
” - 20 Nylok Nut 6 380784
7
3
/
4
” X 1” Shoulder Screw 2 463426
8
3
/
4
”X 1
1
/
2
” Flat Steel Washer 4 463507
9 Bronze Bushing 2 475513
10 .125 X 2
1
/
2
” Cotter Pin 2 463515
11 8” X 2” Gray Wheel 2 463434
12
1
/
4
” - 20 Hex Bolt 2 493945
13 Motor Housing Support Arm 2 223301
14 10 - 24 Hex Nut 20 331201
15
1
/
4
”-20 X 4” Hex Bolt 6 307785
16 480V, 30A-3 Pole Female Twist Lok Receptacle 1 220337
17 10 - 24 x .62 Screw 35 221023
18 Nylok Nut 2 380784
19 Hitch 1 227463
20 480V, 30A-3 Pole Female Twist Lok Receptacle 5 220345
21 480V, 15AMP Circuit Breaker 1 232432
22 480V, 30AMP Circuit Breaker 1 220213
23 Speed Pin Assembly 1 217476
24 #6-32 X .37 Phillips Screw 22 377155
25 480V, 7.5A-3 Pole Circuit Breaker 2 220221
26 Control Box 1 220655
27 Digital Volt Meter Panel 1 225444
28 #6-32 X 1” Philip Screw 2 335576
29 #6 Int Tooth Lockwasher 2 355224
30 25 AMP Micro Switch w/Hex Nuts 1 469629
31 Handle Assembly 1 463647
32 480V, 30A Male Electrical Plug & Sleeve 1 223050
33 .37-16 x 11/2” Hex Bolt 8 437336
34 .37 - 16 Nylok Nut 8 480789
To Next Page
