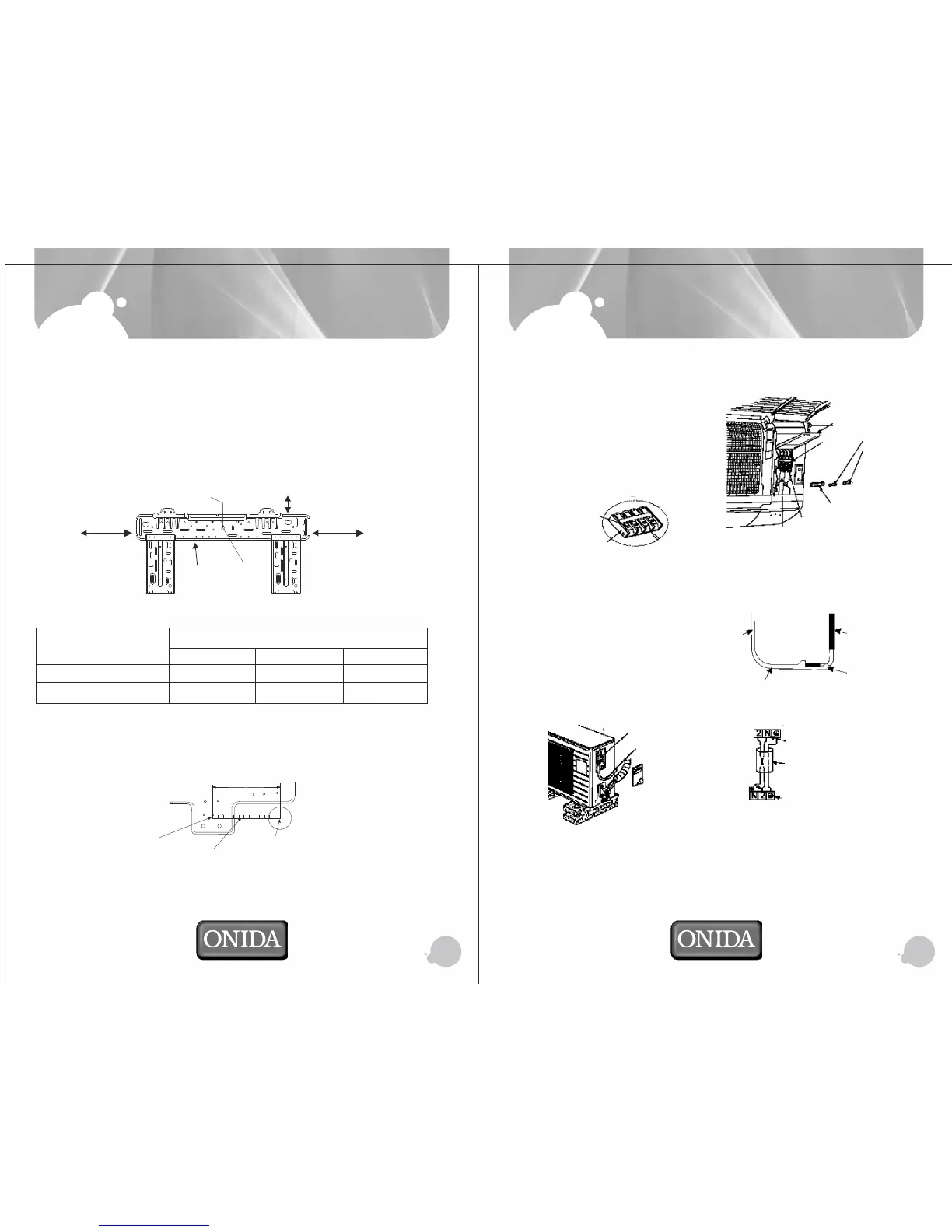

INSTALLATION
INSTALLATION
n INDOOR UNIT
1. Fitment of mounting plate
The mounting plate should be fitted on the structural part of wall on which indoor unit
is to be installed.
2. Drill two holes at a distance of 450 mm between them for the expansion bolts.
or more
from sidewall
C or more
from sidewall
mounting
plate
fasten string at the central hole
plumb
at least B from top
A
Model
1.0 T
1.5 T
Dimensions in mm
A
175
175
245
245
260
260
B
C
n Drill on the wall
Confirm the position of holes and drill holes of diameter 65 mm on the wall
18
10
Center of Hole(Ø65mm)
Insert Ruler
180mm
Align Ruler with straight line
Indoor unit terminal
Screw
Diagram
Connecting cable
Electrical box cover
Screw
Indoor unit
terminal
Fastener
Pull the Connecting cable’s
wire in completely
Connecting cable
n Connecting of cables
1. Open the front panel
2. Dismentle the electric box cover
and fastener
3. Connect the cable
4. Reassemble the fastener and electric
box cover.
Outdoor unit terminal
Connecting
cable
Connecting
cable
Outdoor unit terminal
Yellow/Green
White
Blue
Indoor unit terminal
Connect diagram
n Installation of indoor unit
After putting the pipe assembly through
the wall, attach the indoor unit to the
mounting plate on the wall as shown in
the figure.
n Installation of outdoor unit
• The connecting cables must be clipped together.
• Special cable to be used to connect indoor unit and outdoor unit.
• The electric box cover must be mounted on its position on outdoor unit.
Mounting Plate
Rib of indoor unit
Bottom
Indoor unit
To Next Page
