Getting to Know the ABX-N300
The page numbers in parentheses show where you can find the main explanation for each item.
a Slide cover
Close the slide cover when transporting the
ABX-N300 or when not using the dock.
b iPod/iPhone dock (9, 16)
Insert your iPod/iPhone here.
c Display
d MENU button (17, 19)
This button displays the menu, or returns to the
previous screen.
e []/[] buttons (17, 18, 20)
When the menu is displayed, use these buttons to
select a menu item.
f ENTER button (17– 20)
Press this button to confirm a setting you’ve made in
a menu, etc.
g [] button (19)
This button takes you back to the previous menu.
h [] button (20)
This button stops playback.
i [/] button (16, 20, 22)
This button starts playback on the iPod/iPhone.
Pressing this during playback will pause the
playback.
j INPUT button (14, 17, 18, 20, 22)
This button selects the source that will be heard.
k VOL []/[] buttons (14)
These buttons adjust the volume.
l ON/STANDBY []button (14, 22)
This button switches the power between on/standby.
m Network standby indicator (30)
If the standby mode is set to “Network,” this
indicator will light orange when the ABX-N300 is
in standby mode.
n Stand
o Downlike (14)
This will be lit when the power is on, and unlit in
standby mode.

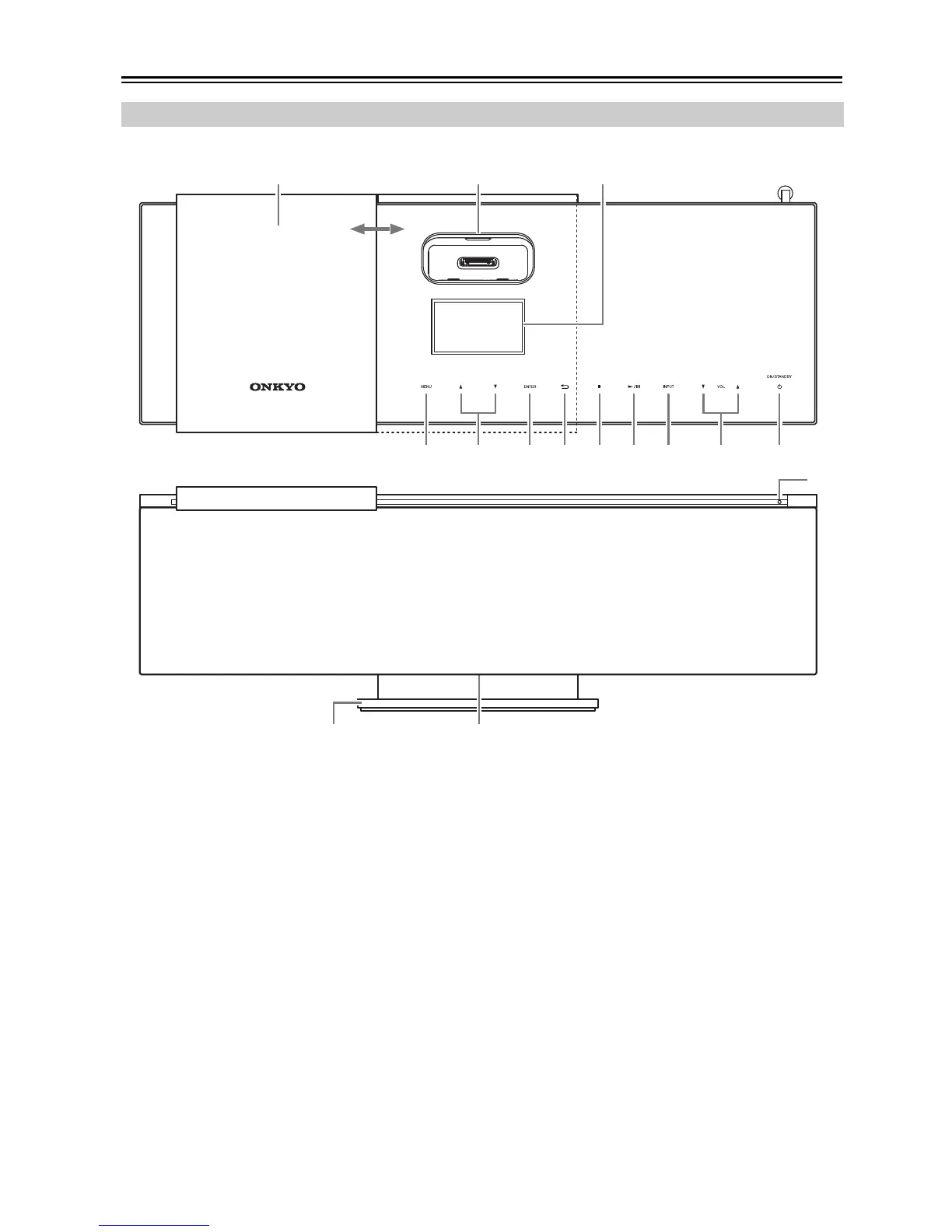

Top/Front Panel
1
4 6 7 8 9 j l
n
2 3
5 k
m
o
Open
Close

Onkyo ABX-N300 Specifications

Power

power supply	AC 100 V-240 V, 50/60 Hz
power consumption	38 W
stand-by power consumption	0.7 W

Amplifier

power output	2ch × 10 W
resistance	6 Ω
frequency	1 kHz

Speakers

type	Full-Range bass reflex
unit	6 cm cone
shielding	magnetically shielded

Weight and Dimensions

dimensions	430 × 131 × 148 mm
weight	2.6 kg
