Getting to Know the ABX-N300—Continued
The page numbers in parentheses show where you can find the main explanation for each item.
a Wireless LAN antenna (13, 27)
Unfold this antenna if you’re connecting to the
network wirelessly.
b ETHERNET port (13, 28)
Connect your Ethernet cable here if you’re
connecting to the network via a cable.
c []Headphones jack (13, 15)
You can connect the stereo mini-plug of your
headphones here.
d LINE IN jack (13)
Use a commercially available stereo mini-plug
audio cable to connect an external device’s audio
output to this jack. This allows the ABX-N300 to
play back audio from a device such as a portable
audio player, game device, television, or record
player with built-in phono equalizer.
e AC adapter jack (DC IN 16V 3A) (13)
Connect the included AC adapter here.
f Rocketboost™ Module Slot
(North American models only) (22)
Insert Rocketboost Wireless Card here if you’re
using the Rocketboost wireless digital audio.

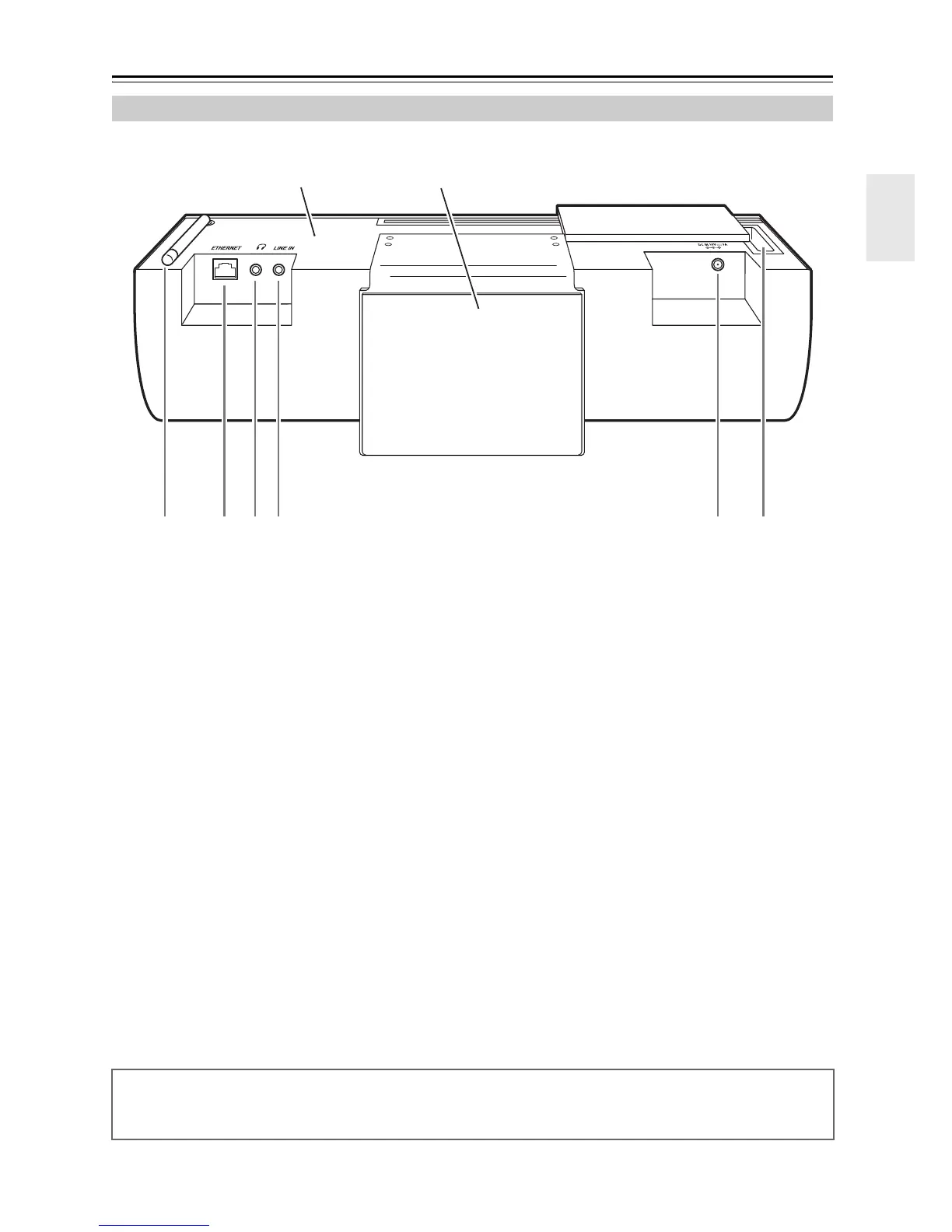

Rear Panel
1 2 435
6
Rear Panel
Bottom
About Installation
The ABX-N300 features a speaker bass reflex duct on each side panel. Allow a space of 20 cm or more on each side
to avoid blocking the bass sound.

Onkyo ABX-N300 Specifications

Power

power supply	AC 100 V-240 V, 50/60 Hz
power consumption	38 W
stand-by power consumption	0.7 W

Amplifier

power output	2ch × 10 W
resistance	6 Ω
frequency	1 kHz

Speakers

type	Full-Range bass reflex
unit	6 cm cone
shielding	magnetically shielded

Weight and Dimensions

dimensions	430 × 131 × 148 mm
weight	2.6 kg
