AVX-390
5.1-CHANNEL HOME CINEMA RECEIVER/SPEAKER PACKAGE
H
DMI
®
S
upport for 3D Video and Audio
R
eturn Channel
T
he four HDMI inputs on the AVX-390’s A/V receiver let
you simultaneously connect high-def sources such as a Blu-
r
ay player, a game console, and a cable/satellite tuner. A
single output then sends a pristine signal to your connected
h
igh-resolution display. The HDMI implementation on this
r
eceiver supports both 3D video and an Audio Return
Channel. 3D video brings exciting possibilities to home
e
ntertainment, with movie, game, and broadcast content on
the increase and 3D-compatible TVs coming to market.
Meanwhile, the Audio Return Channel allows audio content
r
eceived directly by your HDTV’s tuner to be sent
“upstream” via HDMI to your A/V receiver, without the
n
eed for a separate S/PDIF audio cable.
Decoding of High-Definition Surround-Sound
C
odecs
T
he AVX-390’s A/V receiver can decode Dolby
®
T
rueHD
and DTS-HD Master Audio
™
—two lossless formats that
e
nable delivery of a bit-for-bit soundtrack identical to the
studio master track. These codecs take advantage of the
high data capacity of the Blu-ray Disc format.
C
onvenient Overlaid On-Screen Display via HDMI
Changing your A/V receiver’s settings is now more seamless
than ever, thanks to Onkyo’s overlaid On-Screen Display
(
OSD) feature. On-screen set-up menus appear overlaid on
the video image you’re watching. This means you can adjust
the settings immediately, without having to switch back and
f
orth from a blank screen background.
192 kHz/24-Bit TI Burr-Brown DACs Improve
J
itter Performance to Deliver Clearer Sound
H
igh-quality Burr-Brown DACs work to optimize analog
audio performance on the AVX-390’s A/V receiver. These
D
ACs perform advanced 24-bit signal processing and
support sampling rates of up to 192 kHz, while displaying
high resistance to clock jitter.
Audyssey Technologies to Optimize the Listening
Experience
T
he AVX-390 comes with two sound-enhancing Audyssey
technologies.
(1) Audyssey Dynamic EQ
®
maintains a consistent bass response,
t
onal balance, and surround-sound effect at different volume levels,
so you can enjoy the natural dynamics of your content regardless of
the volume.
(2) Audyssey Dynamic Volume
®
automatically compensates for
volume fluctuations in different audio content—for example, during
commercial breaks—while optimizing the dynamic range.
Universal Port for Single-Cable Connection of
Optional Onkyo Dock for iPod/iPhone or DAB+
Radio Tuner
A proprietary Universal Port located on the rear side of
the AVX-390’s A/V receiver lets you connect an optional
UP-A1 Dock for iPod/iPhone or UP-DT1 DAB+ Radio
Tuner. A key advantage of the Universal Port is that it
accepts video and audio signals through the same cable
that sends a power supply from the receiver to the devices.
Net result: more connectivity, less cable clutter.
General
Power Supply AC 230 V~, 50 Hz
Power Consumption 320 W
Dimensions (W x H x D) 435 x150 x 328 mm
Weight 7.5 kg
S
PEAKER SYSTEM
Speaker Type
Front Full-range, Bass reflex
Center Full-range, Bass reflex
Surround Full-range, Bass reflex
Subwoofer Bass reflex
D
rivers
Front 8 cm cone
Center 8 cm cone
Surround 8 cm cone
Subwoofer 16 cm cone
F
requency Response
Front 80 Hz–20 kHz
Center 80 Hz–20 kHz
Surround 80 Hz–20 kHz
Subwoofer 30 Hz–150 Hz
O
utput Sound Pressure Level
Front 81 dB/W/m
Center 82 dB/W/m
Surround 81 dB/W/m
Subwoofer 82 dB/W/m
Max. Input Power
Front/Center/Surround 120 W
Subwoofer 130 W
Nominal Impedance Front/Center/Surround/Subwoofer
6 Ω
G
eneral
D
imensions (W x H x D)
Front 101 x 175 x 116 mm
Center 273 x 101 x 106 mm
Surround 101 x 175 x 116 mm
Subwoofer 211 x 425 x 381 mm
Weight
Front 0.8 kg
Center 1.0 kg
Surround 0.7 kg
Subwoofer 5.5 kg
CARTON
Dimensions (W x H x D) 566 x 682 x 480 mm
W
eight 21.5 kg
Supplied Accessories
• Indoor FM antenna • AM loop antenna
•
Color-coded speaker cable • Subwoofer cable
• Instruction manual • Quick set-up guide • Remote controller
• AA (R6) batteries x 2
Due to a policy of continuous product improvement, Onkyo reserves the right to change specifications and appearance without notice. Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. DTS,
DTS-HD, and the Symbol are registered trademarks and the DTS logos are trademarks of DTS, Inc. Manufactured under license from Audyssey Laboratories, Inc. U.S. and foreign patents pending. Audyssey Dynamic EQ and Audyssey Dynamic Volume are registered trademarks of
Audyssey Laboratories, Inc. HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other
countries. x.v.Color is a trademark of Sony Corporation. Music Optimizer, CinemaFILTER, and Theater-Dimensional are trademarks of Onkyo Corporation. All other trademarks and registered trademarks are the property of their respective holders.
NPR No. 11N10 01/11
SPECIFICATIONS
A/V RECEIVER
A
mplifier Section
Power Output
Front L/R 100 W/Ch
(6 Ω, 1 kHz, 1%, 1 channel driven, IEC)
Center 100 W
(6 Ω, 1 kHz, 1%, 1 channel driven, IEC)
Surround L/R 100 W/Ch
(6 Ω, 1 kHz, 1%, 1 channel driven, IEC)
Subwoofer 100 W/Ch
(6 Ω, 1 kHz, 1%, 1 channel driven, IEC)
Dynamic Power 160 W (3 Ω, Front)
125 W (4 Ω, Front)
85 W (8 Ω, Front)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz–20 kHz, half power)
Damping Factor 60 (Front, 1 kHz, 8 Ω)
Input Sensitivity and Impedance
200 mV/47 kΩ (Line)
Rated RCA Output Level and Impedance
200 mV/2.2 kΩ (Rec out)
Maximum RCA Output Level and Impedance
2.0 V/2.2 kΩ (Rec out)
Frequency Response 20 Hz–50 kHz/+1 dB, -3 dB (DSP bypass)
Tone Control ±10 dB, 50 Hz (Bass)
±10 dB, 20 kHz (Treble)
S
ignal-to-Noise Ratio 100 dB (Line, IHF-A)
Speaker Impedance 6 Ω–16 Ω
Video Section
I
nput Sensitivity/Output Level and Impedance
Video 1.0 Vp–p/75 Ω (Component Y)
0.7 Vp–p/75 Ω (Component P
B/CB, PR/CR)
1.0 Vp–p/75 Ω (Composite)
Component Video Frequency Response
5 Hz–100 MHz/0 dB, -3 dB
Tuner Section
Tuning Frequency Range
FM 87.5 MHz–108 MHz
AM 522 kHz–1,611 kHz
530 kHz–1,710 kHz
FM/AM Preset Memory 40 stations

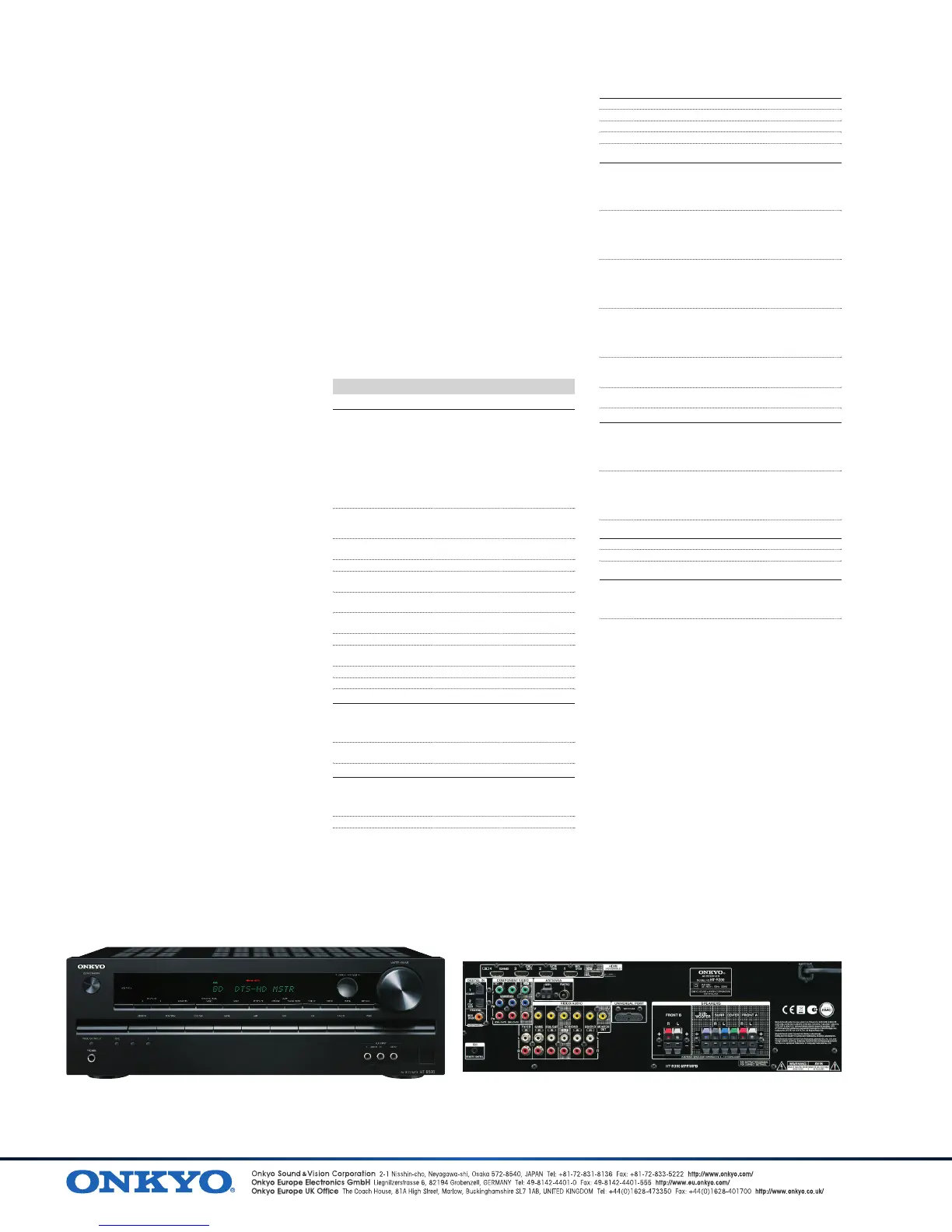

Front view Rear view
HT-R390
E
X.Bass for Deeper, More Dynamic Bass
Onkyo’s proprietary EX.Bass function boosts low-frequency
o
utput at two separate points: 40 Hz and 80 Hz. At low
volumes, EX.Bass creates a deeper, more dynamic bass
sound for your music and movies. When the volume is
t
urned up high, the boosted bass automatically returns to
normal levels.
A
dvanced Music Optimizer to Enhance
C
ompressed Digital Music Files
While MP3 or AAC files may sound fine through the
h
eadphones of your portable digital player, the limitations of
these files can be exposed when played back through a
q
uality home entertainment system. This is because a
significant amount of high-frequency bit information is lost
during the file-compression process. To counter this, Onkyo
h
as designed the Advanced Music Optimizer to
compensate for lost bit information and improve the quality
o
f compressed audio signals. This results in a clearer and
m
ore expansive sound. Also included in this technology is a
loudness correction feature that further improves the audio
c
haracter of compressed files.
