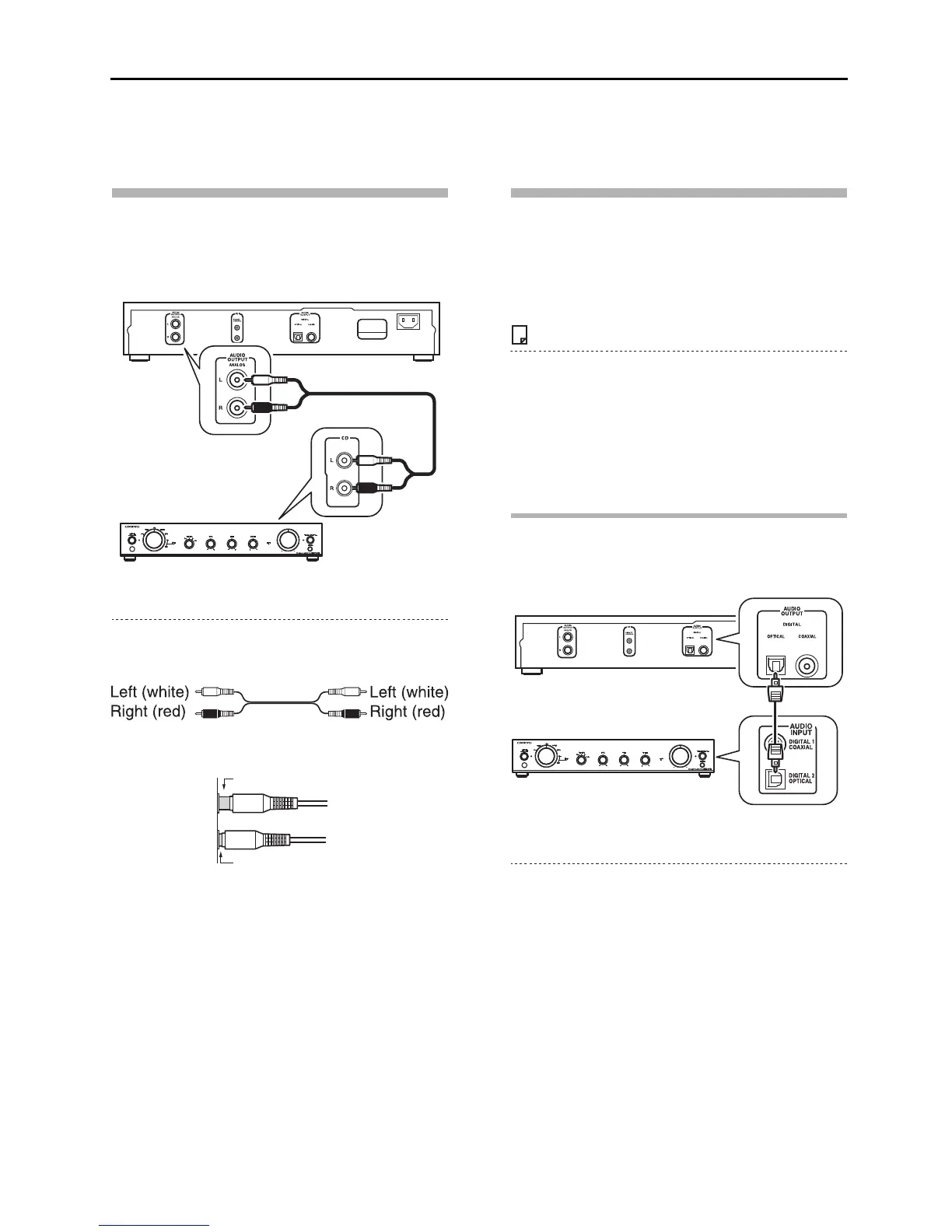

Connecting to Other Devices
14
Connect to amplifiers, recording devices, and other equipment. There are two ways of connecting: analog and digital.
Select the connection type matching the type of audio you wish to enjoy.
Analog Connections
Connect the supplied audio cable to the unit's AUDIO
OUTPUT ANALOG terminal and the audio
component's analog audio in terminal.
- Take care of the plug colors and the left and right channels
when connecting audio.
- Insert plugs completely to ensure good connections. Loose
connections can cause noise or malfunctions.
- To prevent interference, keep audio cables away from
power cords and speaker cables.
Digital Connections
Use digital connections with audio components having
digital audio in terminals. There are two types of
digital audio out terminal: "OPTICAL" and
"COAXIAL." Use the connection method that is suited
to the component being connected.
Notes
- The audio output is the same for both OPTICAL and
COAXIAL.
- To output digital audio, turn on the unit's DIGITAL OUT
switch.
- If DIGITAL OUT is on (the DIGITAL OUT indicator on the
unit is illuminated) while a Super Audio CD is playing, digital/
analog audio will be output at PCM 44.1kHz/16 bits.
OPTICAL
Connect the unit's OPTICAL terminal and the audio
component's OPTICAL jack using a commercial
optical digital cable.
!
Caution
Plug optical digital cables straight in. Plugging them in at an
angle can damage the inlet of the OPTICAL terminal.
C-S5VL
To Next Page
