Onkyo C-S5VL Instruction Manual

Setup—Continued
28

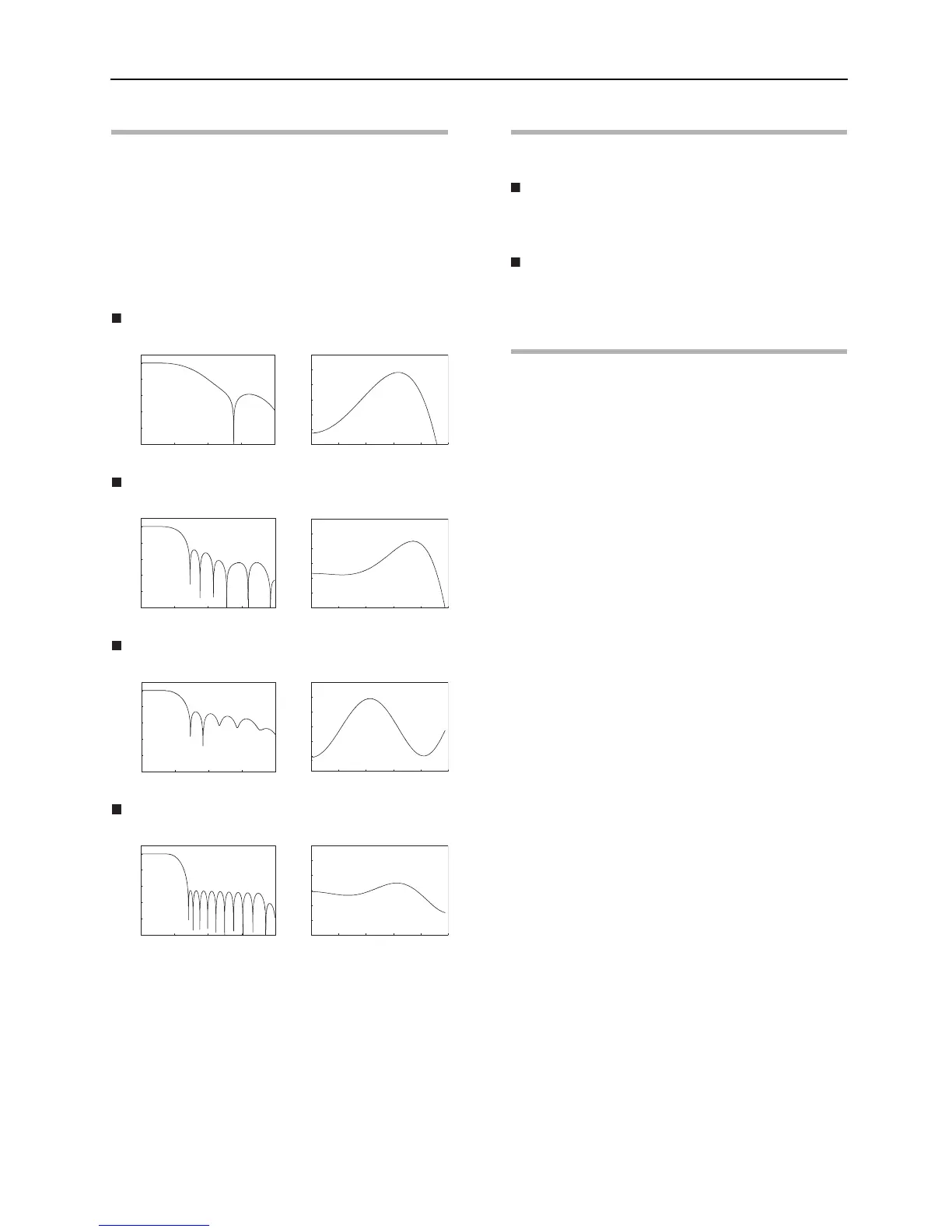

DSD FILTER
When using analog output while playing a Super Audio
CD, you can apply a digital filter to the DSD data
before it is passed through the D/A converter.
The digital filter can switch the properties in the
audible or inaudible frequency ranges.
Select the setting that you prefer.
The default setting is DIRECT.
When a Super Audio CD is playing, this setting is
enabled when the unit's DIGITAL OUT is switched off.
FIL 1
FIL 2
FIL 3
FIL 4
PHASE
Set whether to invert the phase of the analog output.
NORMAL (Default setting)
This outputs the waveform recorded on the CD with
the phase unchanged.
INVERT
This outputs the waveform recorded on the CD with
the phase inverted 180°.
AREA PRIORITY
Select the area to get priority for playback when a
Super Audio CD hybrid disc is played. The default
setting is SACD.
Frequency (kHz)
Response (dB)
Frequency (kHz)
Response (dB x 10
-3
)
Frequency Response
Ripple Characteristic
-100
-80
-60
-40
-20
0
0
100
200
-15
-10
-5
0
5
10
15
0
10 20
Frequency (kHz)
Response (dB)
Frequency (kHz)
Response (dB x 10
-3
)
Frequency Response
Ripple Characteristic
-100
-80
-60
-40
-20
0
0
100
200
-15
-10
-5
0
5
10
15
0
10 20
Frequency (kHz)
Response (dB)
Frequency (kHz)
Response (dB x 10
-3
)
Frequency Response
Ripple Characteristic
-100
-80
-60
-40
-20
0
0
100
200
-15
-10
-5
0
5
10
15
0
10 20
Frequency (kHz)
Response (dB)
Frequency (kHz)
Response (dB x 10
-3
)
Frequency Response
Ripple Characteristic
-100
-80
-60
-40
-20
0
0
100
200
-15
-10
-5
0
5
10
15
0
10 20

Onkyo C-S5VL Specifications

General

Frequency range	4 - 50000 Hz
Audio formats supported	MP3, WMA
Total Harmonic Distortion (THD)	0.0025 %
Built-in speaker(s)	No
CD-RW playback	Yes
Device type	HiFi CD player
Product color	Silver
Disc loading type	Tray
Number of optical discs	1 discs
Volume control	Rotary
Headphone outputs	1
Power consumption (typical)	16 W
Package depth	448 mm
Package width	562 mm
Package height	212 mm
Package weight	7000 g

Weight and Dimensions

Depth	318 mm
Width	435 mm
Height	80 mm
Weight	4500 g
