Onkyo CR-305FX Instruction Manual

6

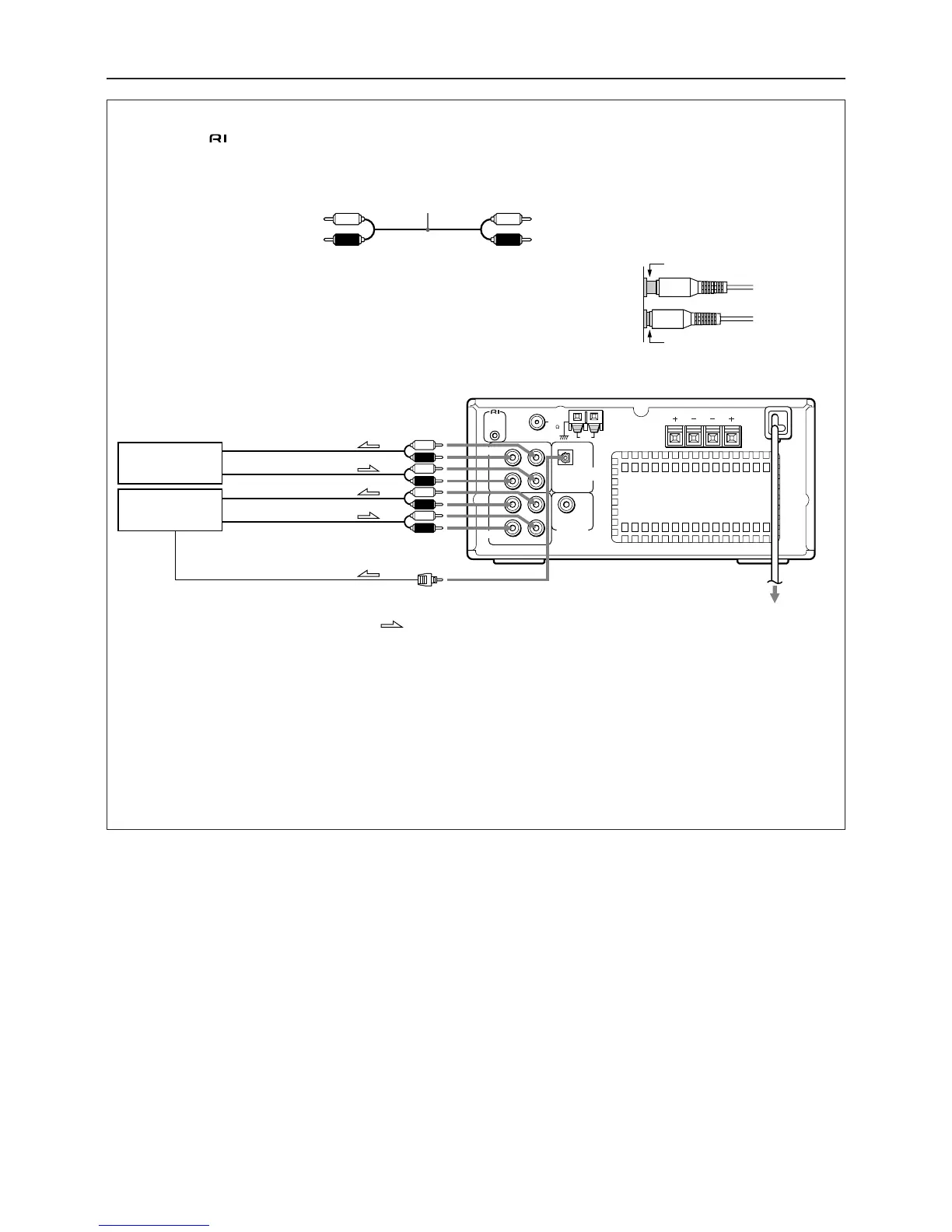

Audio equipment connections
• Do not connect the AC power cord (mains lead) to the wall outlet (the mains) until you have completed all the other connections
including the
connections on page 7, and the speaker connections on page 8.
• On each pair of connectors, a red connector (marked R) corresponds to the right channel, and a white connector (marked L) to the left
channel. Connect white plugs of audio connection cables to L connectors and connect red plugs of audio connection cables to R
connectors .
• Please refer to the instruction manual for each component when you make any connec-
tions.
• Insert the plug securely. If the connection is incomplete, noise or malfunction may result.
To L connector ← (White)
To R connector ← (Red)
Audio connection cable
(White) → To L connector
(Red) → To R connector
Improper connection
Insert completely
L
RL
RL
REMOTE
CONTROL
OPTICAL
SPEAKERS
TAPE
CDR
DIGITAL
OUTPUT
SUBWOOFER
PRE OUT
ANTENNA
AM
FM
75
R
OUT
(
REC
)
(
PLAY
)
IN
OUT
(
REC
)
(
PLAY
)
IN
About the OPTICAL DIGITAL OUTPUT connector
• An optical digital audio input equipped CD recorder may be
connected with an optical fiber audio cable for digital record-
ing of this unit.
Stereo cassette
tape deck
CD recorder
INPUT (REC)
OUTPUT (PLAY)
INPUT (REC)
OUTPUT (PLAY)
DIGITAL OPTICAL INPUT
: Signal flow
To wall outlet
