Onkyo DP-X1A User Manual

31
3 Turn on the power of the unit.
0 To copy to a microSD card, insert a
microSD card into the card slot (1 or 2).

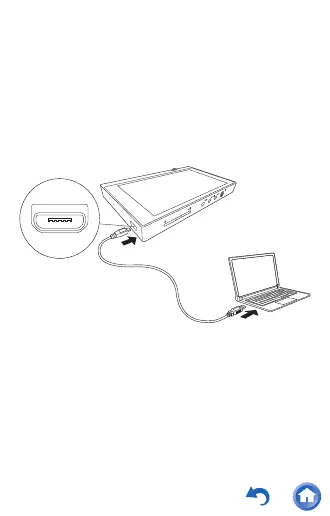

4 Connect this unit to the computer with the
supplied USB cable and start X-DAP Link.
0 Connect so the wider side of the plug is
up. You may damage the plug or jack if
you try to insert it the wrong way.
0 If the message such as "Connection of the
device is not recognized" is displayed on
the unit, close all running applications and
retry starting at step 3.

Onkyo DP-X1A Specifications

General

Internal Storage	64 GB
Operating System	Android 5.1.1
Bluetooth Codec	SBC, aptX
DAC	Dual ESS Sabre ES9018K2M
Amplifier	Dual ESS Sabre 9601K
Weight	203 g
Display	4.7 inch (1280 x 720)
External Storage	microSD (up to 256GB)
Battery	1630 mAh
Battery Life	Approx. 16 hours
Audio Formats	DSD, FLAC, ALAC, WAV, AIFF, Ogg Vorbis, MP3, AAC
DSD Support	11.2 MHz
PCM Support	384kHz/24bit
Connectivity	Wi-Fi, Bluetooth
Output	3.5mm headphone jack, 2.5mm balanced output
