Controls & Connectors—Continued
For detailed information, refer to the pages in parenthesis.
A COMPONENT VIDEO OUTPUT (17)
These RCA/phono connectors can be used to connect a
TV or projector with component video inputs.
B S VIDEO OUTPUT (17)
This connector can be used to connect a TV or projector
with an S-Video input.
C VIDEO OUTPUT (17)
This RCA/phono connector can be used to connect a TV
or projector with a composite video input.
D OPTICAL AUDIO OUTPUT (18)
This optical digital audio output can be connected to an
optical digital audio input on a hi-fi amp, AV receiver, or
surround sound decoder (Dolby Digital, DTS).
E COAXIAL AUDIO OUTPUT (18)
This coaxial digital audio output can be connected to an
coaxial digital audio input on a hi-fi amp, AV receiver, or
surround sound decoder (Dolby Digital, DTS).
F Power cord (20)
This power cord should be connected to a suitable wall
outlet.
G ANALOG AUDIO OUTPUT (17, 18)
These RCA/phono connectors can be connected to ana-
log audio inputs on a hi-fi amp, AV receiver, or surround
sound decoder (Dolby Pro Logic).
H REMOTE CONTROL (19)
These (Remote Interactive) connectors can be con-
nected to the connectors on your other Onkyo AV
components for interactive control.

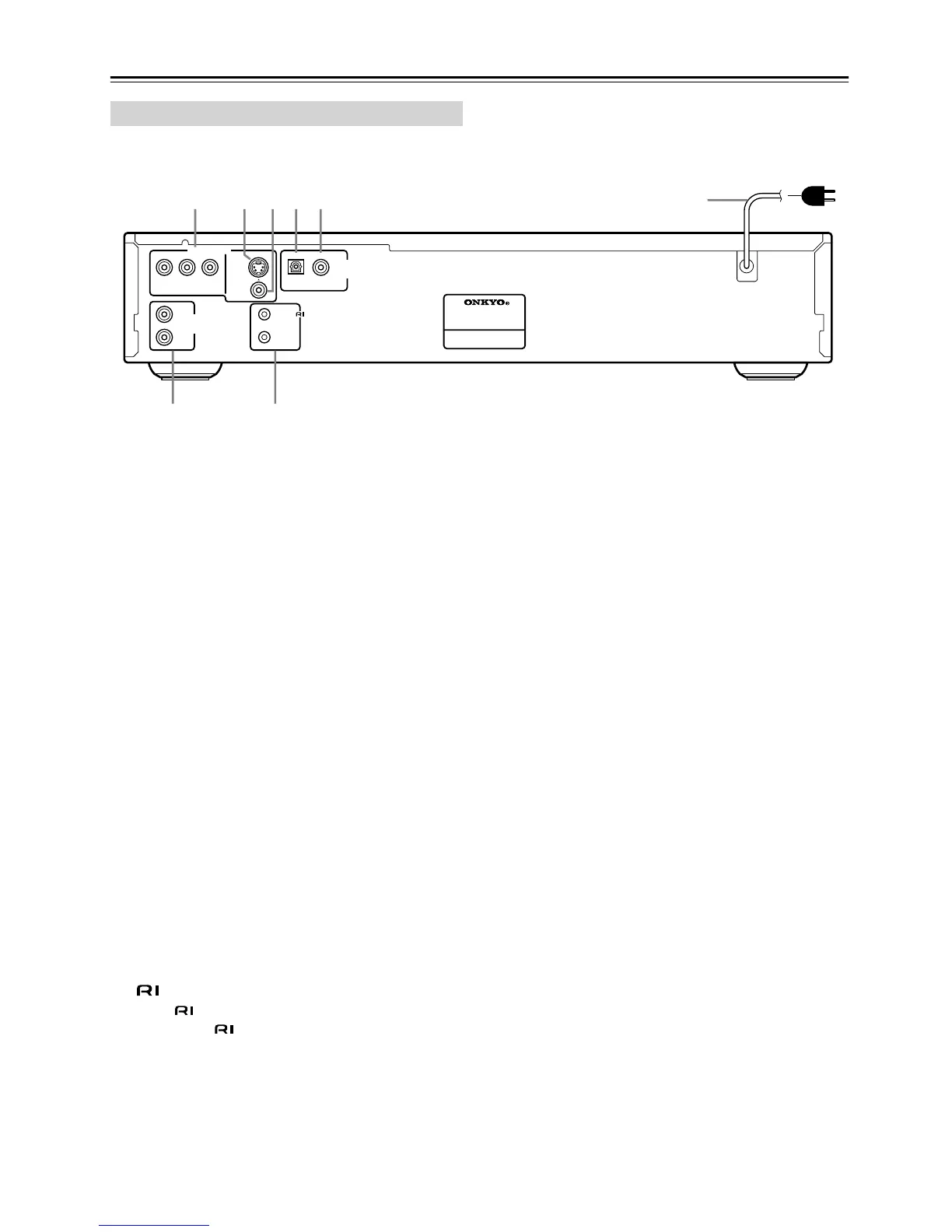

Rear Panel
DVD CHANGER
MODEL NO. DV
-
CP
701
COMPONENT
PB
PR
Y
L
R
REMOTE
CONTROL
VIDEO
OUTPUT
VIDEO
S
VIDEO
OPTICAL COAXIAL
ANALOG
AUDIO
OUTPUT
DIGITAL
AUDIO
OUTPUT
