17
Connecting the AV receiver—Continued
OTHERS

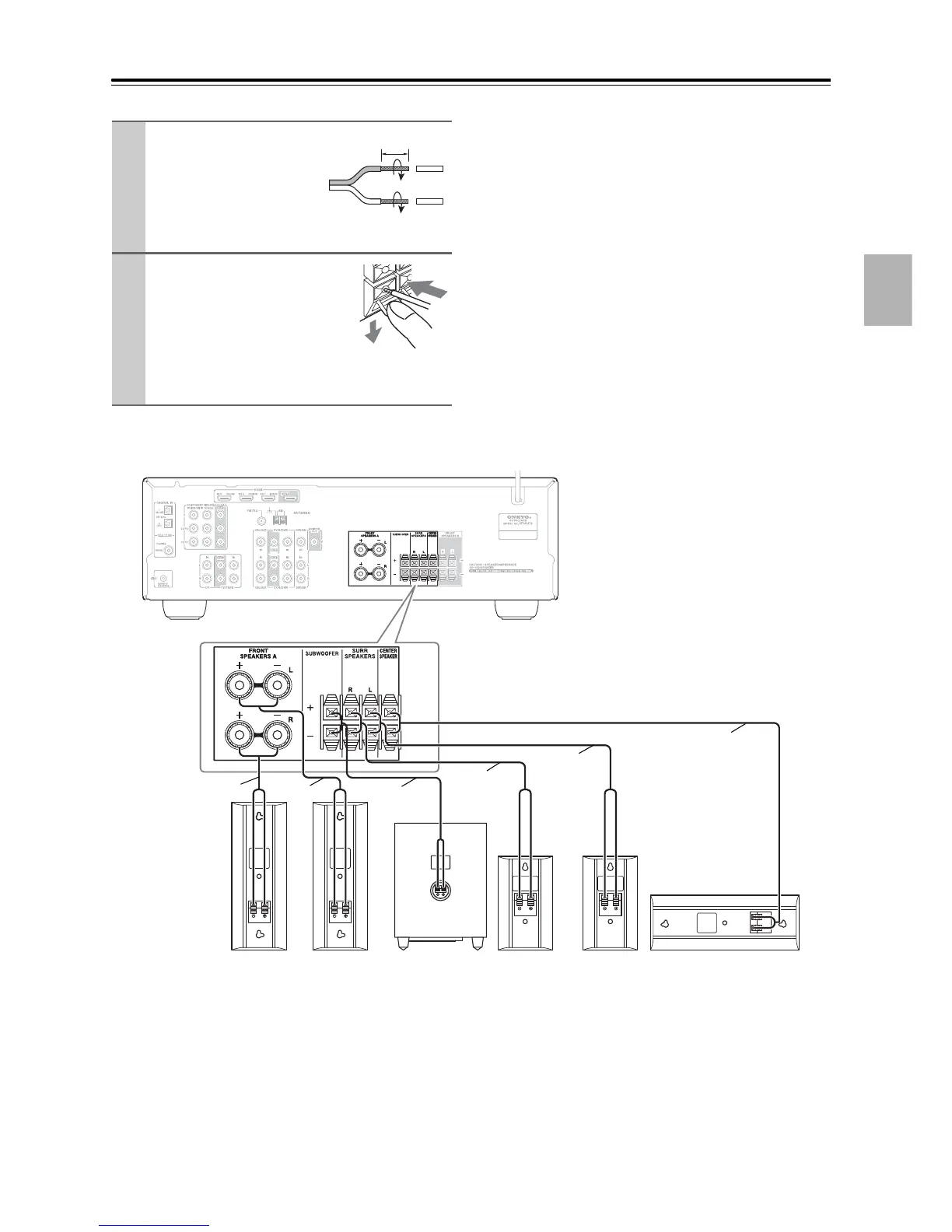

The following illustration shows which speaker should be connected to each pair of terminals.
1
Strip 3/8" (10 mm) of
insulation from the
ends of the speaker
cables. (Supplied
speaker cables are
already stripped.)
2
While pressing the lever,
insert the wire into the
hole, and then release the
lever.
Make sure that the
terminals are gripping the bare wires, not
the insulation.
3/8"(10mm)
Center
speaker
Front left
speaker
Front right
speaker
Surround
right speaker
Subwoofer
Purple
Gray
Blue
Green
WhiteRed
Surround
left speaker
To Next Page
