Connecting the AV receiver—Continued
• With connection , you can play and record.
• To connect the recorder digitally for playback, use connections and , or and .

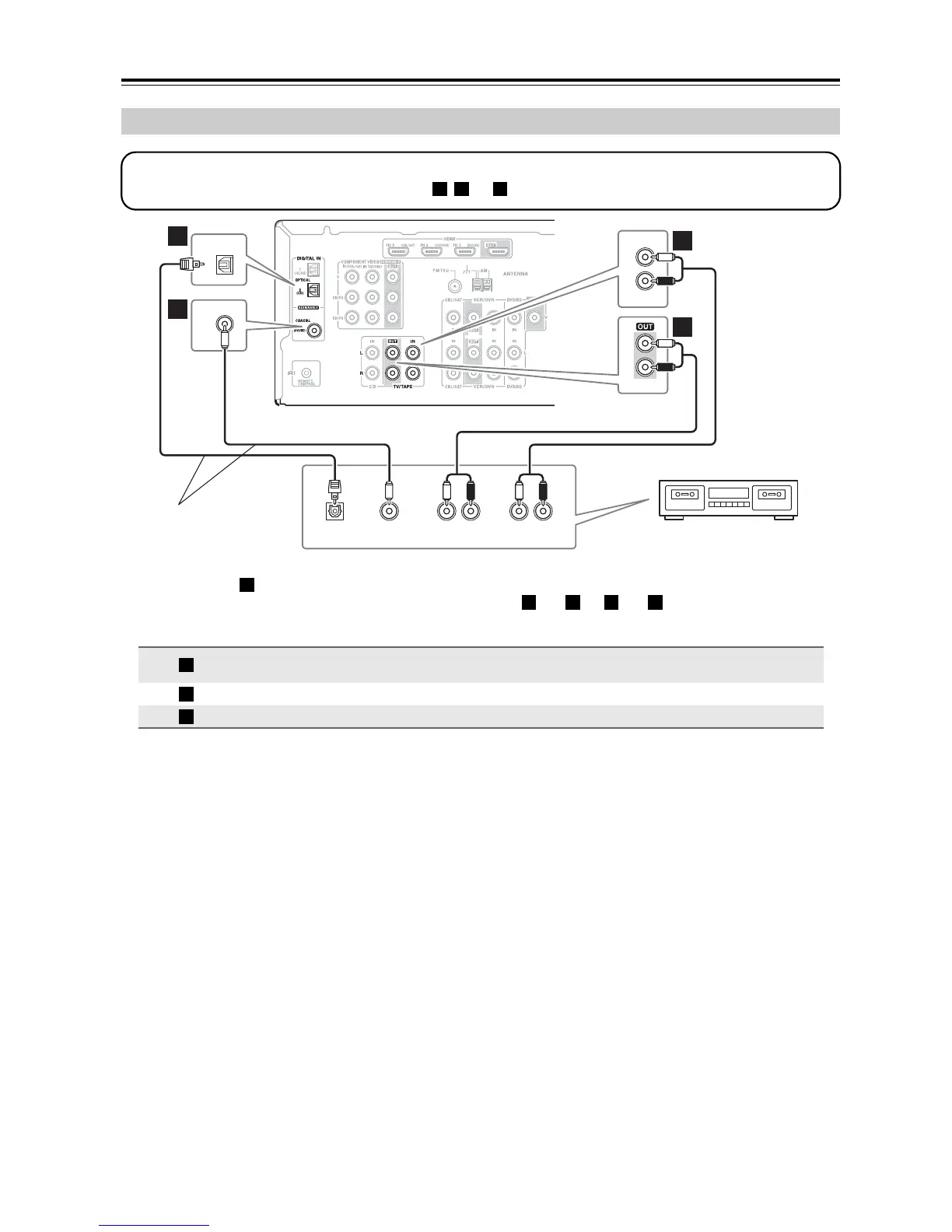

Connecting a Cassette, CDR, MiniDisc, or DAT Recorder
Connection AV receiver Signal flow Cassette, CDR, MD, or DAT recorder
TV/TAPE IN L/R
TV/TAPE OUT L/R


Analog audio L/R output
Analog audio L/R input
DIGITAL IN COAXIAL (DVD/BD)  Digital coaxial output
DIGITAL IN OPTICAL 2 (CD)  Digital optical output
COAXIAL
(DVD/BD)
OPTICAL
2
(CD)
AUDIO
IN
LR
L
R
IN
TV/TAPE
OPTICAL
OUT
COAXIAL
OUT
AUDIO
OUT
LR
L
R
TV/TAPE
c
b
a
a
Step 1:
Choose a connection that matches your recorder ( , , or ), and then make the connection.
a b c
Cassette, CDR, MD, etc.
Connect one or the other
These connections must be
assigned (see page 36)
a
a b a c
a
b
c
