Front & Rear Panels—Continued
For detailed information, see the pages in parentheses.
t Input selector buttons (38)
Select the following input sources: DVD/BD,
VCR/DVR, CBL/SAT, AUX, TV/TAPE, AM, FM,
CD.
u AUX INPUT
PORTABLE (30):
Used to connect a portable Audio player.
For detailed information, see the pages in parentheses.
a A and B speaker indicators (15, 38)
Indicator A lights up when speaker set A is on.
Indicator B lights up when speaker set B is on.
b MUTING indicator (39)
Flashes while the AV receiver is muted.
c Listening mode and format indicators (47)
Show the selected listening mode and audio input
signal format.
d Tuning indicators (43)
FM STEREO (43):
Lights up when tuned to a stereo FM station.
AUTO (43):
Lights up when Auto Tuning mode is selected for
AM or FM radio. Goes off when Manual Tuning
mode is selected.
TUNED (43):
Lights up when tuned to a radio station.
e SLEEP indicator (39)
Lights up when the Sleep function has been set.
f Message area
Displays various information.
g Audio input indicators
Indicate the type of audio input that’s selected as the
audio source: PCM.
h Audyssey indicator (54)
Lights up when the “Equalizer Settings” is set to
“Audyssey”.

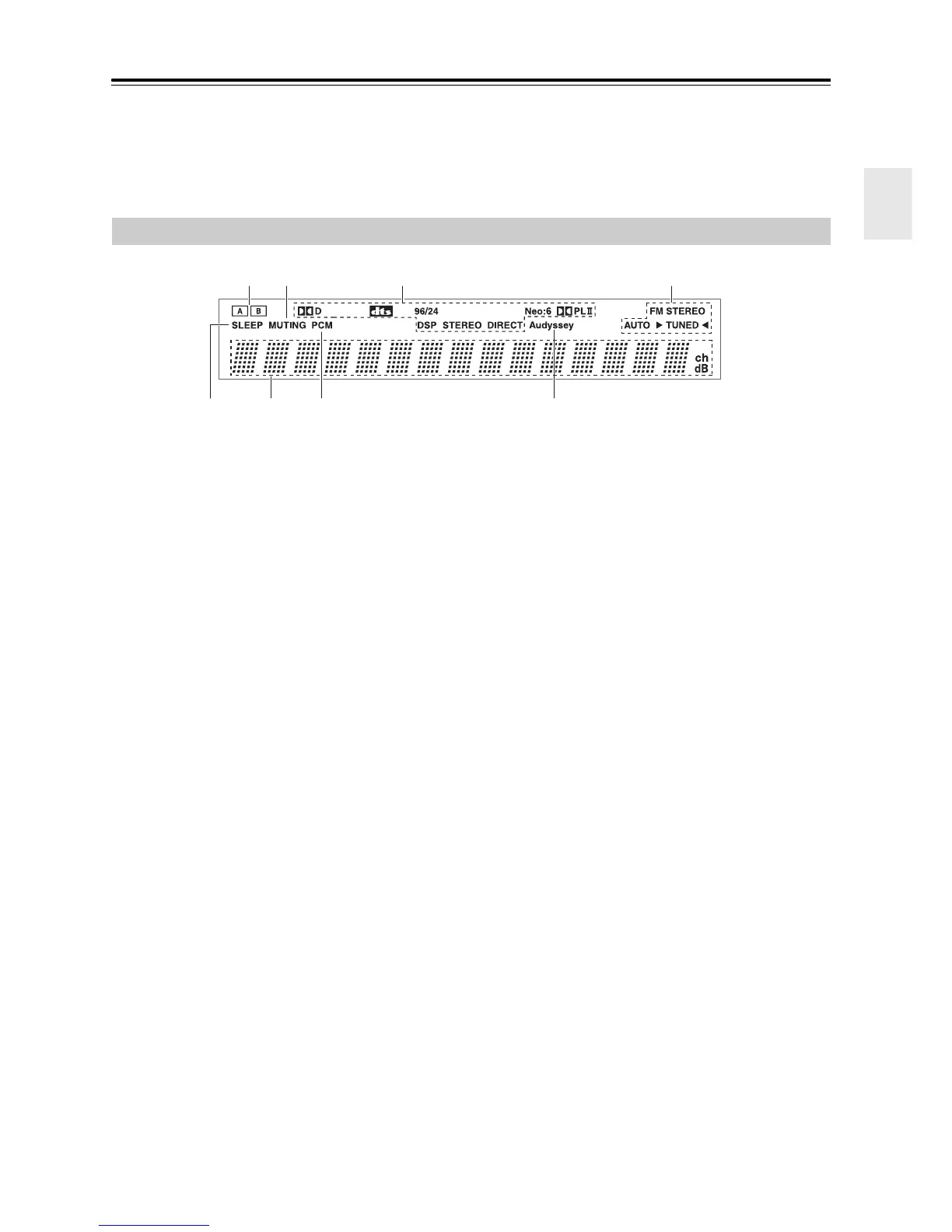

Display
